Key Fobs For Remote Keyless Entry System (TS 11 07294)

Publication date: 2004-07-29
Reference number: TS 11 07294

KEY FOBS FOR REMOTE KEYLESS ENTRY SYSTEM

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 11 07294, Date of Issue: July 29, 2004

SUZUKI:	2004- Grand Vitara/XL-7
SECTION:	BODY/CAB & ACCESSORIES

Keyless entry key fob(s) is inoperative.

Certain jolts under normal use can cause the battery terminal to loose contact with the battery on some key fobs built prior to June 10, 2003.

The battery compartment has been redesigned. Check date code inside the back of the cover of the fob, see below.

If date is before June 10, 2003 replace Fob only.
If date is June 10, 2003 or after follow the proper diagnostic procedure in the appropriate Service Manual under "Keyless Entry System Symptom Diagnosis" in order to insure correct diagnosis of the failure.

NOTE:

If transmitter is replaced be sure to reprogram the transmitter following the procedure under "Reprogramming Transmitter Code".
Do not replace the controller unless the diagnostic flow requires!

PART(S) INFORMATION:

Part Numbers	Description	Qty.	Notes
37182-50J10	Transmitter, Keyless Entry	1	Replace only the affected transmitter.

WARRANTY CLAIM INFORMATION:

Labor Operation	Description	Failed Part Number	Complaint Code	Defect Code	Labor Time
SM33RO	Replace Keyless Entry Transmitter	37182-50J10	35	36	.2hrs.

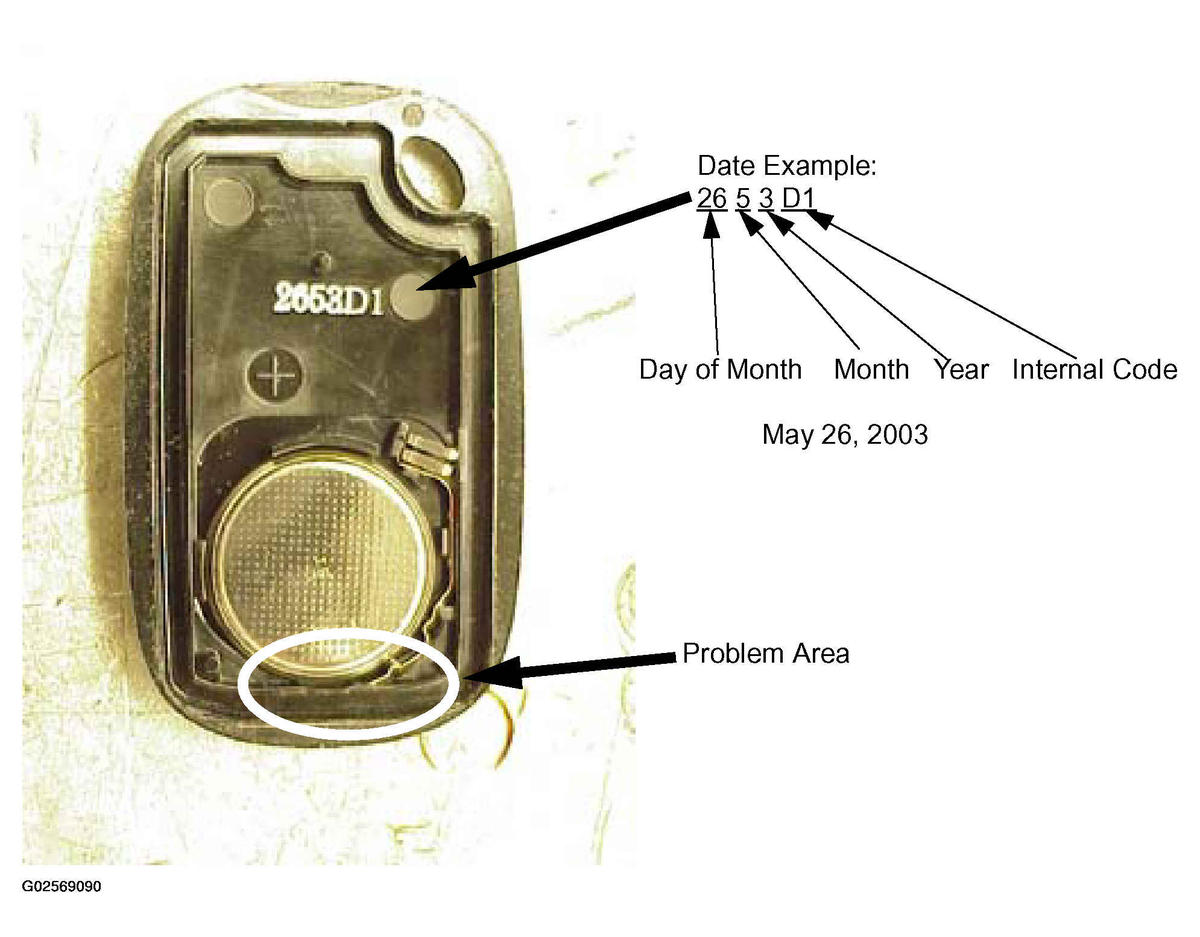

Fig 1: Keyless Entry Transmitter Problem Area

Courtesy of SUZUKI OF AMERICA CORP.

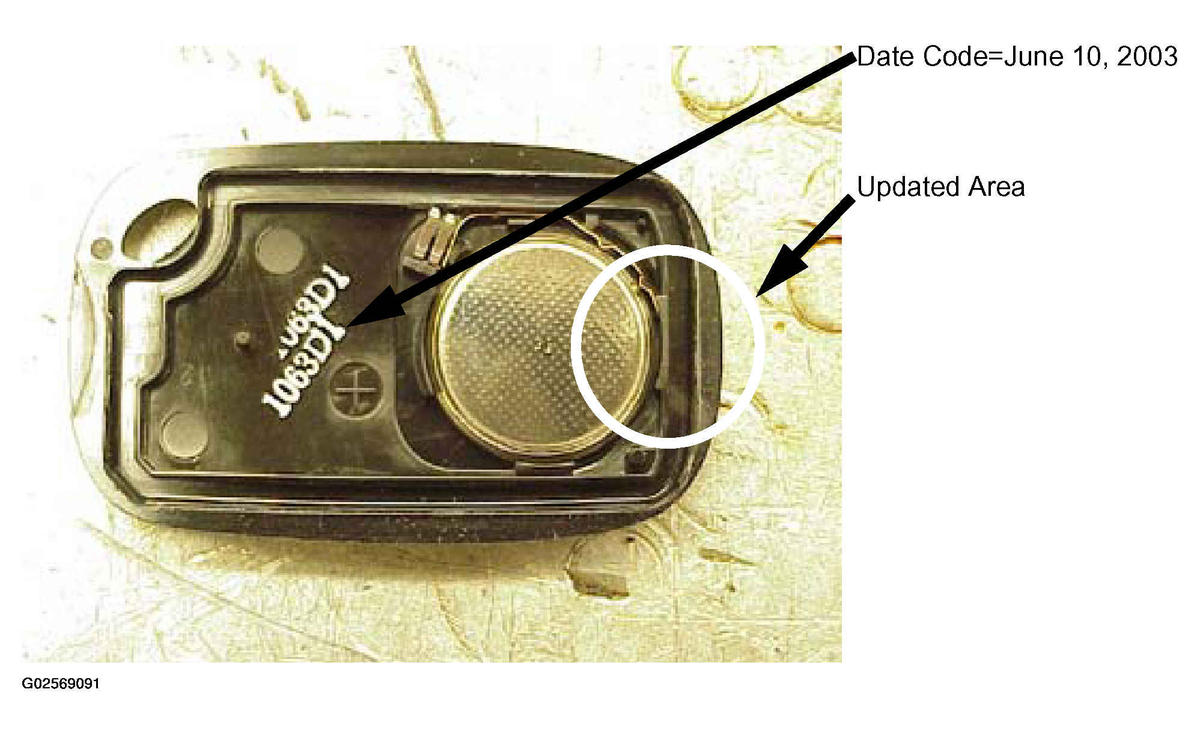

Fig 2: Keyless Entry Transmitter Updated Area

Courtesy of SUZUKI OF AMERICA CORP.
