Vehicle Speed Sensor (VSS) On-Vehicle Inspection
- Hoist vehicle.
- Release parking brake lever, set transmission in neutral and transfer in "2WD".
- Remove ECM cover.

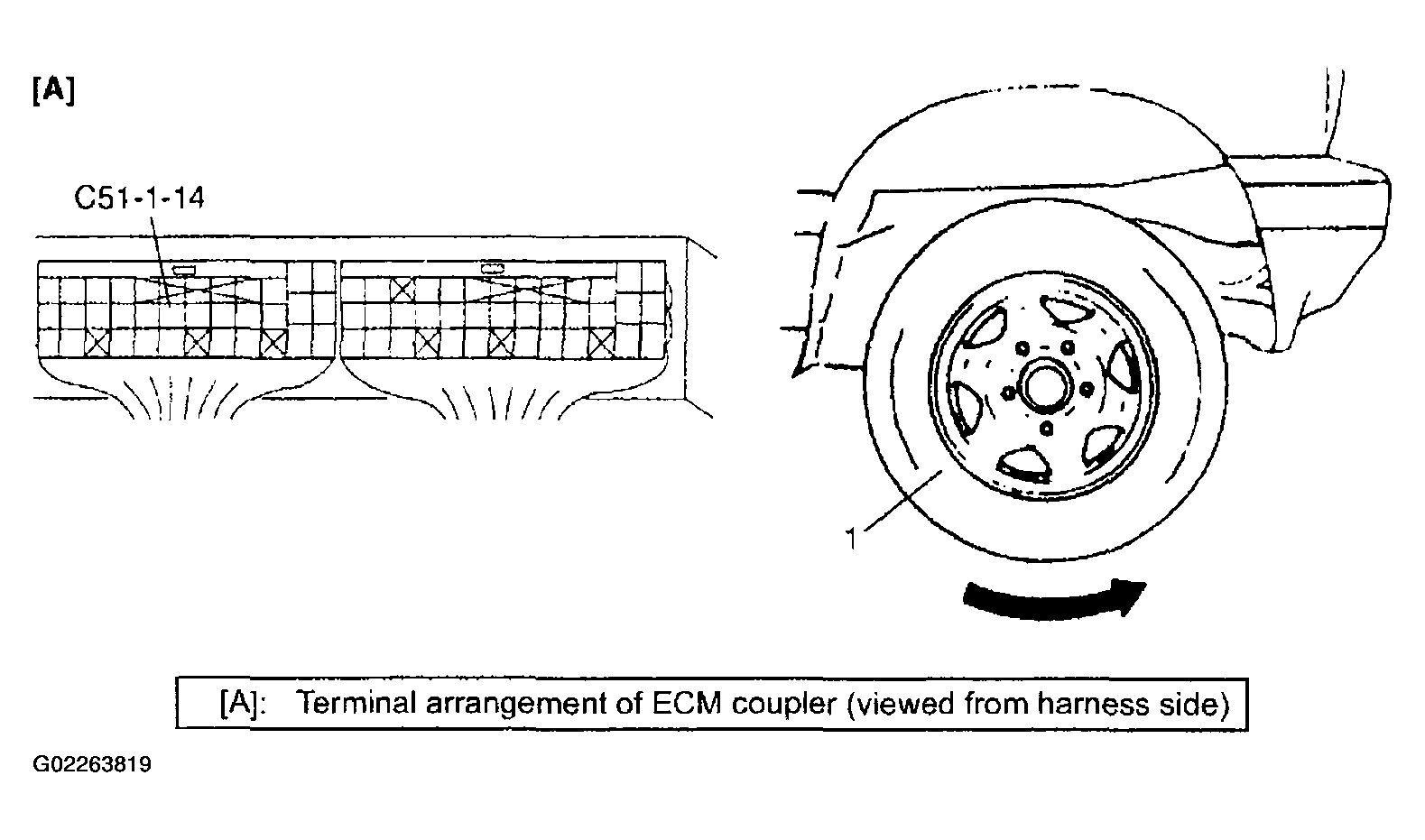

- Connector voltmeter between VSS terminal "C51-1-14" of ECM connector and body ground.
- Turn ignition switch ON and turn rear right tire slowly with rear left tire locked.
Voltmeter should indicate deflection between 0 - 1 V and 8 - 14 V a few times while tire (1) is turned one revolution. If check result is not satisfactory, proceed to DTC P0500: VEHICLE SPEED SENSOR under H27 Engine.
