Fuel Pressure Regulator Removal & Installation: Installation

Reverse removal procedure for installation noting the following.

• Use new O-ring.
• Apply thin coat of gasoline to O-ring to facilitate installation.

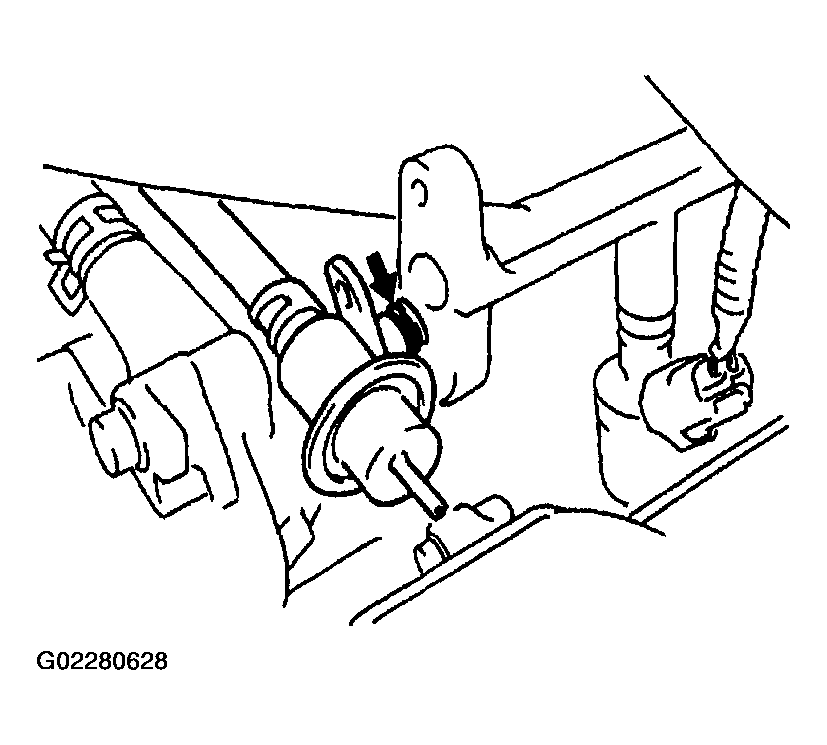

  Fig 1: Identifying New O-Ring

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten fuel pressure regulator bolts to specified torque.

  Tightening torque:

  Fuel pressure regulator bolt (a):  11 N.m (1.1 kg-m, 8.0 lb-ft)

  Fig 2: Installing Fuel Pressure Regulator

  Courtesy of SUZUKI OF AMERICA CORP.
• With engine "OFF" and ignition switch "ON", check for fuel leaks around fuel line connection.
