Engine Basic Check

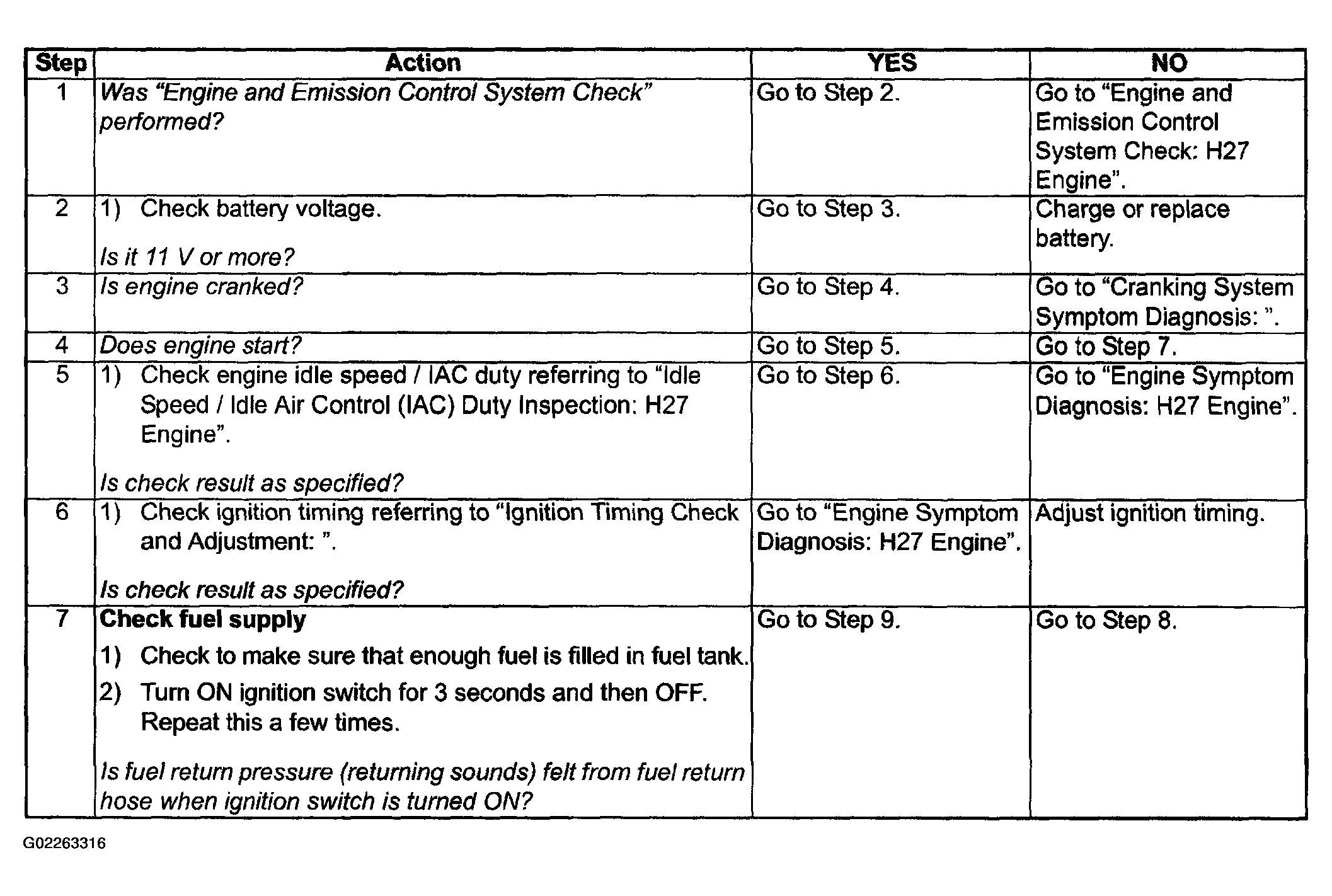

Fig 1: Engine Basic Check Chart (1 Of 2)
G02263316Courtesy of SUZUKI OF AMERICA CORP.

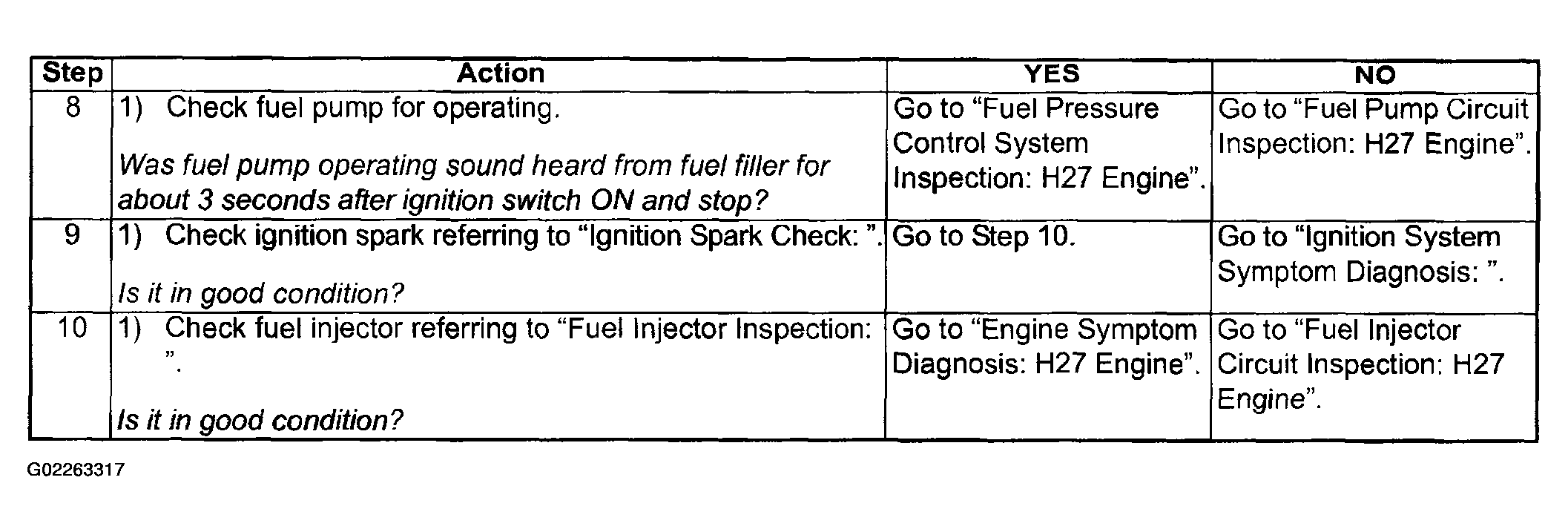

Fig 2: Engine Basic Check Chart (2 Of 2)
G02263317Courtesy of SUZUKI OF AMERICA CORP.
