DTC P0660: Intake Manifold Tuning Valve Control Circuit/Open
>>
P0660 Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0660 Troubleshooting

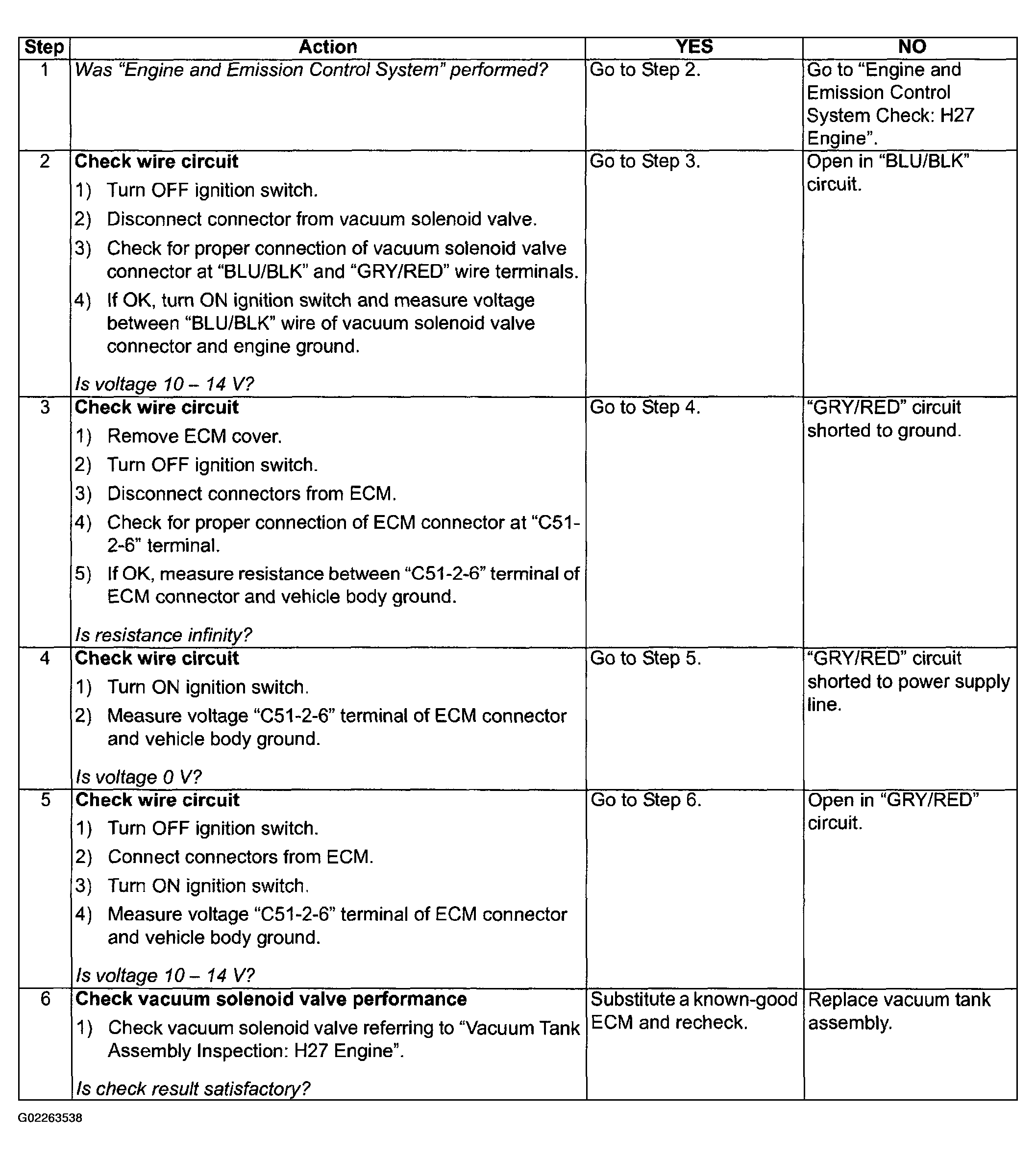

Fig 1: DTC P0660 Troubleshooting
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
