P0420 Troubleshooting

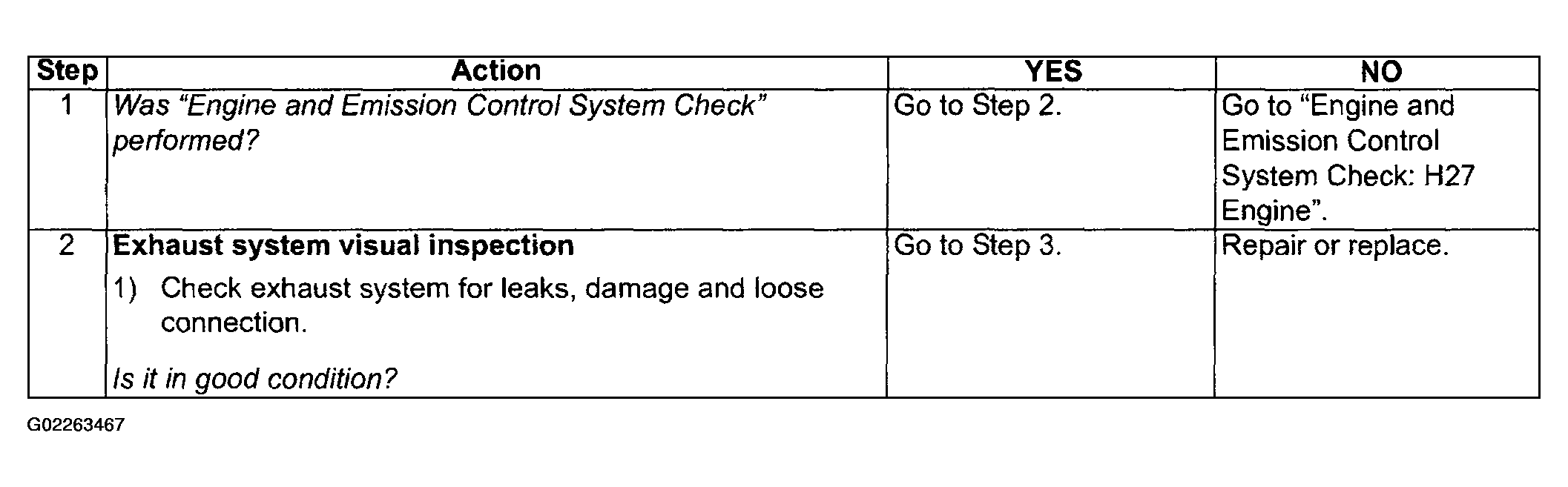

Fig 1: DTC P0420 Troubleshooting (1 Of 2)
G02263467Courtesy of SUZUKI OF AMERICA CORP.

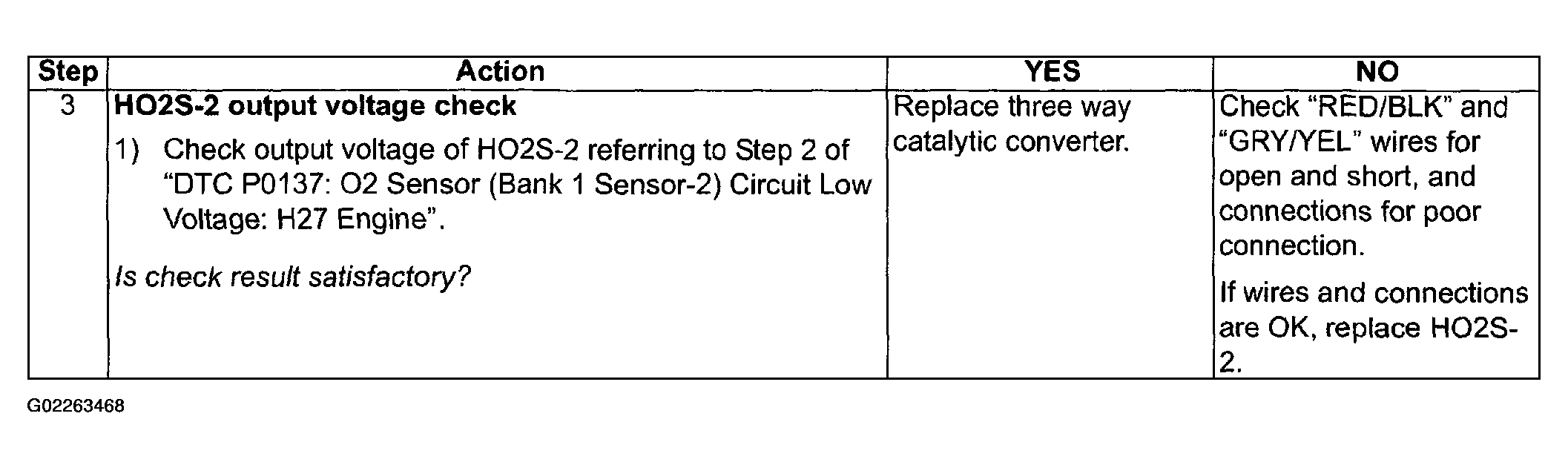

Fig 2: DTC P0420 Troubleshooting (2 Of 2)
G02263468Courtesy of SUZUKI OF AMERICA CORP.
