Engine & Emission Control System Diagram

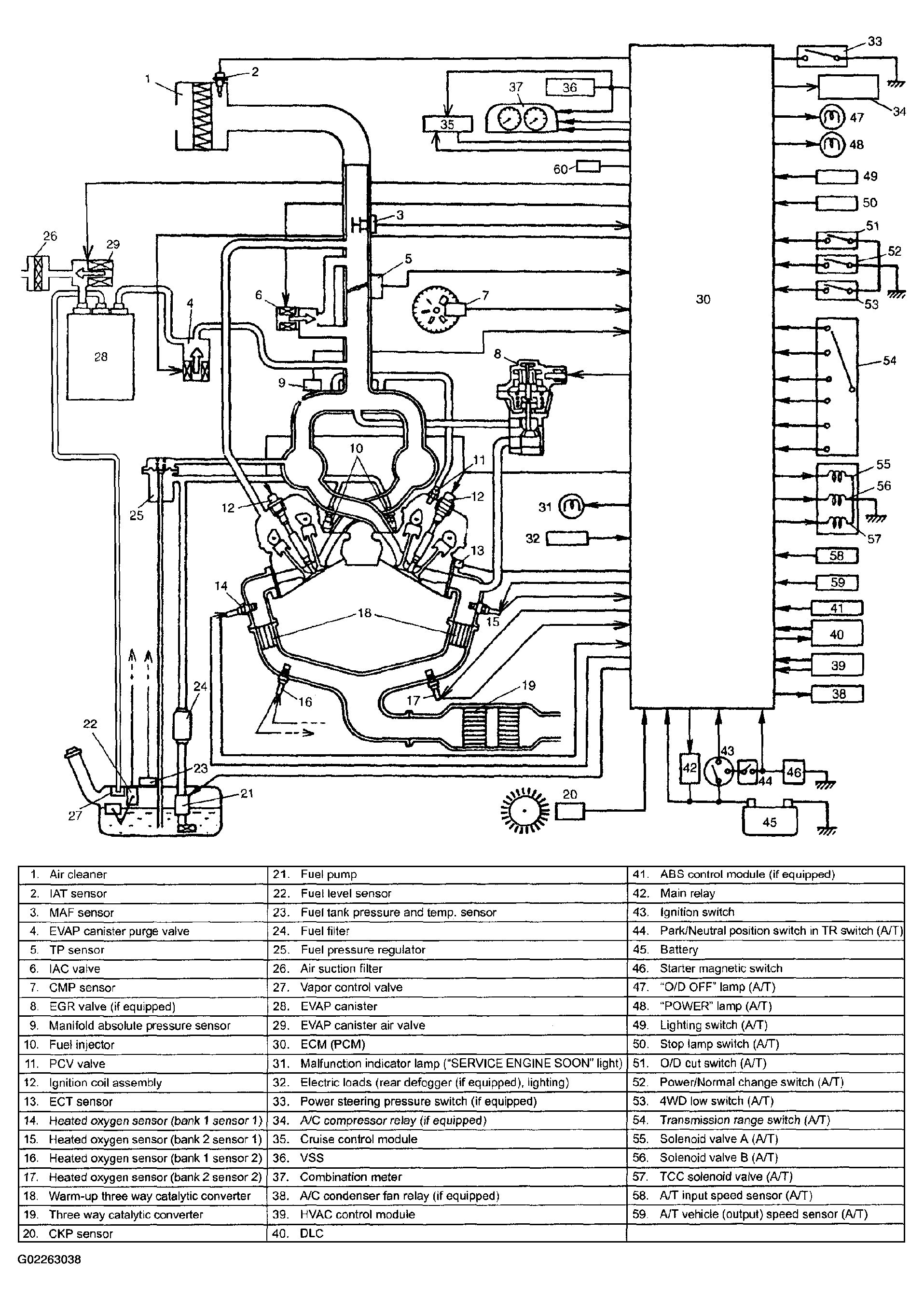

Fig 1: Engine & Emission Control System Schematic & Routing Diagram
G02263038Courtesy of SUZUKI OF AMERICA CORP.
