System Diagram

Special tool

(A):  09912-58441

(B):  09912-58431

(C):  09919-46010

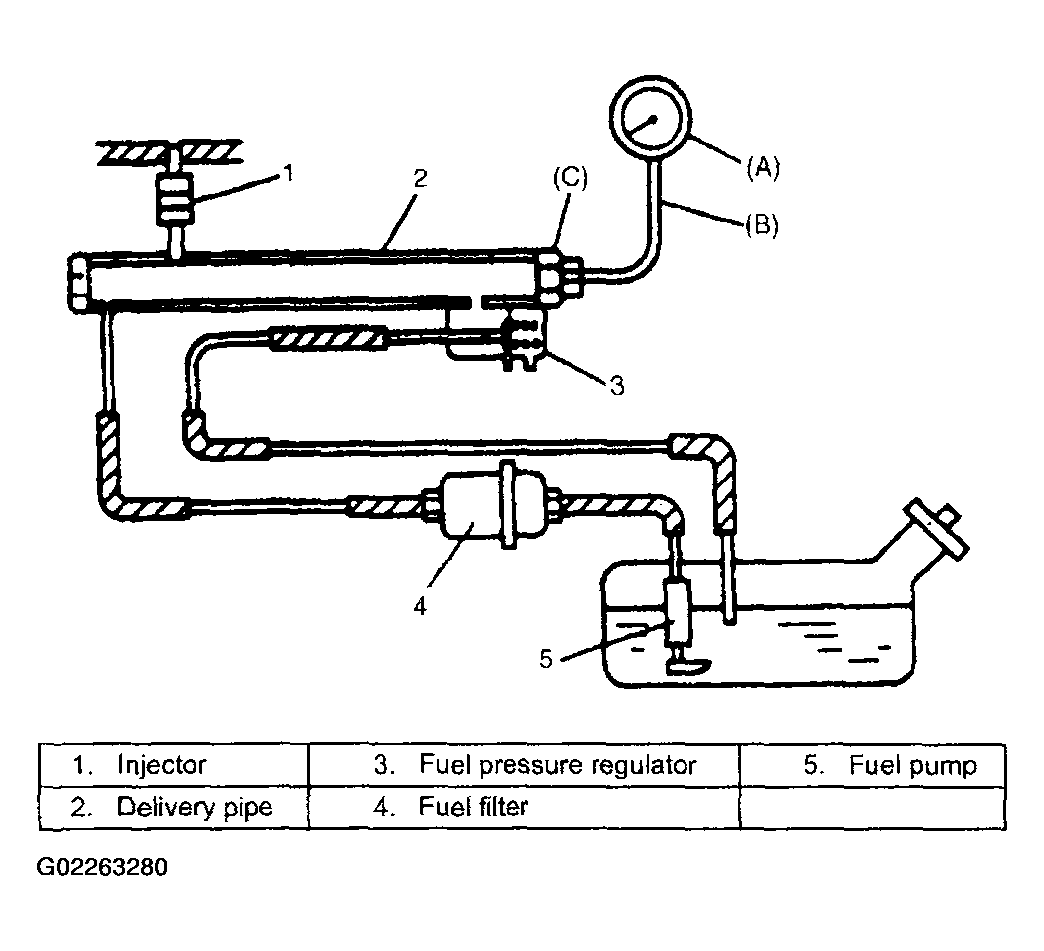

Fig 1: Fuel System Diagram
G02263280Courtesy of SUZUKI OF AMERICA CORP.
