Engine & Emission Control System Check

Numbers of each step correspond to the numbers of the items after this table. Refer to the following items for the detail of each step. See Fig 1 .

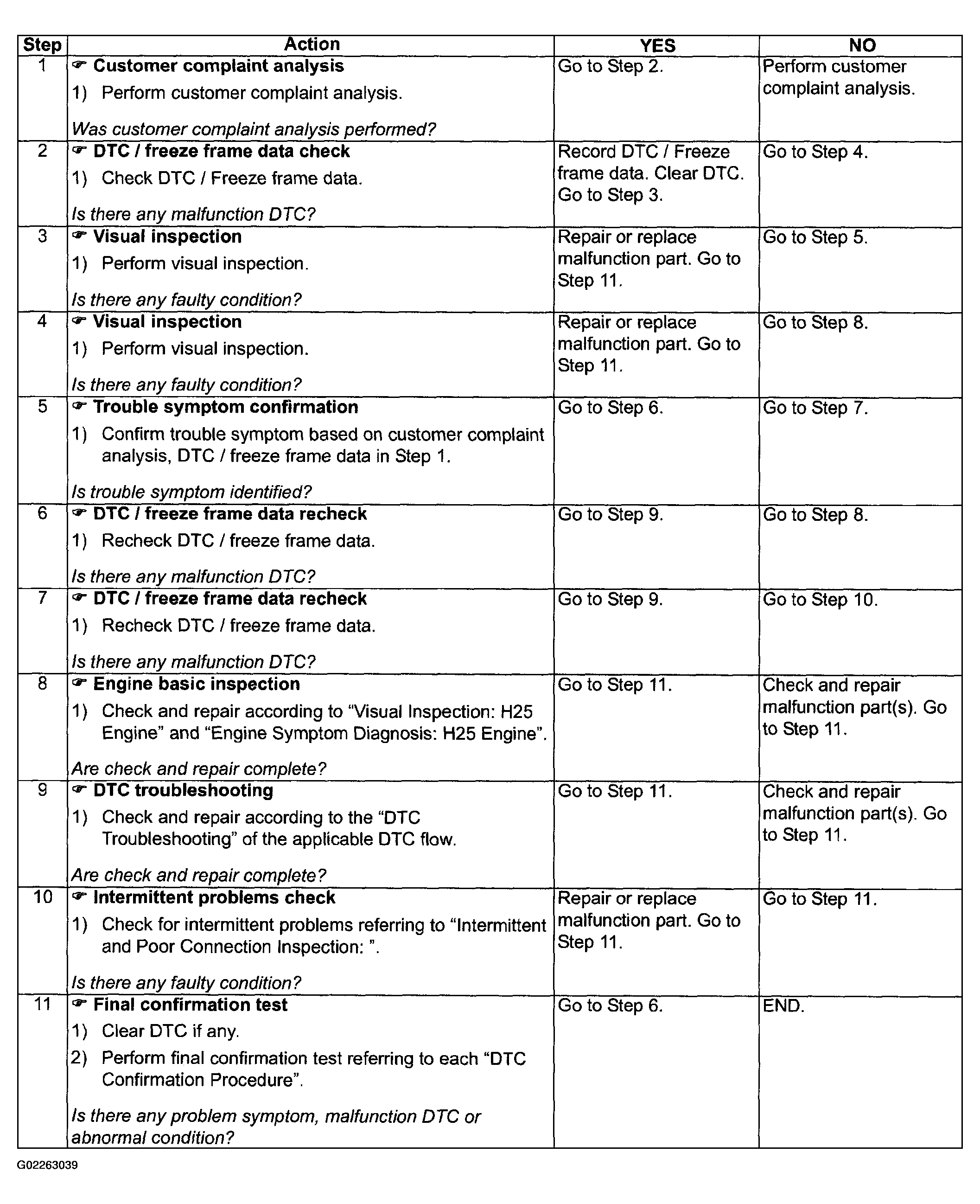

Fig 1: Engine & Emission Control System Check Table
G02263039Courtesy of SUZUKI OF AMERICA CORP.
