Oil Pump Components

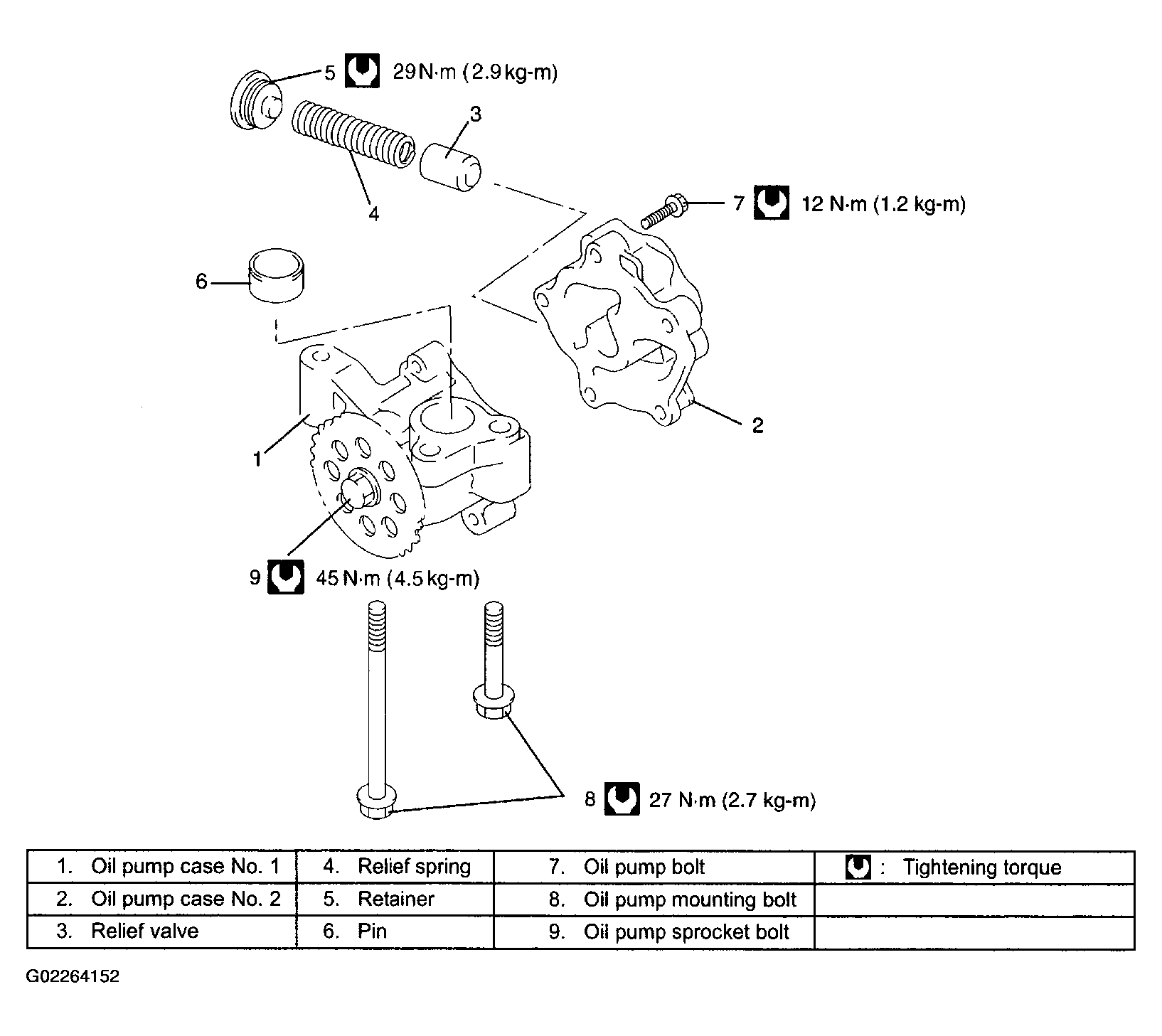

Fig 1: Exploded View Of Oil Pump Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
