DTC B1131 (No. 31): Illumination Control Input Circuit Open: Wiring Diagram

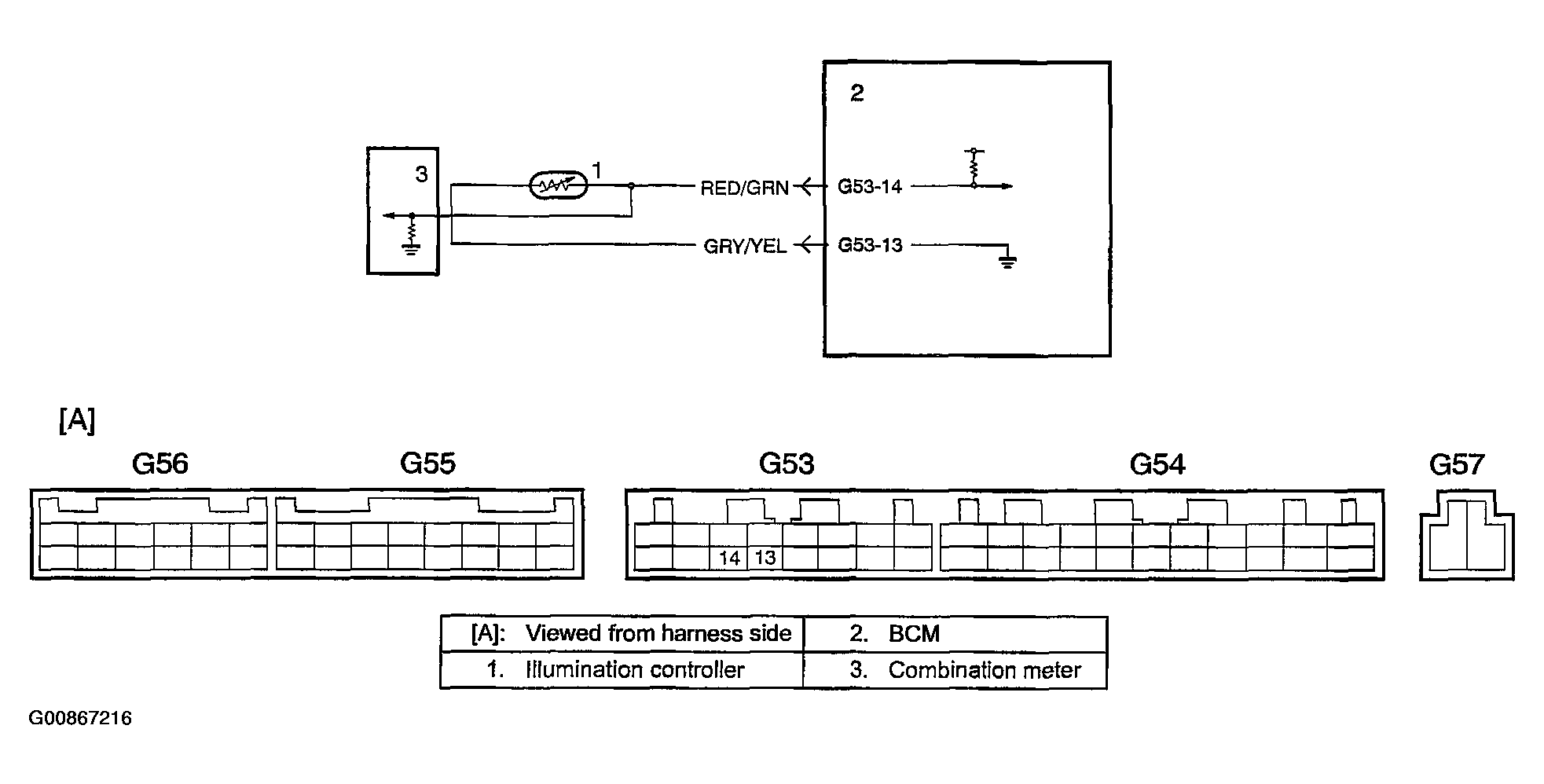

Fig 1: DTC B1131 (No. 31) Illumination Control Input Circuit Open - System Wiring Diagram
G00867216Courtesy of SUZUKI OF AMERICA CORP.
