Transmission Range Sensor (Shift Switch) Circuit Check

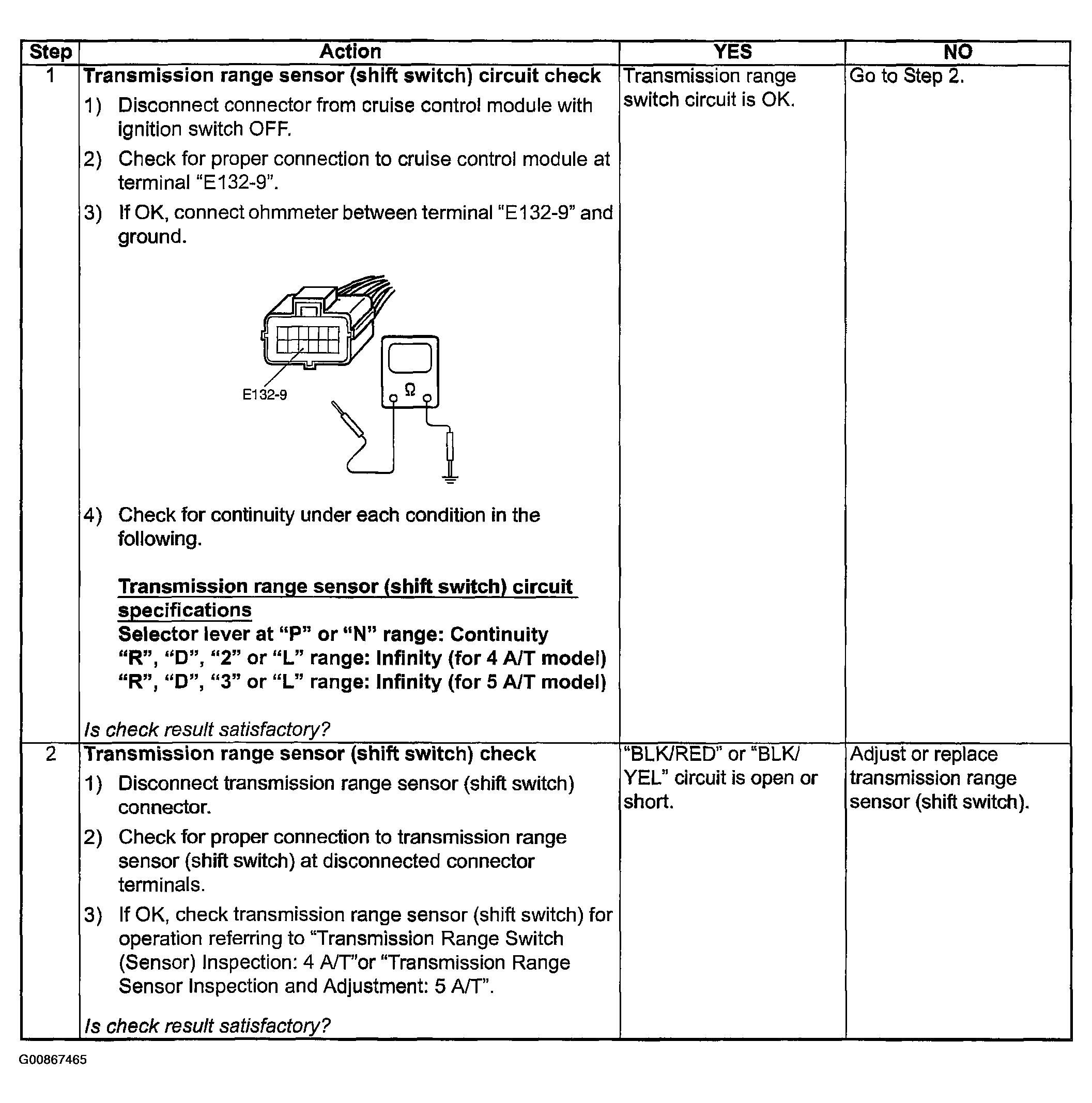

Fig 1: Transmission Range Sensor (Shift Switch) Circuit Check Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
