Fuel Pressure Control System Inspection

System Diagram

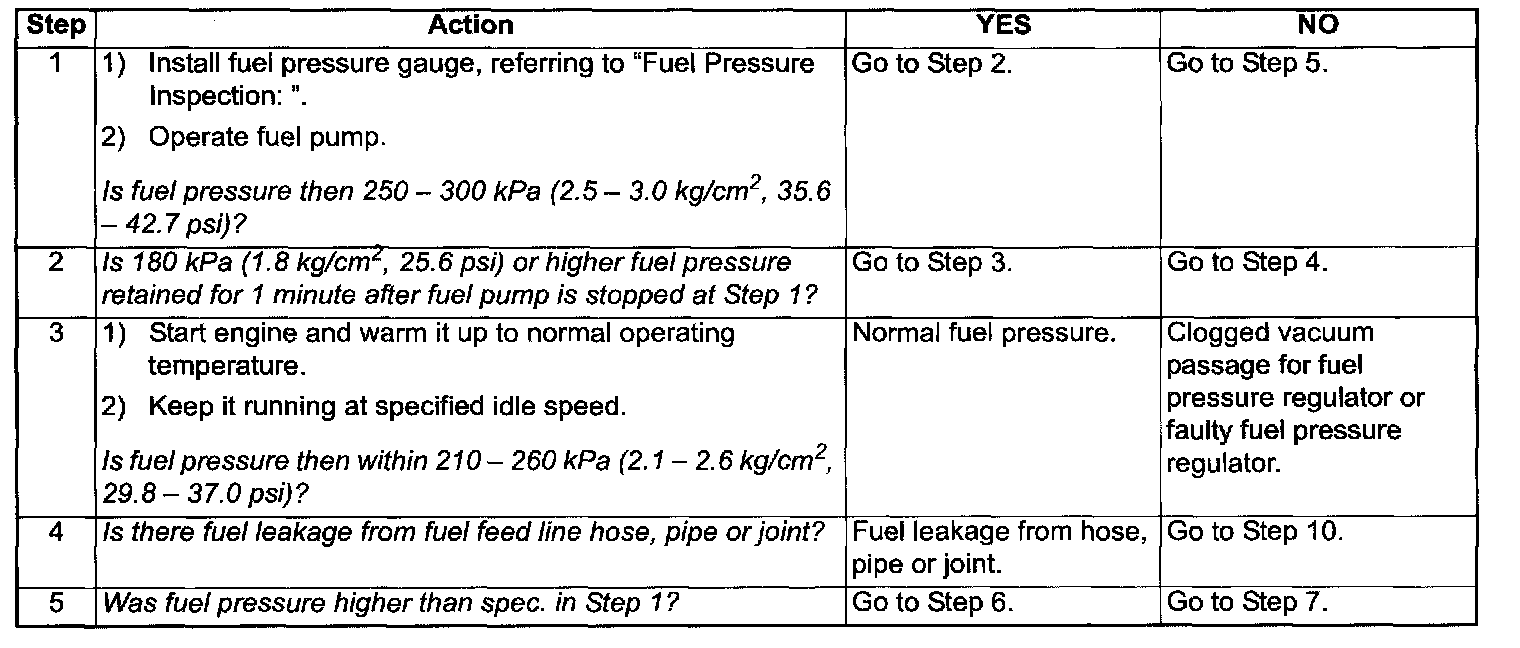

Step 1 - 5:

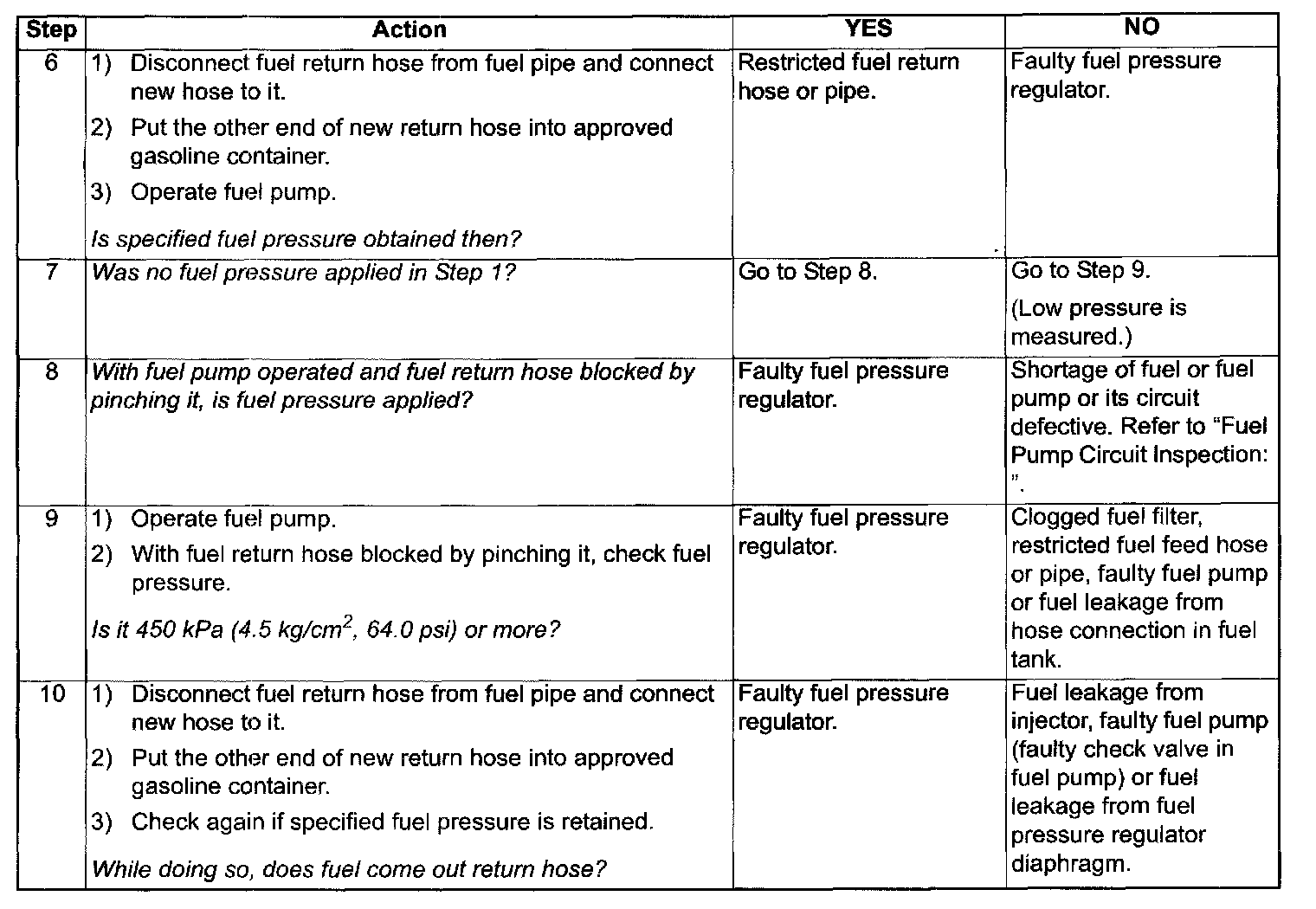

Step 6 - 10:

Troubleshooting

NOTE: Before using the following flow, check to make sure that battery voltage is higher than 11 V. If battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in good condition.
