Transmission Shift Position Indicator Lamp: Testing and Inspection

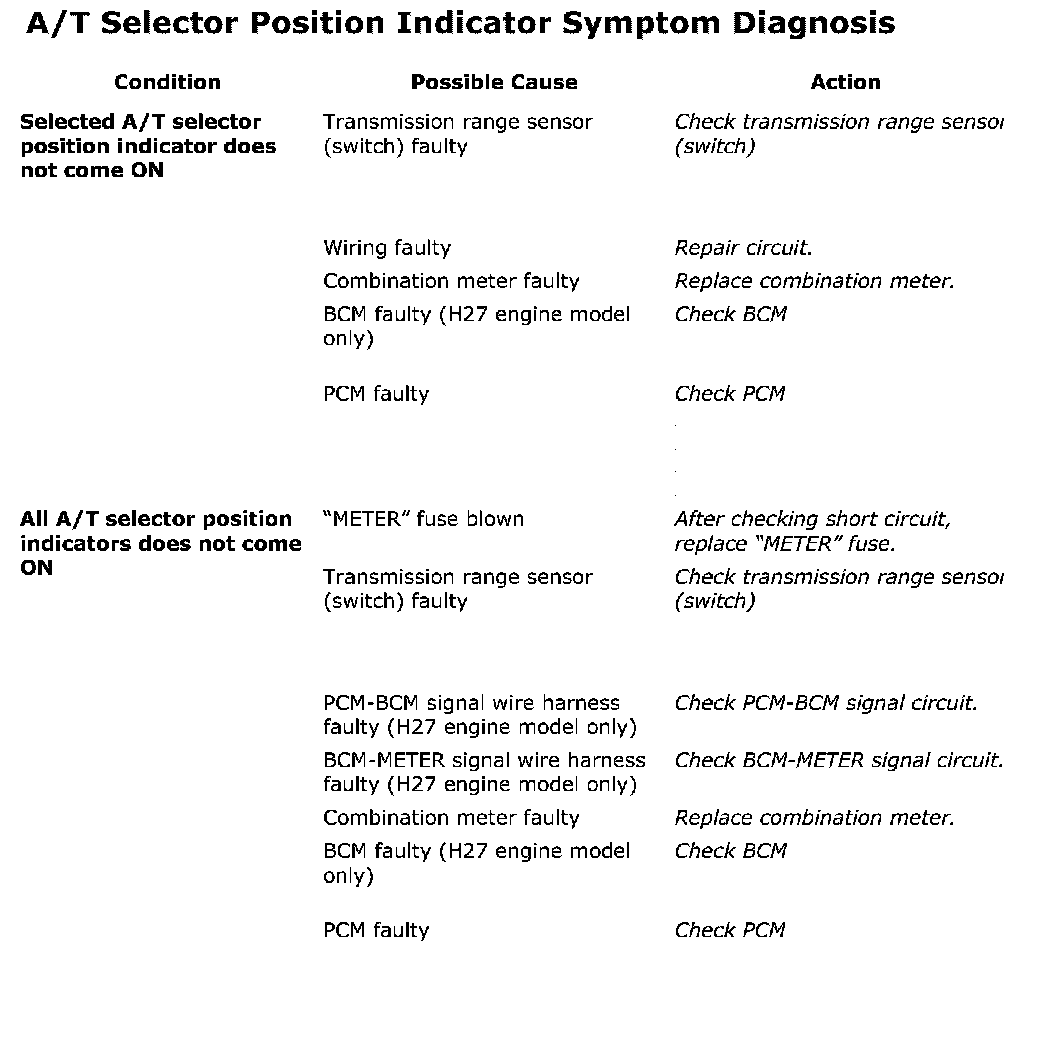

A/T Selector Position Indicator Symptom Diagnosis:
