P0102

DTC P0102: Mass Air Flow (MAF) Sensor Circuit Low Voltage

Wiring Diagram:

DTC Detecting Condition and Trouble Area:

DTC Confirmation Procedure

NOTE:
Check to make sure that the following conditions are satisfied when using this "DTC Confirmation Procedure".
- Intake air temperature: between -14 °C and 70 °C (6.8 °F and 158 °F)
- Atmospheric pressure: higher than 560 mmHg (Altitude: lower than 2790 m (9150 ft))

1. With ignition switch OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC by using scan tool if any.
3. Start engine and run it for 10 sec.
4. Check DTC by using scan tool.

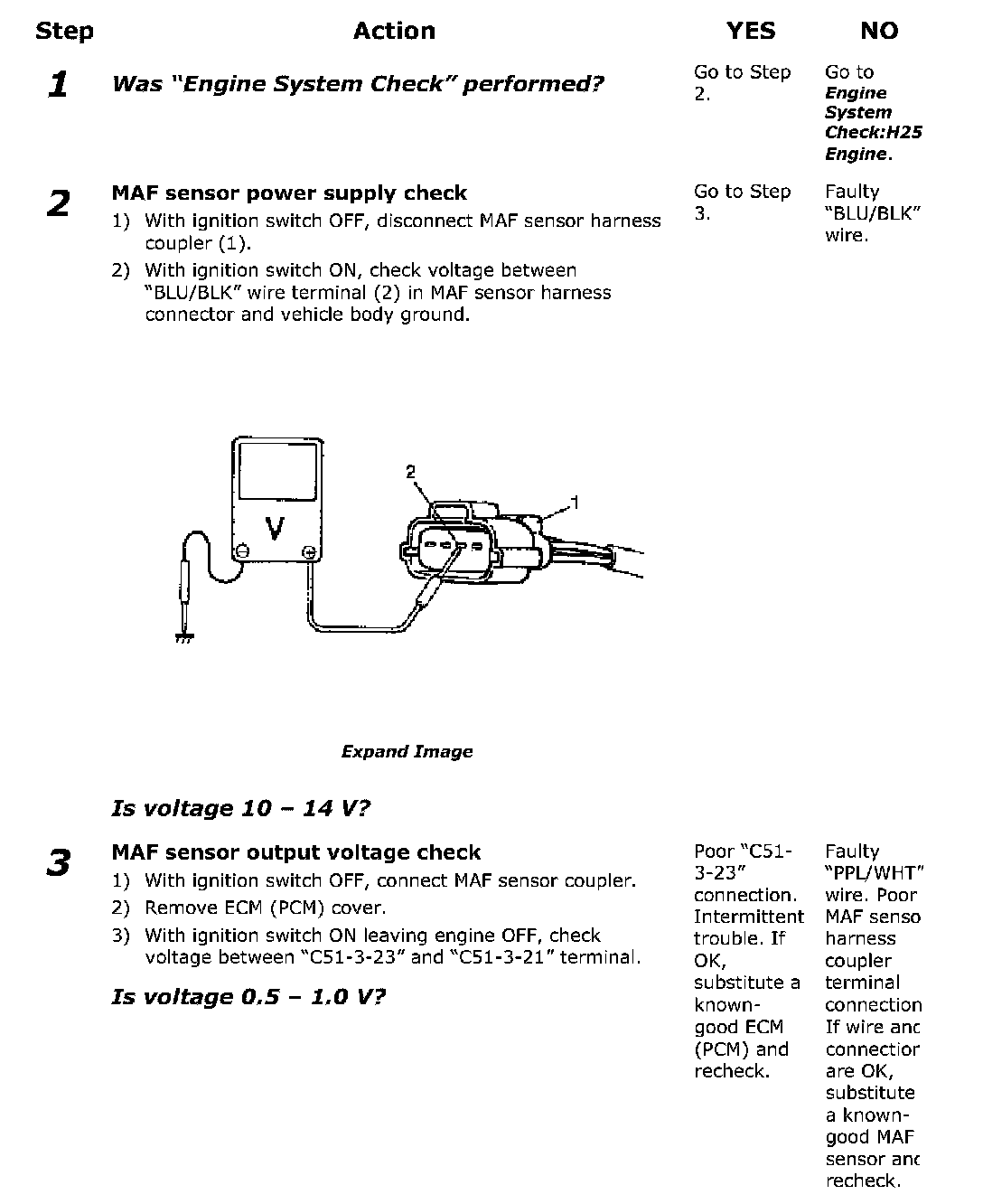

Step 1 - 3:

DTC Troubleshooting
