P Codes to Mfg (Flash) Codes Index - Transmission Control System

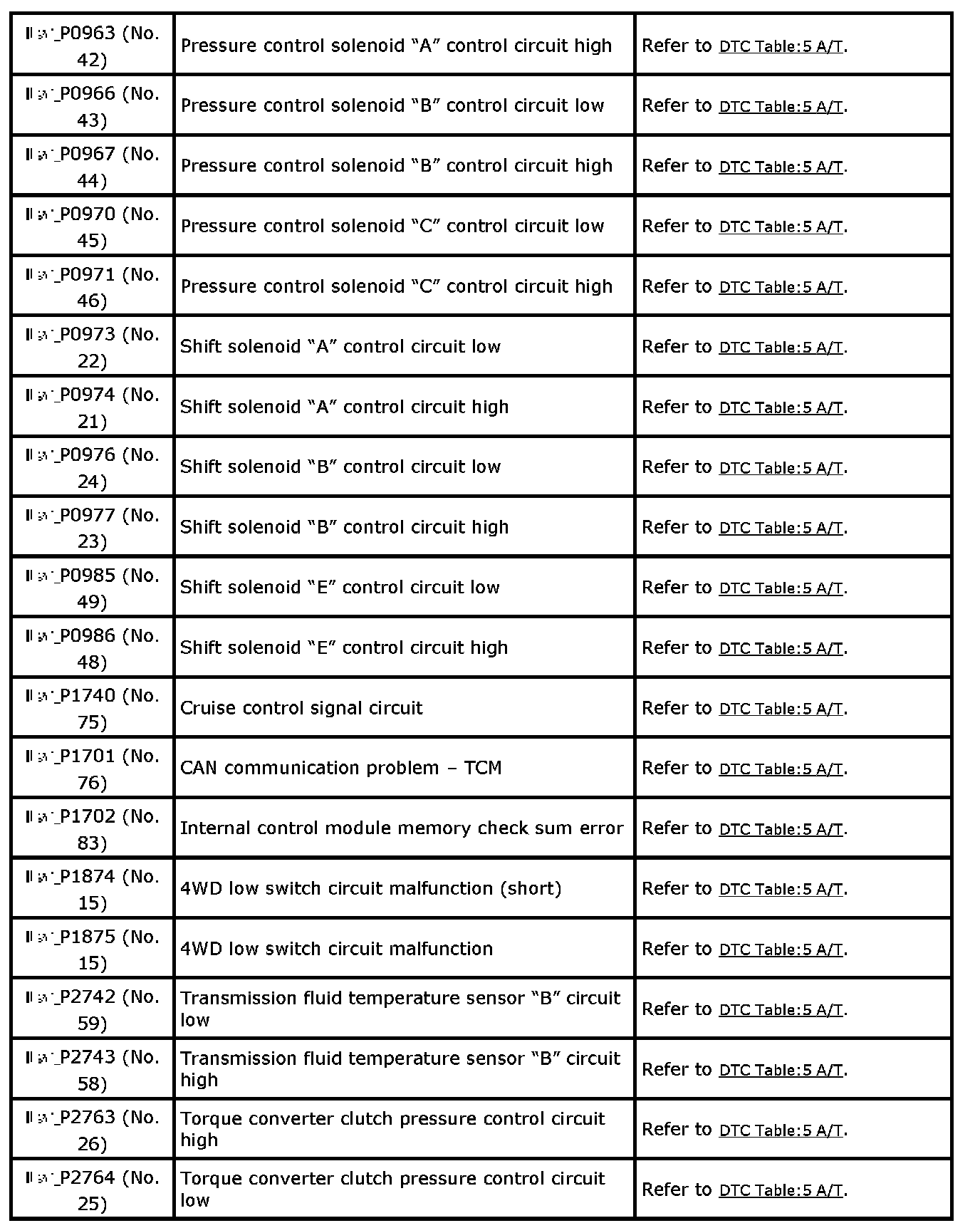

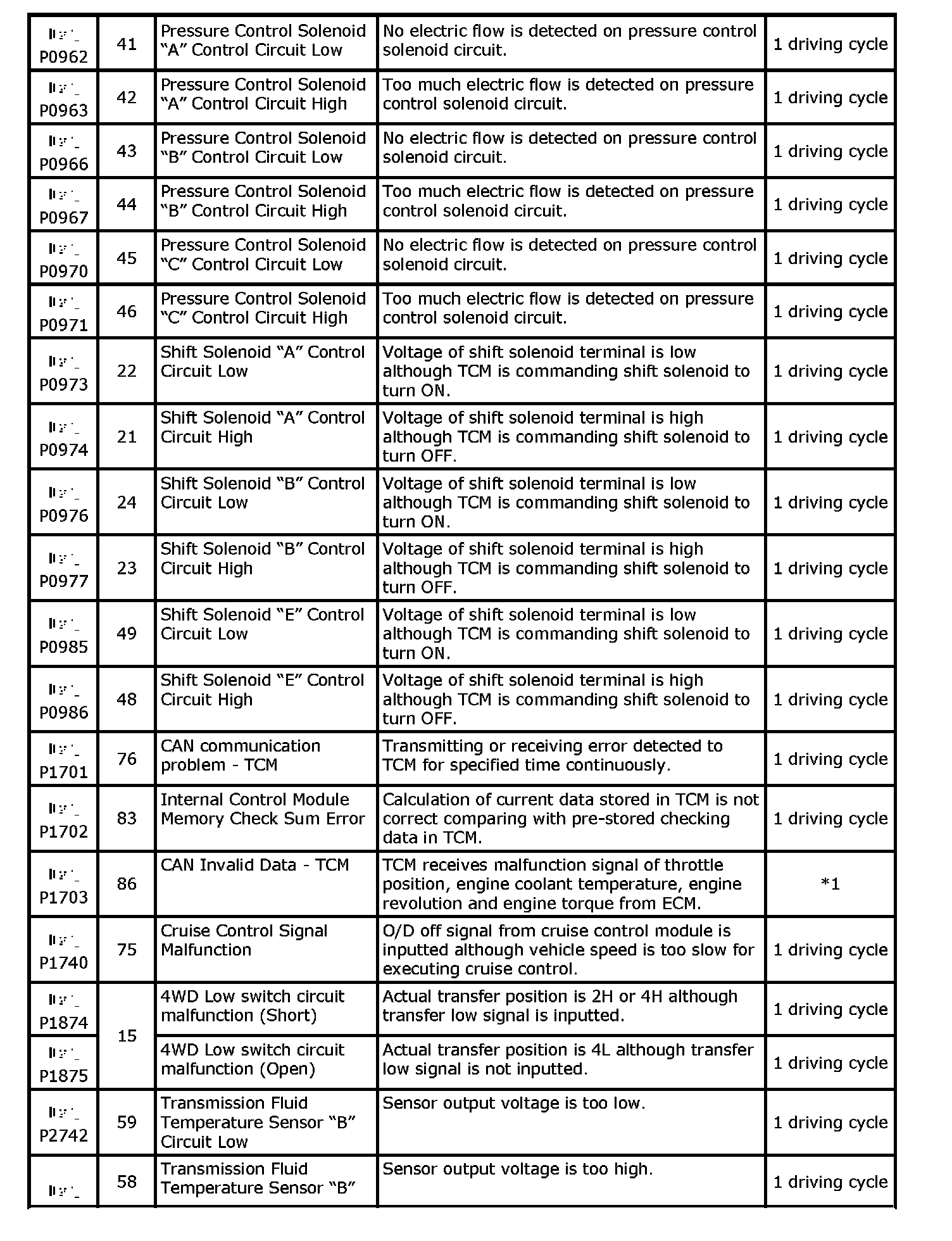

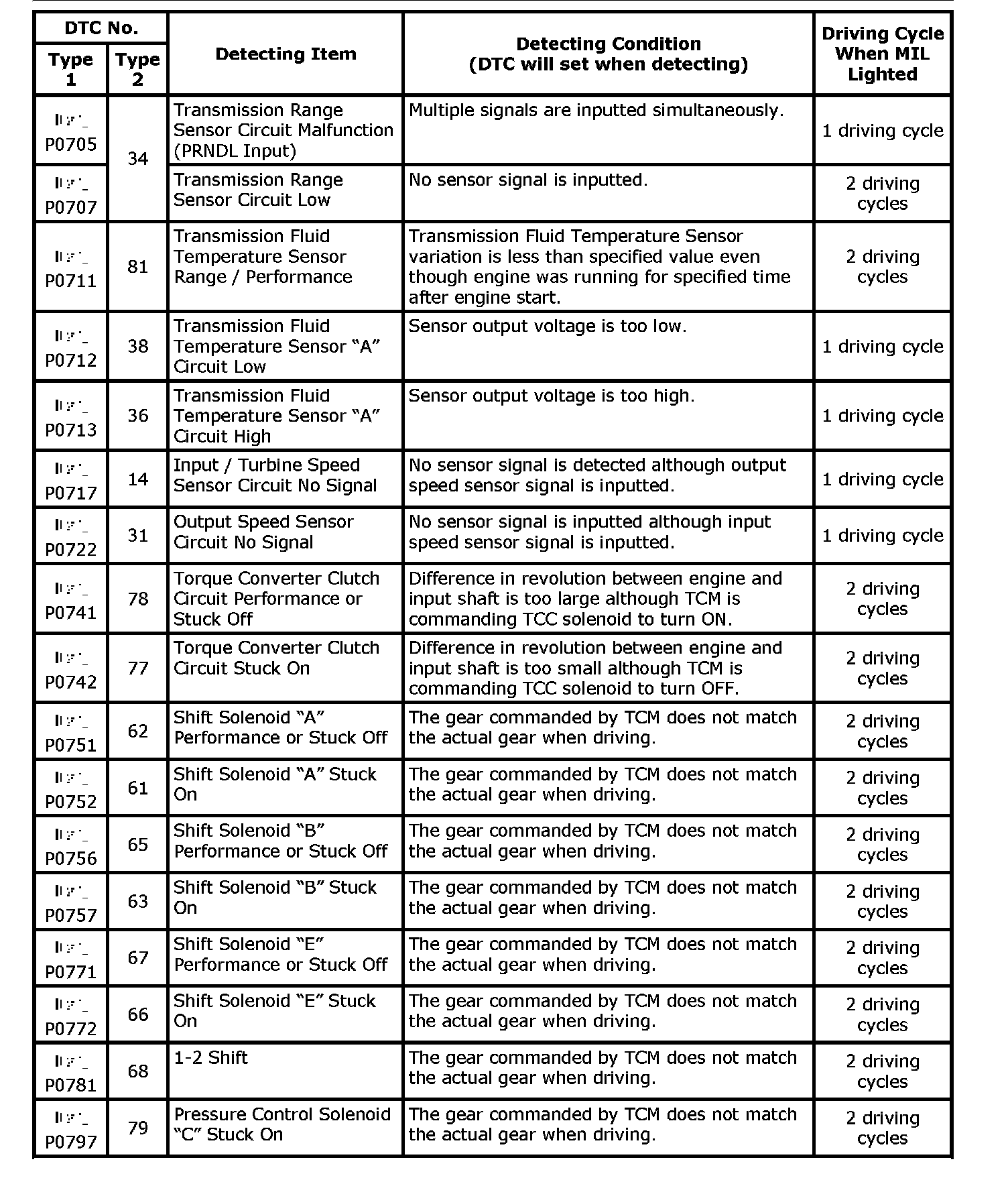

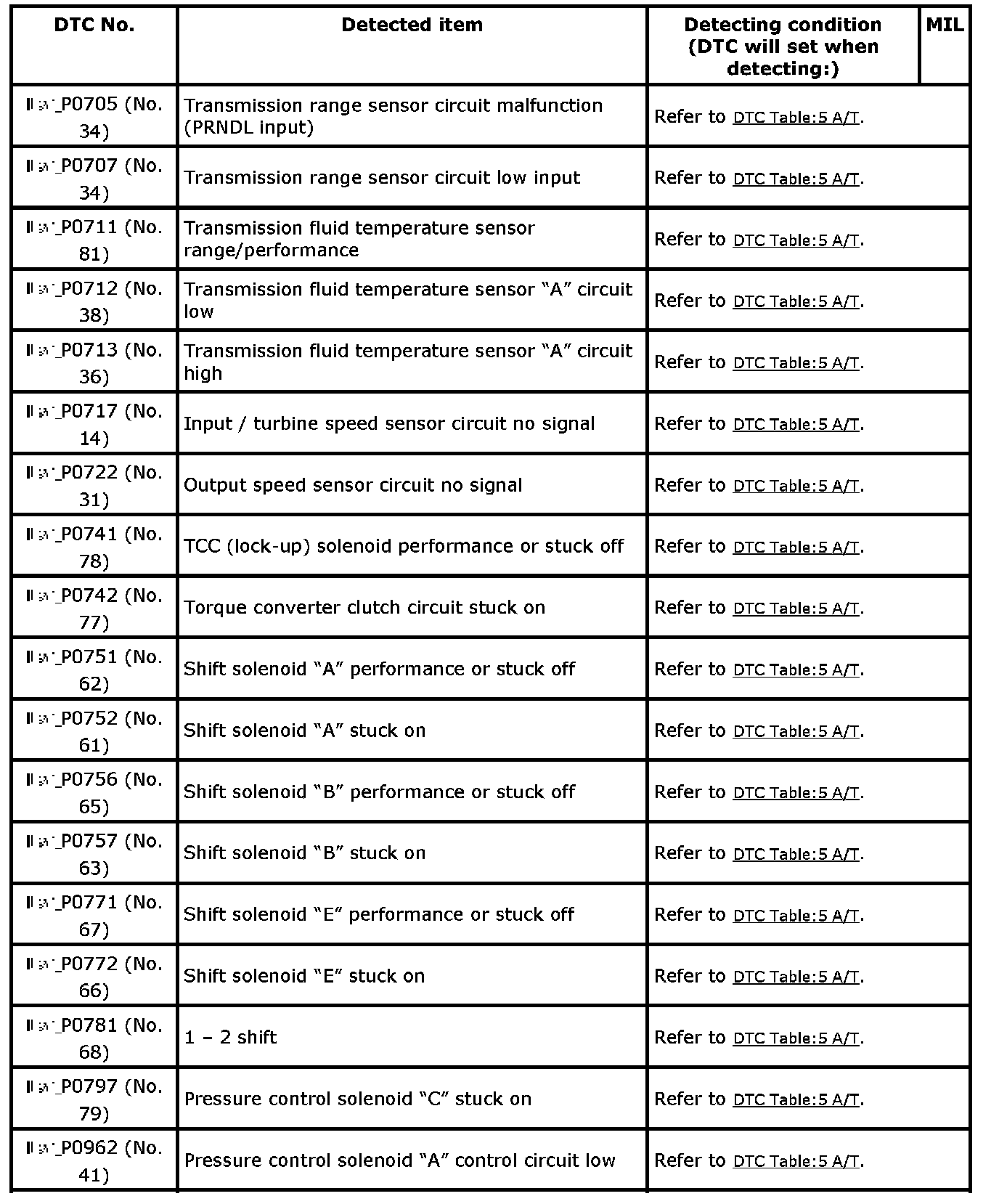

DTC Table
NOTE:
Type 1 DTC: DTC code which can be checked by using scan tool.
Type 2 DTC: DTC code which can be checked by using "O/D OFF" lamp.
NOTE: *1: TCM does not desire turning on malfunction indicator lamp to ECM but DTC is stored in TCM memory.
For A/T System (Only OBD-II General Scan Tool Is Displayed on the following DTC(s) at the same time)
