Manual Transmission Case Components

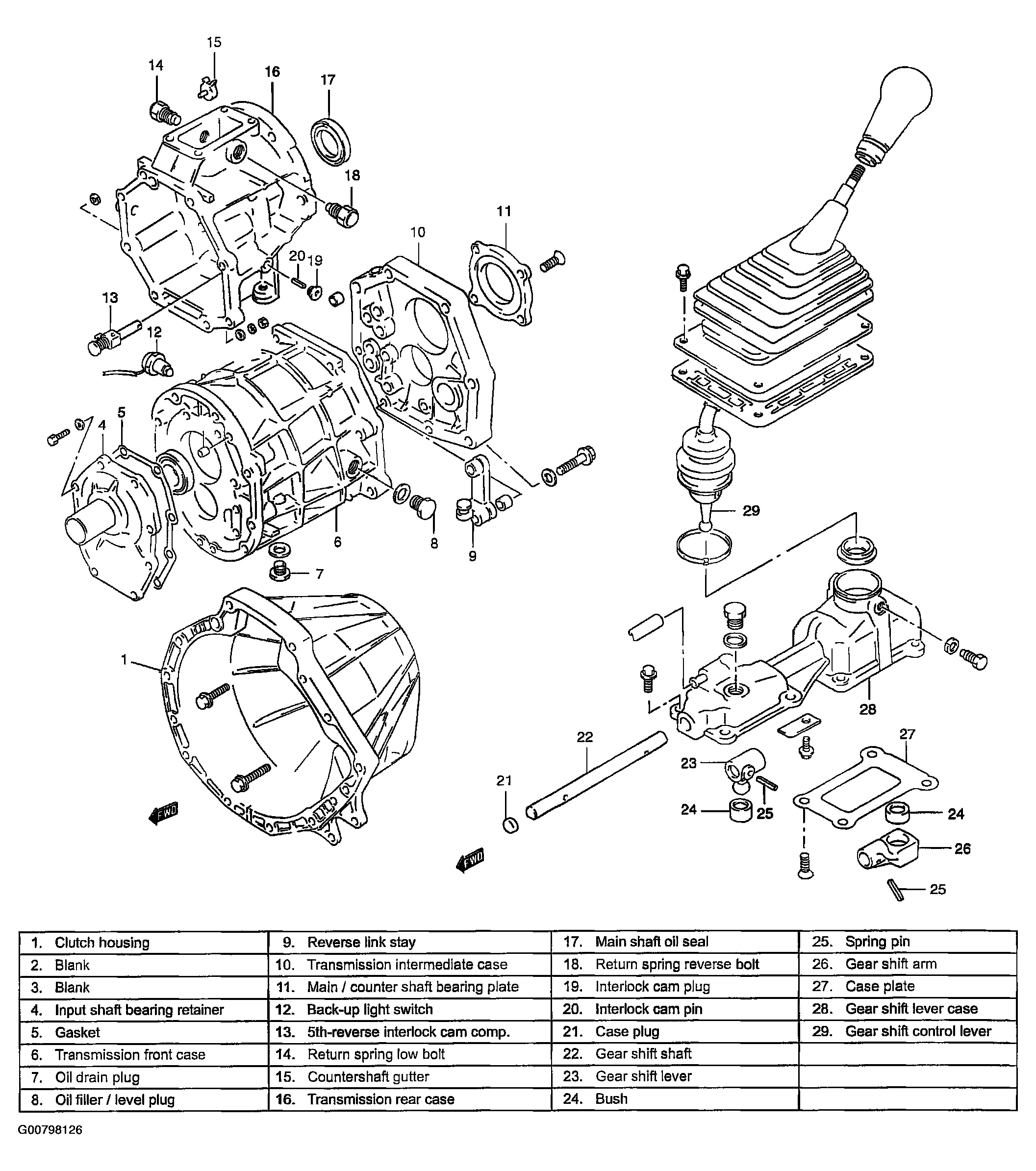

Fig 1: Disassembled View Of Manual Transmission Case Components
G00798126Courtesy of SUZUKI OF AMERICA CORP.
