Input Shaft Disassembly and Assembly: Assembly

1. Bring bearing (1) so that its groove for circlip is in the front of input shaft (2) and press-fit with special tool and press.

   Special tool

   (A): 09940-51710

   Fig 1: Assembling Input Shaft

   Courtesy of SUZUKI OF AMERICA CORP.
2. Select circlip (1) that will make thrust clearance of bearing 0.1 mm (0.0039 in) or less and install it.

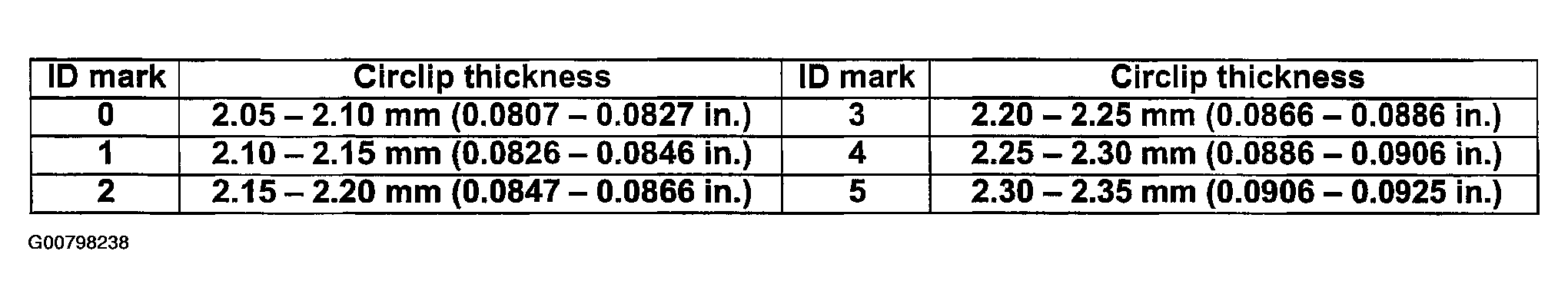

   Circlip thickness specification

   Fig 2: Circlip Thickness Specification Chart

   Courtesy of SUZUKI OF AMERICA CORP.

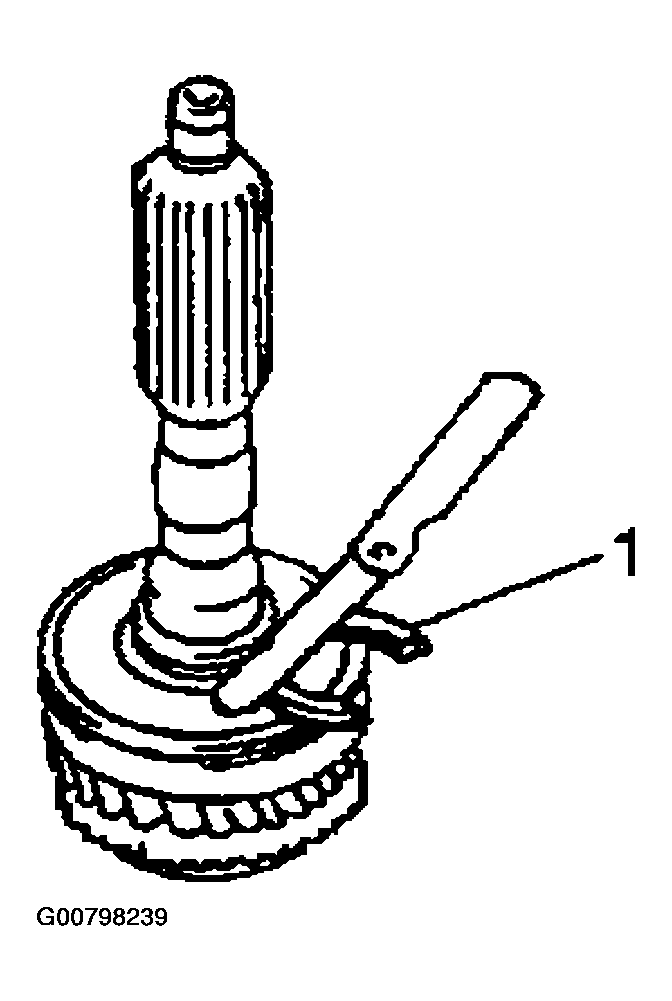

   Fig 3: Measuring Circlip Thickness

   Courtesy of SUZUKI OF AMERICA CORP.
3. Apply grease to bearing roller (1) and install it to input shaft (2).

: Grease 99000-25010

Fig 4: Installing Bearing Roller In To Input Shaft

Courtesy of SUZUKI OF AMERICA CORP.
