Engine Rear Mounting Replacement

When replacement of mounting parts are necessary, torque bolts and nut as specified.

Tightening torque

Engine rear mounting bolt and nut (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)

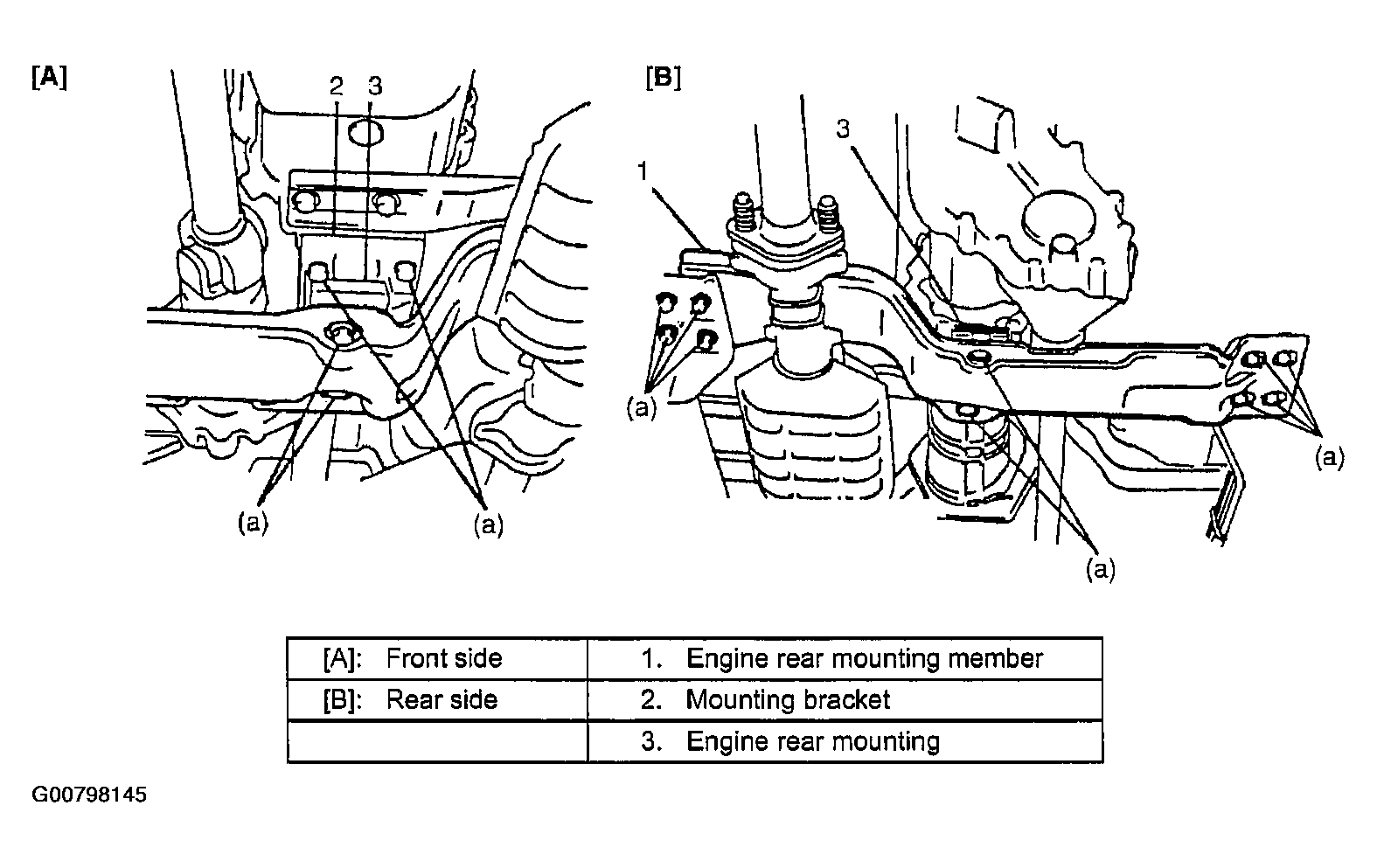

Fig 1: Identifying Engine Mounting Parts

Courtesy of SUZUKI OF AMERICA CORP.
