Clutch Operating Cylinder Removal and Installation: Installation

For air bleeding of master cylinder alone, it must be removed from vehicle. For procedures of removal and installation of master cylinder assembly and air bleeding, refer to Clutch Master Cylinder Removal and Installation .
Apply small amount of grease to rod tip.
NOTE: Don't allow any grease to be on boot (1).

Fig 1: Identifying Boot
Courtesy of SUZUKI OF AMERICA CORP.
Install clutch operating cylinder (1) and torque attaching bolts to specification.
Connect clutch fluid hose and torque union bolt to specification.
Tightening torque

Clutch operating cylinder mounting bolt (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)

Clutch hose union bolt (b): 23 N.m (2.3 kg-m, 17.0 lb-ft)

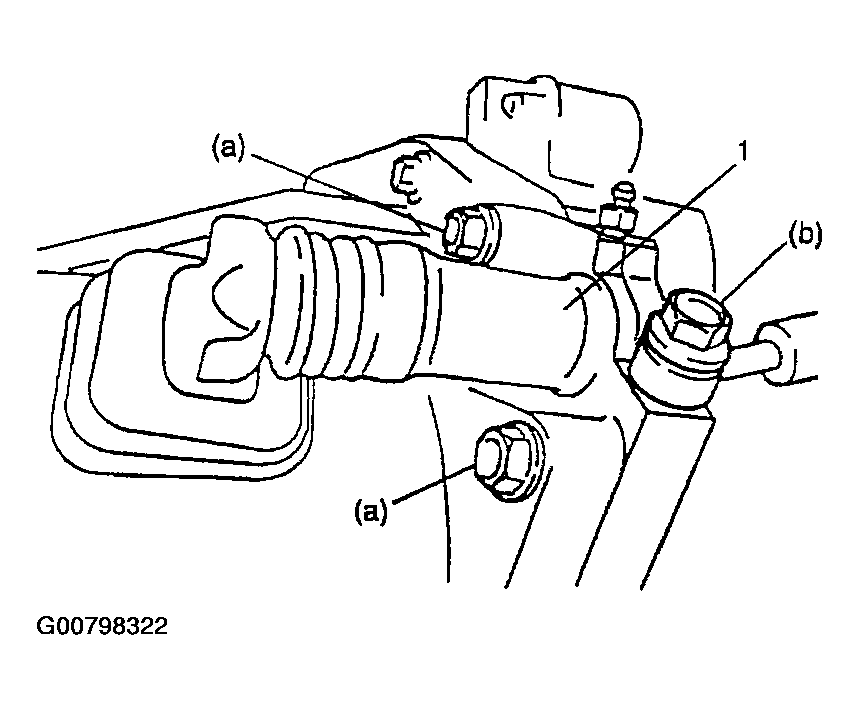

Fig 2: Installing Clutch Operating Cylinder And Torque Attaching Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Fill reservoir with specified brake fluid and check for fluid leakage.

Fig 3: Filling Reservoir With Specified Brake Fluid And Check For Fluid Leakage
Courtesy of SUZUKI OF AMERICA CORP.

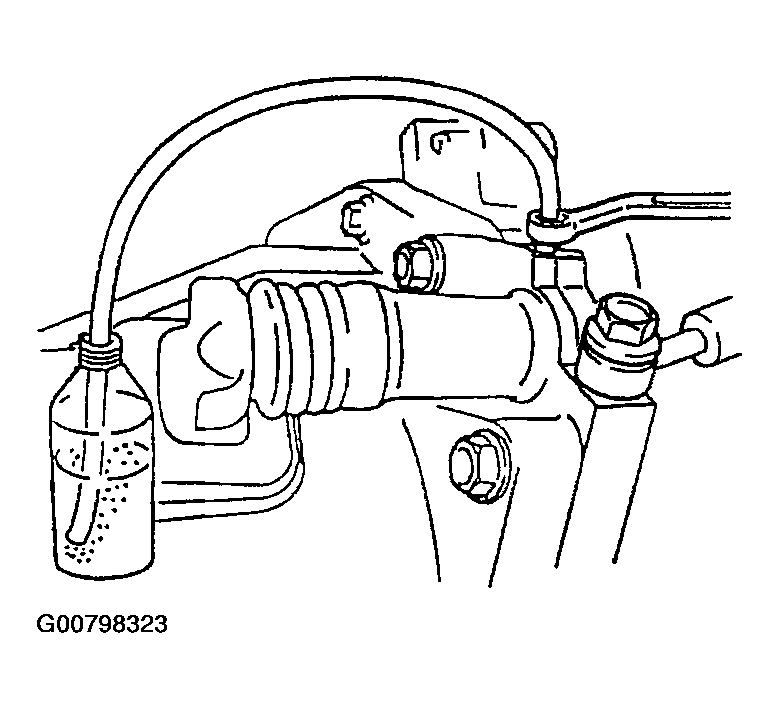

Bleed air from system and check clutch pedal free travel. Refer to BLEEDING BRAKE SYSTEM for air bleeding procedure.
