Reference Waveform No. 2

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The shape of waveform varies with outside air temperature.

Fig 1: Reference Waveform No. 2 Chart

Courtesy of SUZUKI OF AMERICA CORP.

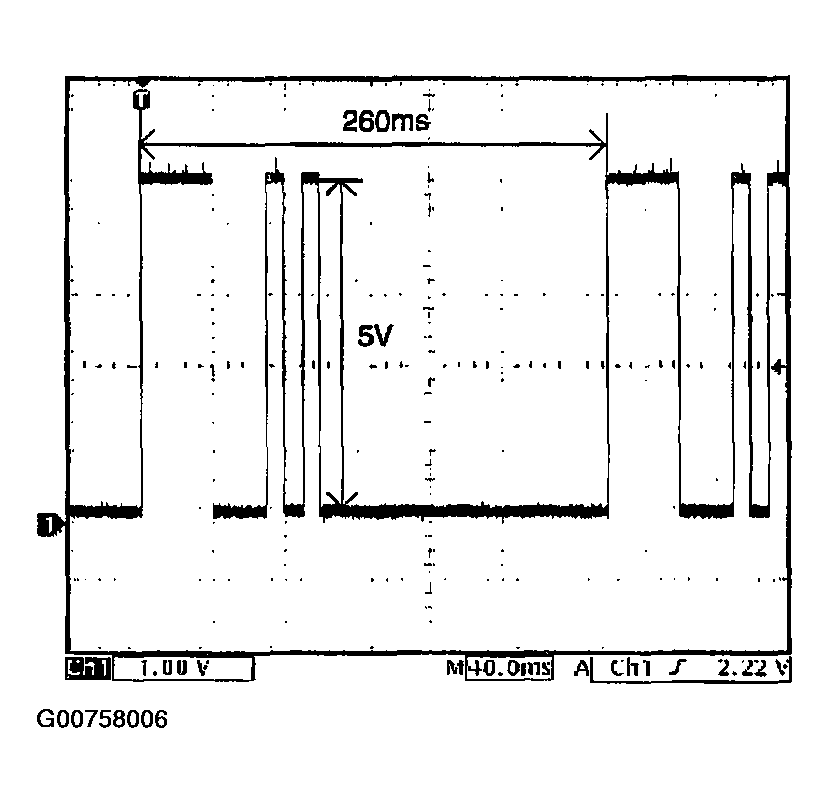

Waveform at -20 °C (-4 °F)

Fig 2: Measuring Waveform At -20 °C (-4 °F)

Courtesy of SUZUKI OF AMERICA CORP.

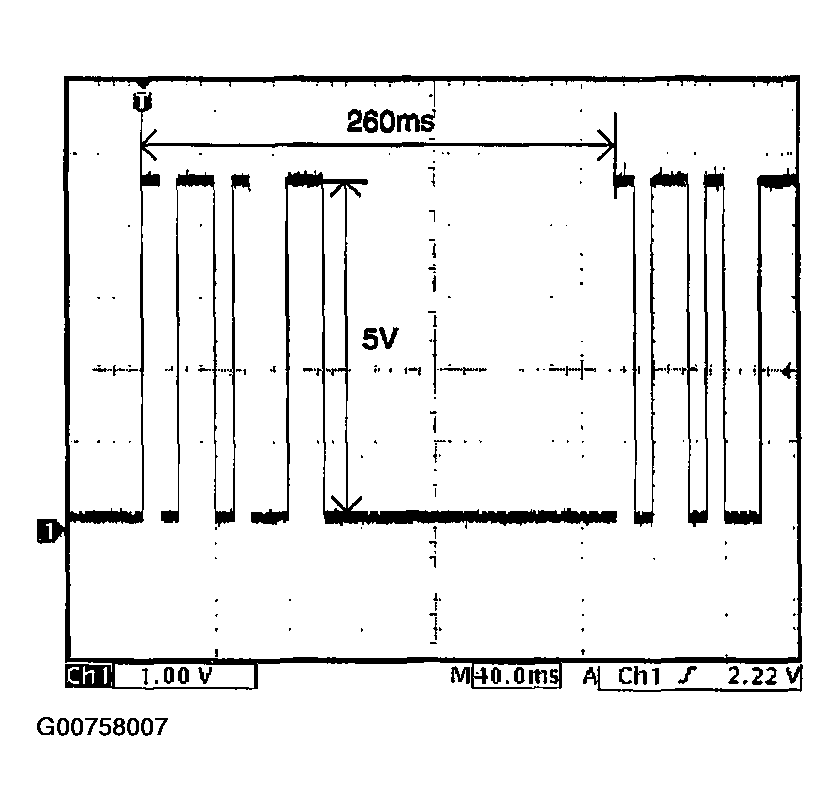

Waveform at 0 °C (32 °F)

Fig 3: Measuring Waveform At 0 °C (32 °F)

Courtesy of SUZUKI OF AMERICA CORP.

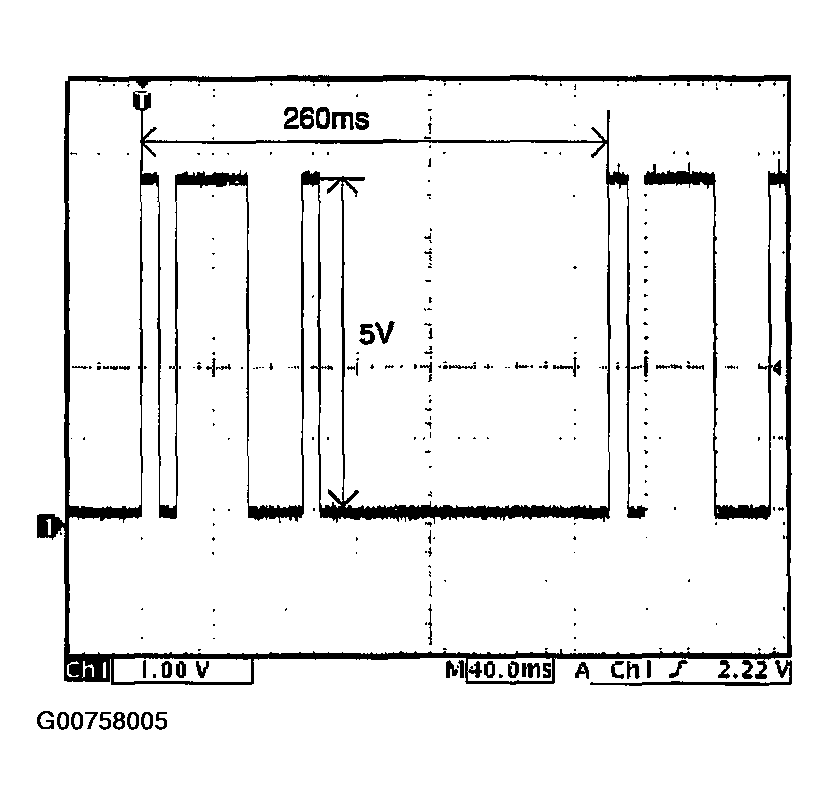

Waveform at 30 °C (86 °F)

Fig 4: Measuring Waveform At 30 °C (86 °F)

Courtesy of SUZUKI OF AMERICA CORP.
