Headlight Switch (in Lighting Switch) Inspection

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check for continuity between terminals at each switch position as shown in the following figure. If check result is not as specified, replace.

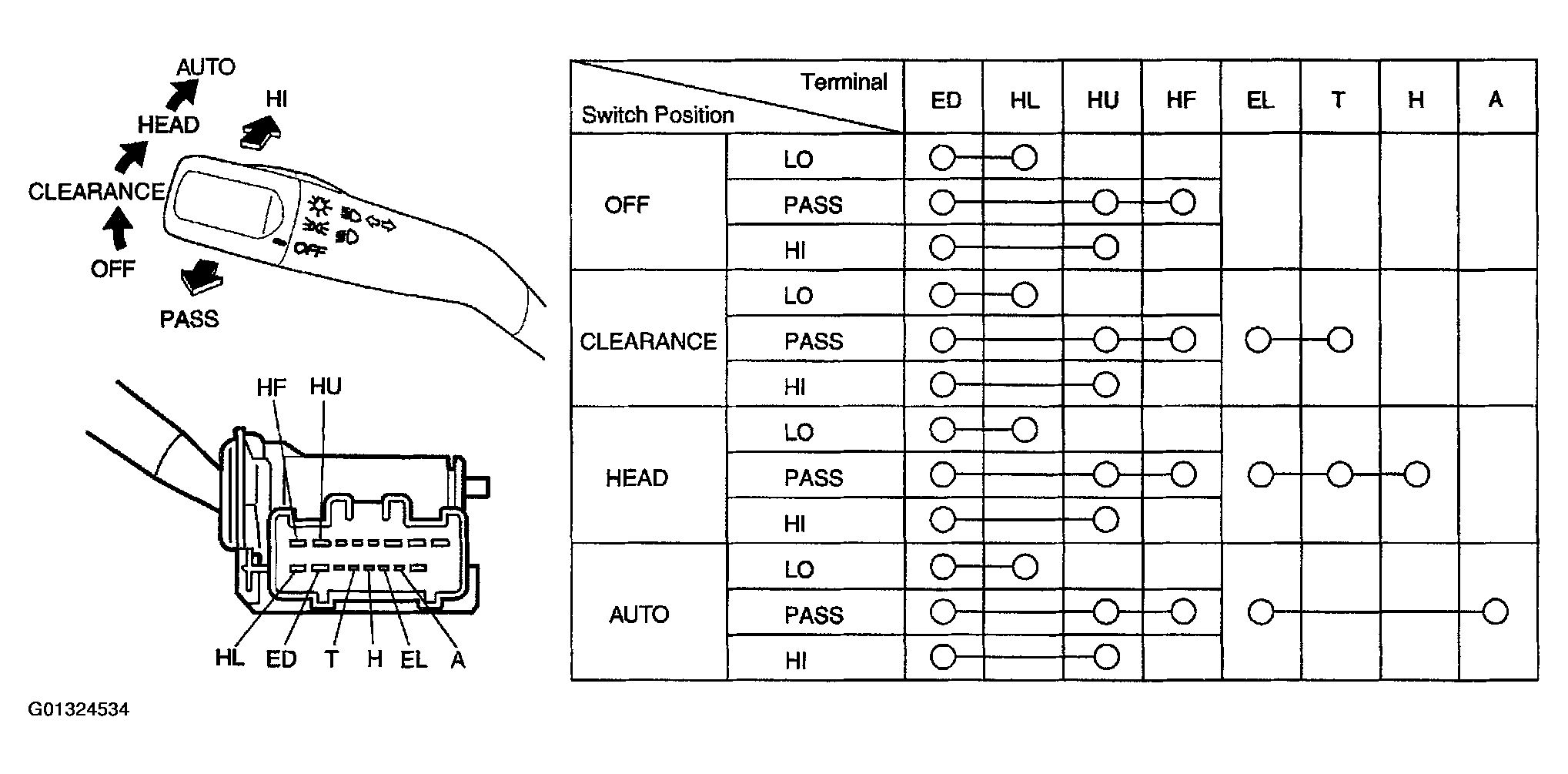

Fig 1: Inspecting Headlight Switch
G01324534Courtesy of SUZUKI OF AMERICA CORP.
