WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

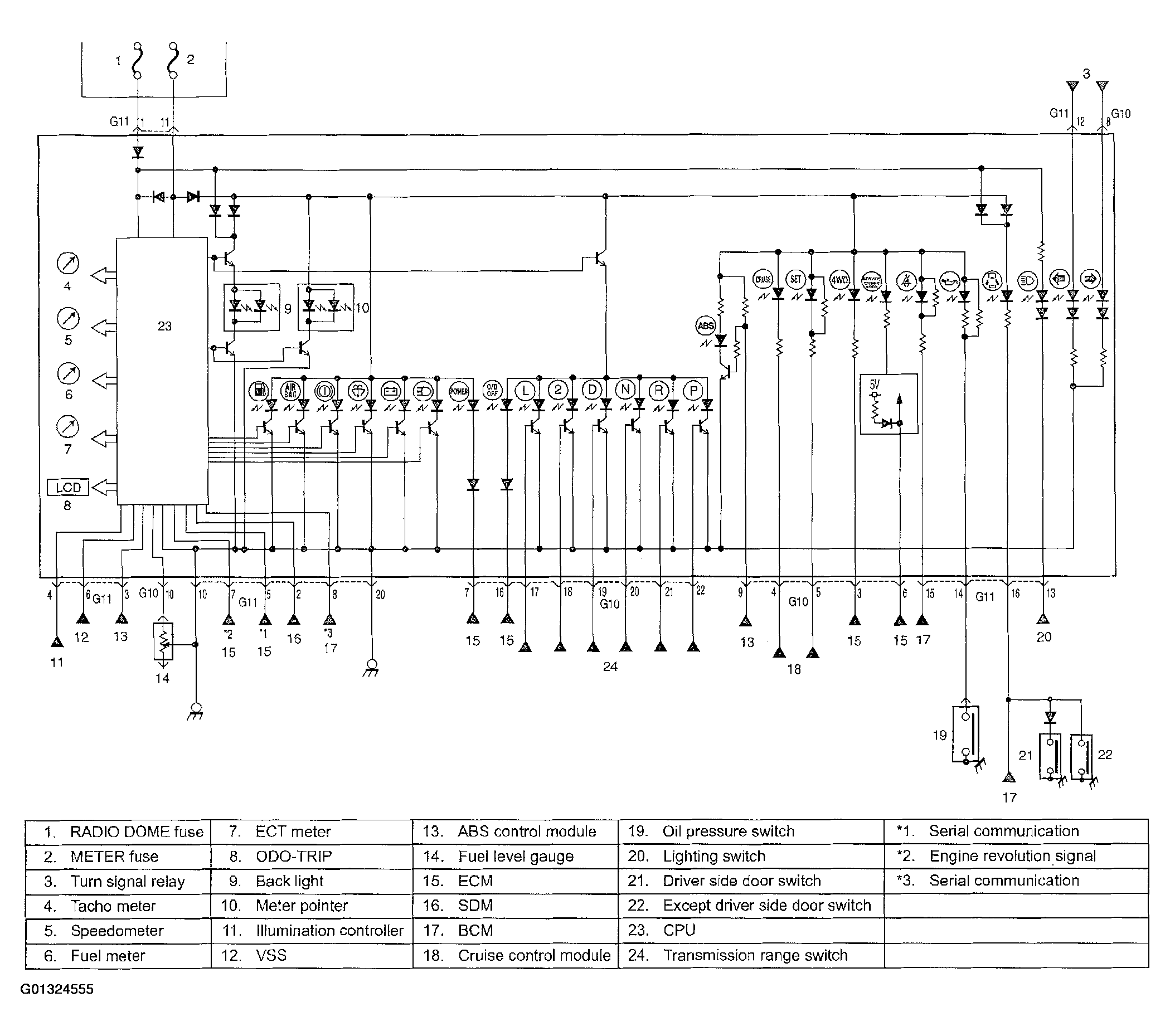

Fig 1: Combination Meter Schematic
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Terminal Arrangement Of Coupler Viewed From Harness Side
Courtesy of SUZUKI OF AMERICA CORP.

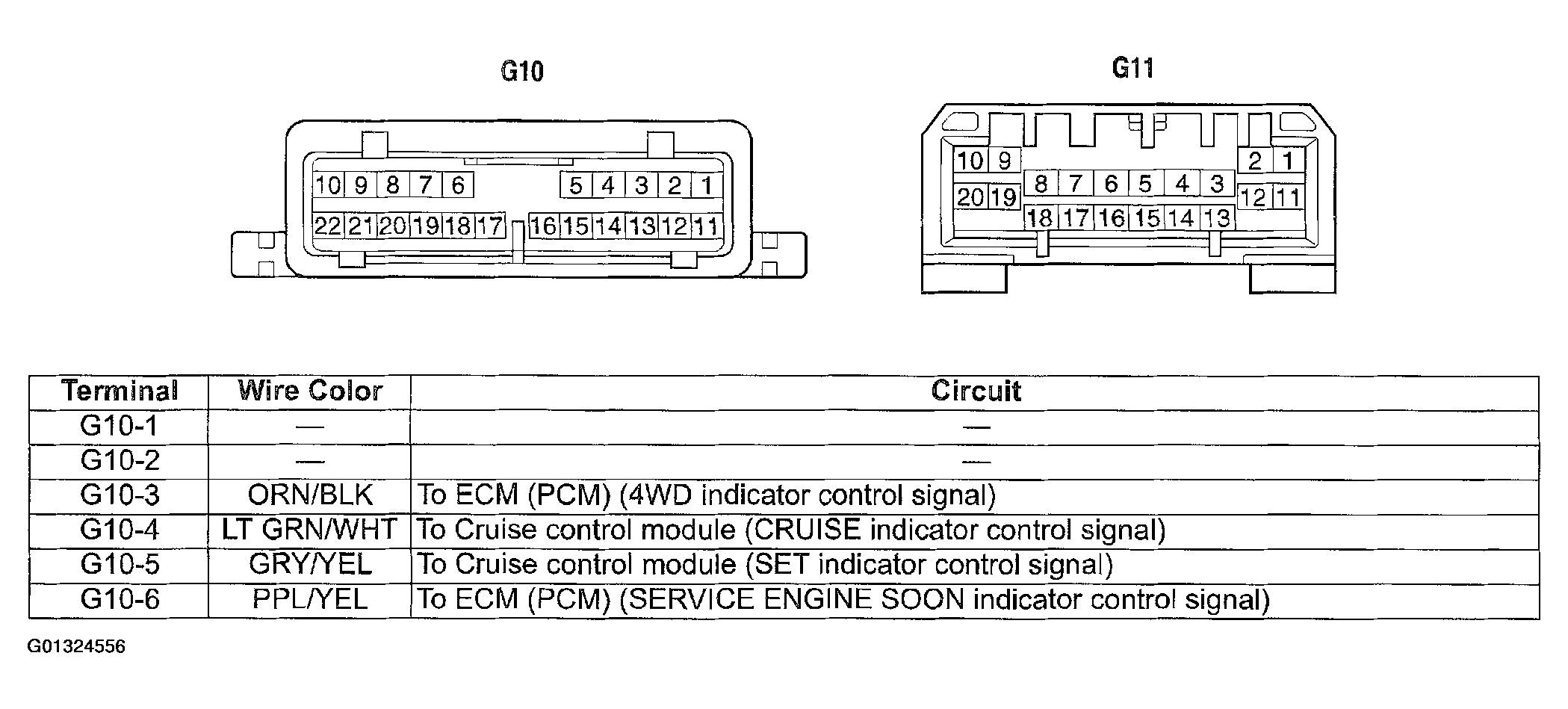

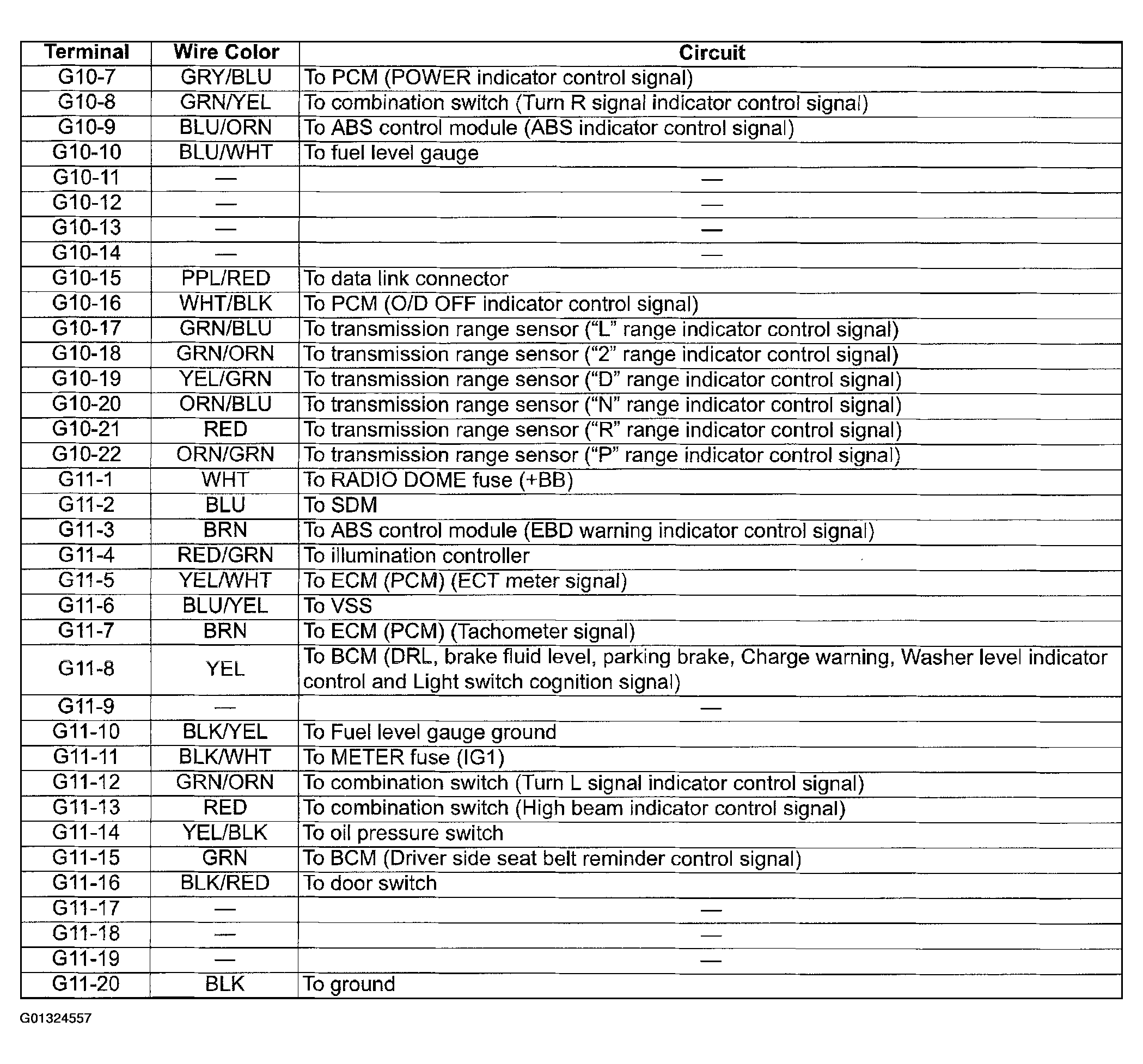

Fig 3: Identifying Combination Meter Terminals (Viewed From Harness Side)
