Mass Air Flow (MAF) Sensor Removal and Installation: Removal

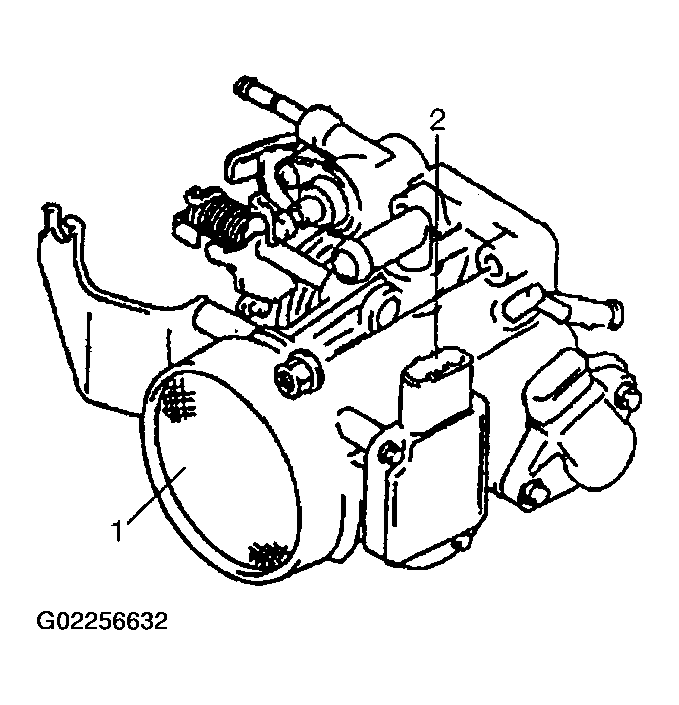

- Disconnect negative cable at battery and coupler from MAF sensor (2).
- Remove throttle body (1) referring to "THROTTLE BODY REMOVAL AND INSTALLATION
".
CAUTION:
- Do not remove MAF sensor from throttle body.
- Do not expose MAF sensor (throttle body) to any shock.
- Do not blow compressed air by using air gun or the like.
- Do not put finger or any other object into MAF sensor and keep away from net. Malfunction may occur.
Courtesy of SUZUKI OF AMERICA CORP.
