EGR Valve Assembly Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Disconnect EGR valve coupler.
  3. Remove EGR valve and gasket from intake collector.

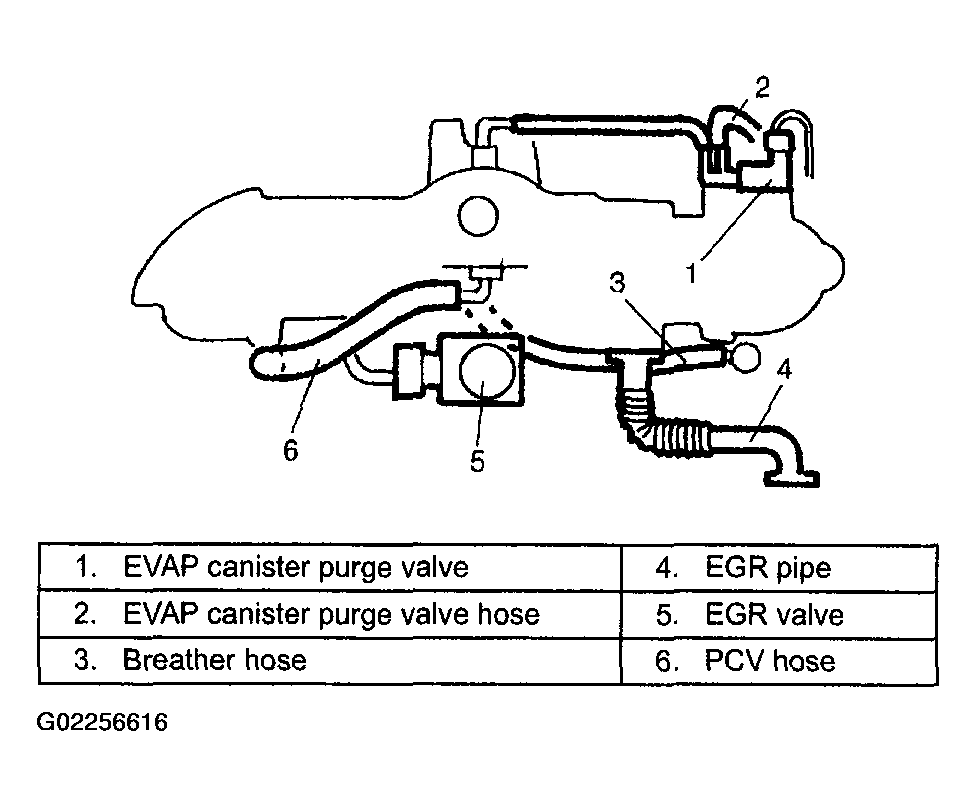

    Fig 1: Identifying EGR Valve Assembly
    G02256616Courtesy of SUZUKI OF AMERICA CORP.
