Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation: Removal

  1. For H25 engine, remove ignition coil cover.
  2. Disconnect ignition coil coupler.
  3. Remove ignition coil bolt (1), and then pull out ignition coil assembly (2).

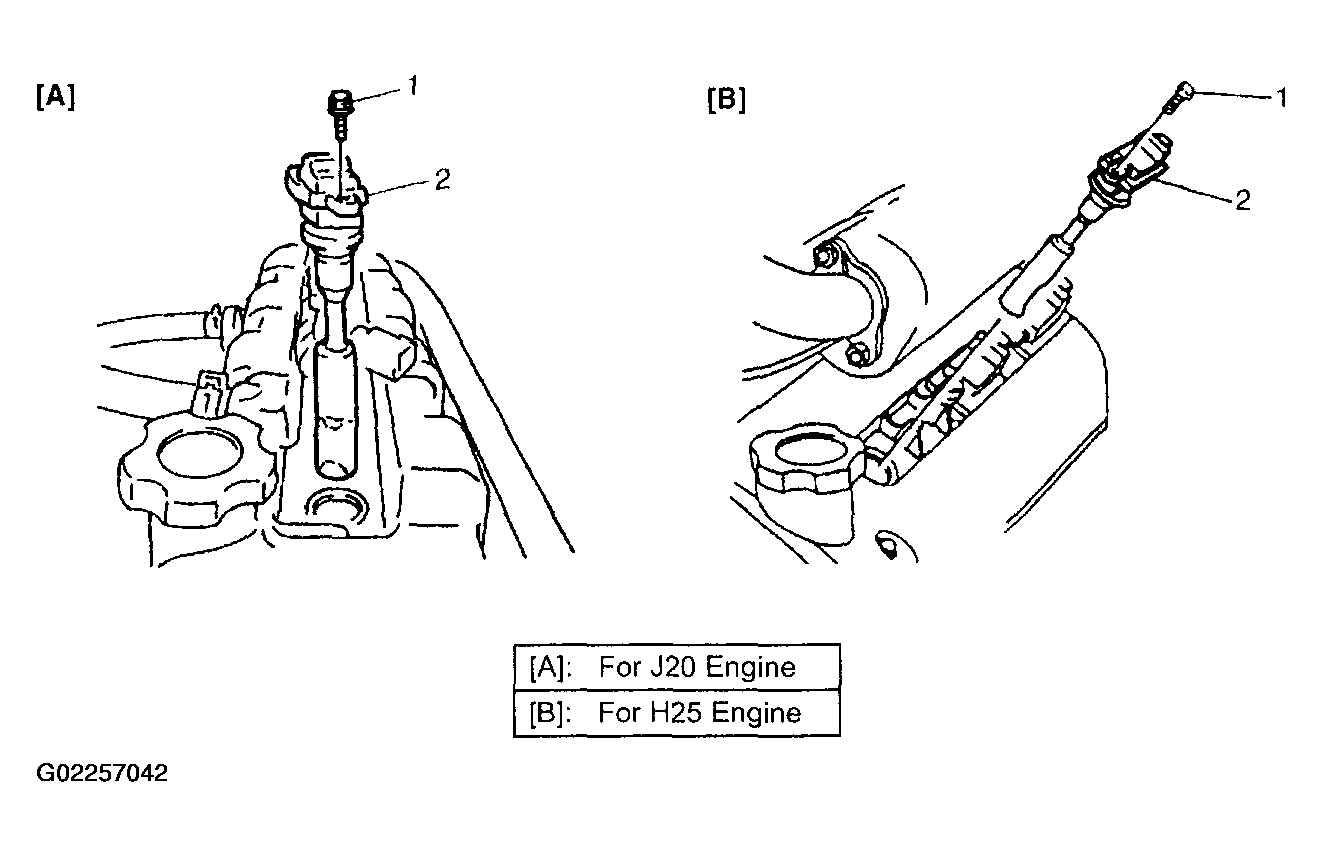

    Fig 1: Removing Ignition Coil Assembly
    G02257042Courtesy of SUZUKI OF AMERICA CORP.
