MIL Does Not Light at Ignition Switch ON and Engine Does Not Start though It Is Cranked Up: Troubleshooting

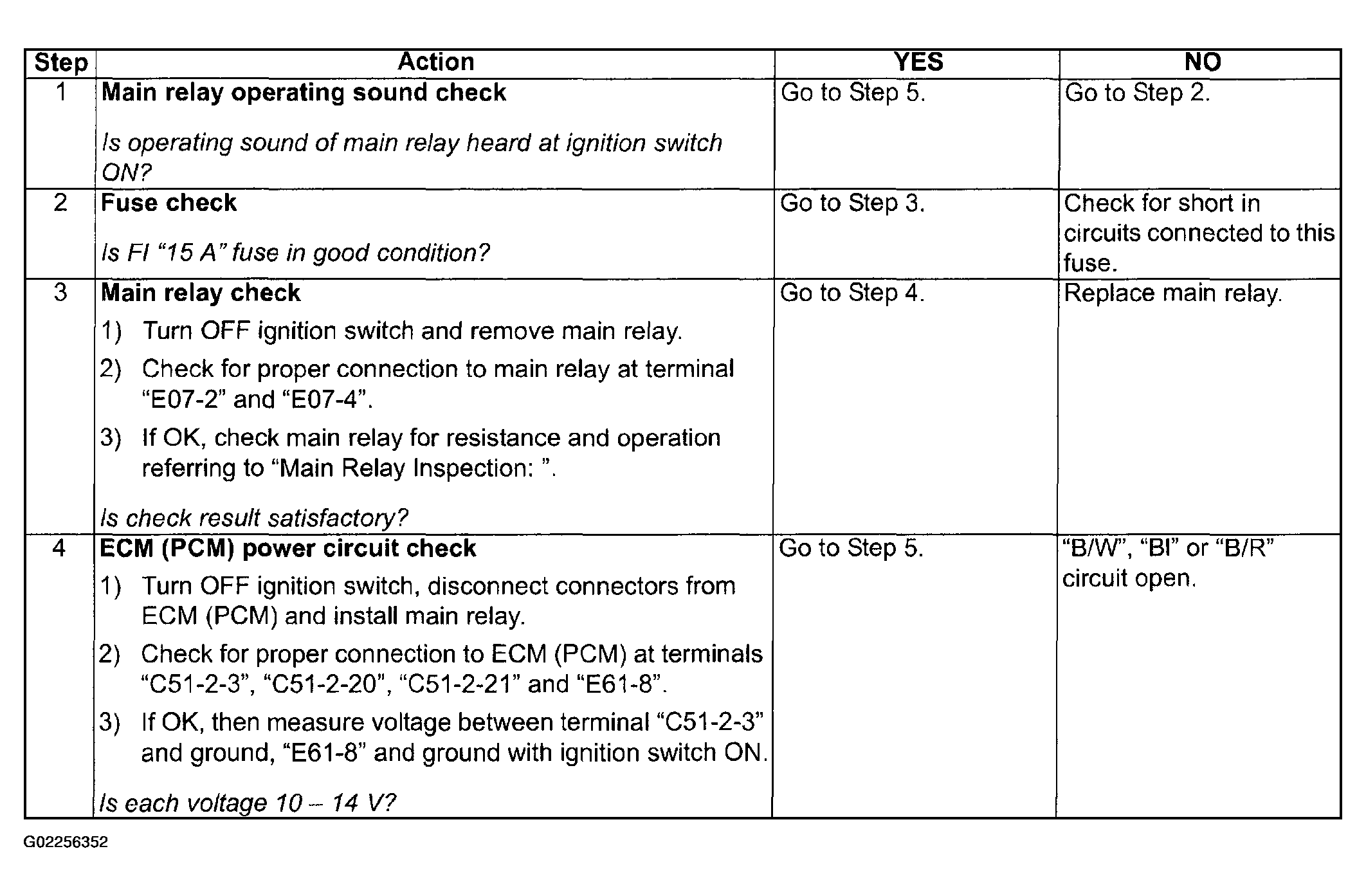

Fig 1: MIL Does Not Light At Ignition Switch On & Engine Does Not Start Though It Is Cranked Up Troubleshooting Chart (1 Of 2)
G02256352Courtesy of SUZUKI OF AMERICA CORP.

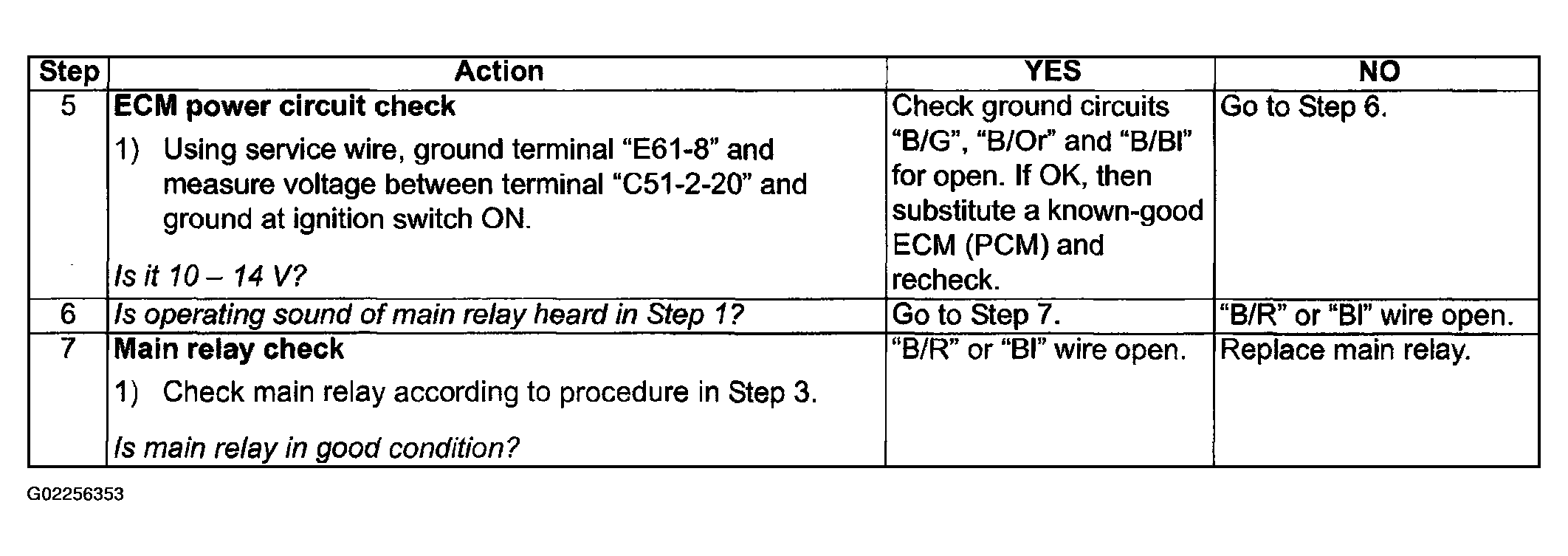

Fig 2: MIL Does Not Light At Ignition Switch On & Engine Does Not Start Though It Is Cranked Up Troubleshooting Chart (2 Of 2)
G02256353Courtesy of SUZUKI OF AMERICA CORP.
