DTC Troubleshooting

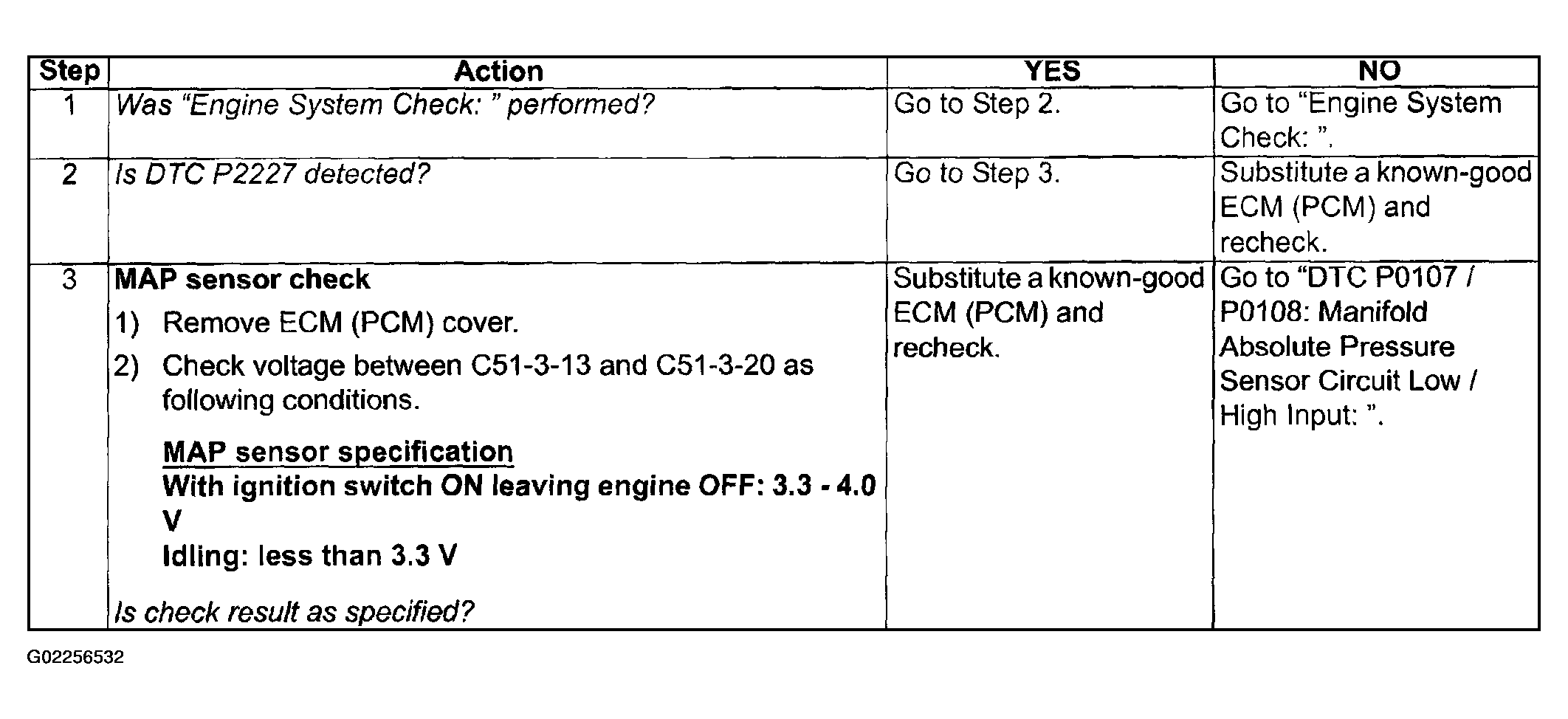

Fig 1: DTC P2227 / P2228 / P2229: Barometric Pressure Circuit Performance/Low/High Troubleshooting Chart
G02256532Courtesy of SUZUKI OF AMERICA CORP.
