DTC Troubleshooting

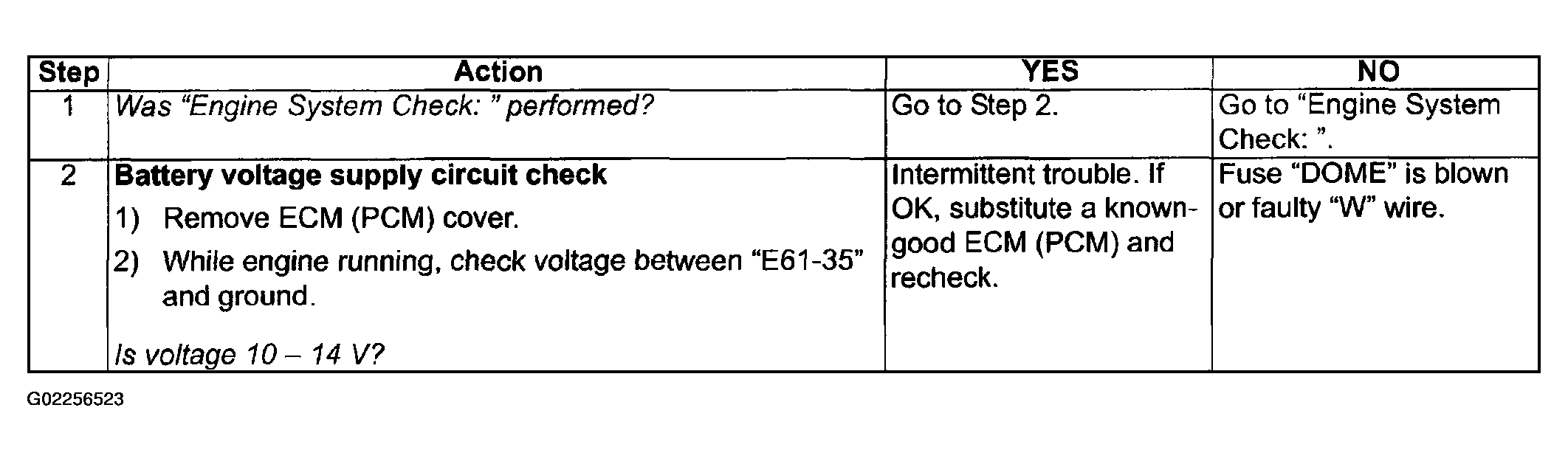

Fig 1: DTC P1510: ECM (PCM) Back-Up Power Supply Malfunction Troubleshooting Chart
G02256523Courtesy of SUZUKI OF AMERICA CORP.
