Home >> Suzuki >> 2004 >> Vitara RWD, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information & Diagnosis >> Diagnostic Information and Procedures >> DTC P0616, P0617: Starter Relay Circuit Low/High >> DTC Troubleshooting
April 5, 2026: LEMON Manuals is launched! Read the announcement.

DTC Troubleshooting

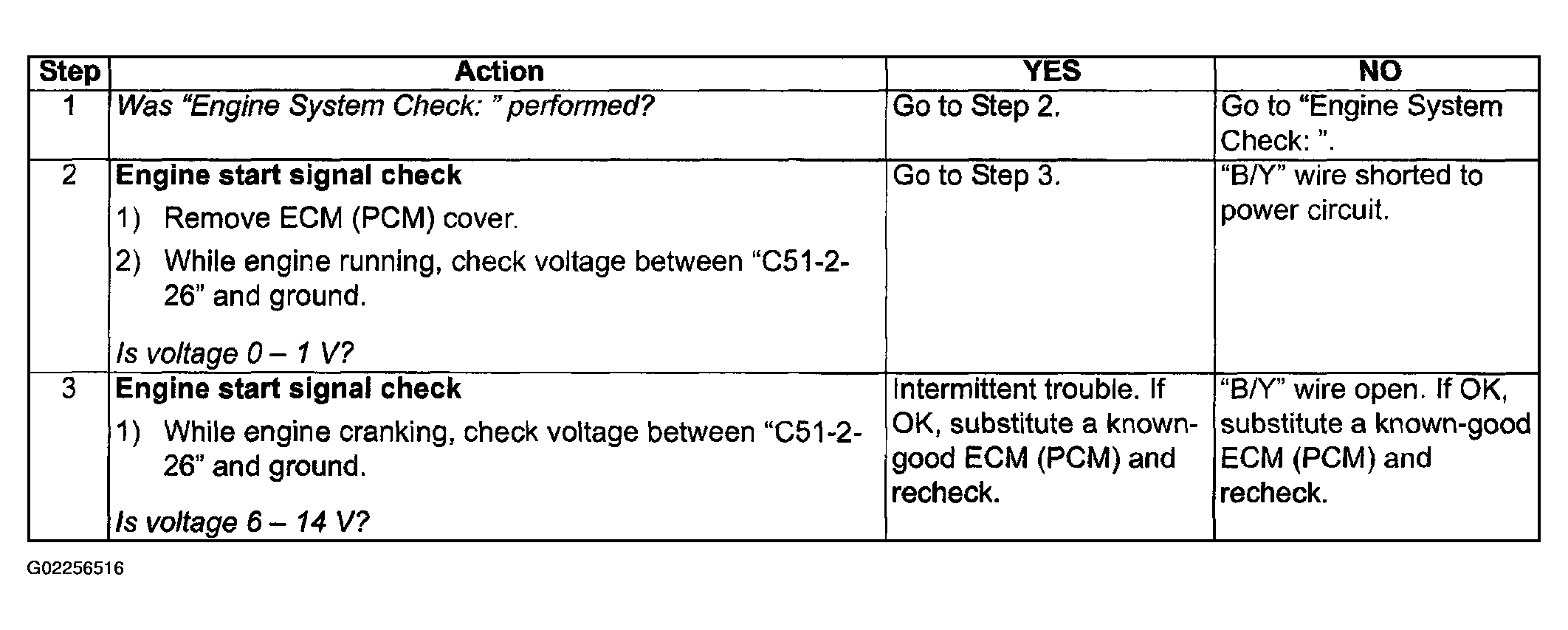

Fig 1: DTC P0616 / P0617: Starter Relay Circuit Low/High Troubleshooting Chart
G02256516Courtesy of SUZUKI OF AMERICA CORP.
