DTC P0500: Vehicle Speed Sensor (VSS) Malfunction: Wiring Diagram

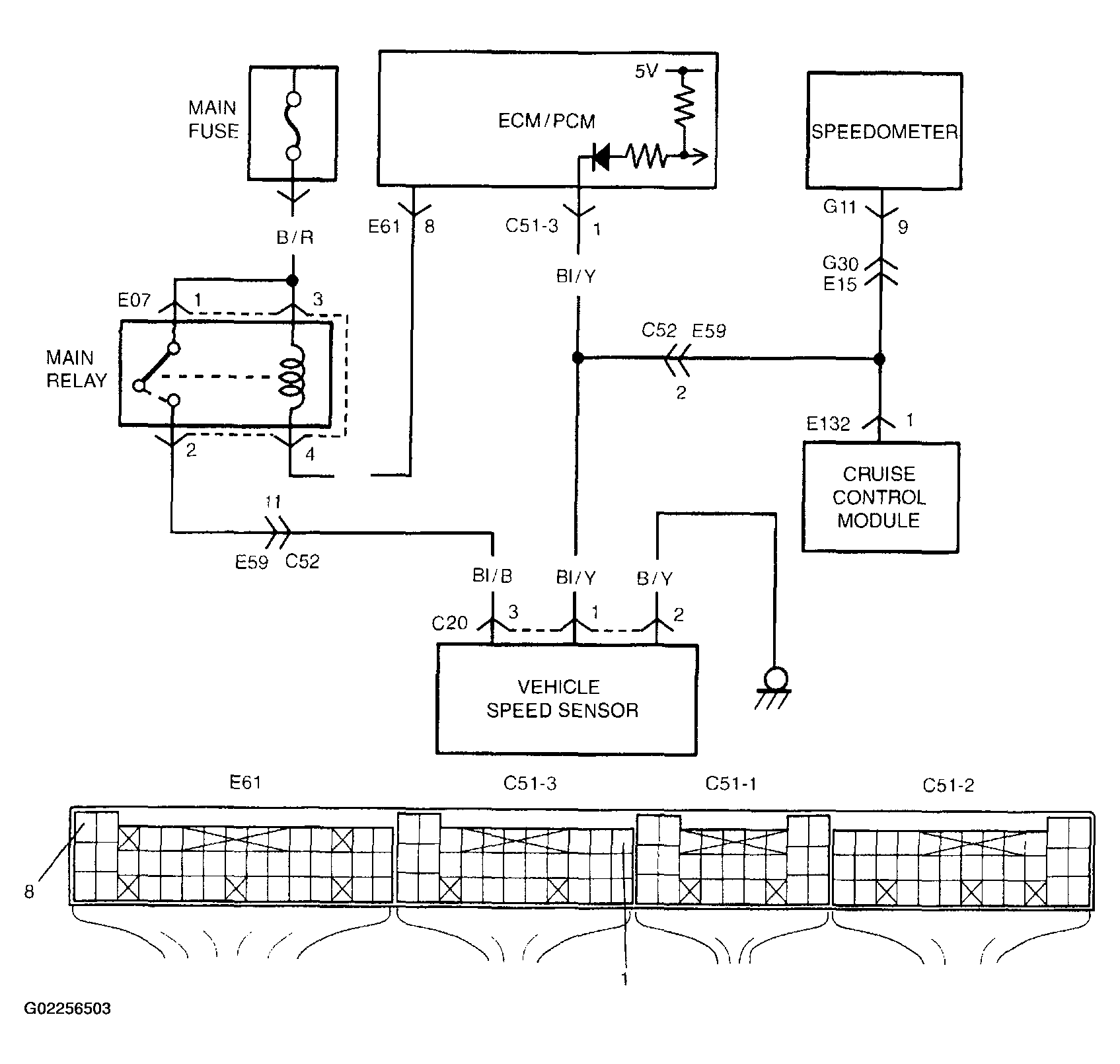

Fig 1: DTC P0500: Vehicle Speed Sensor (VSS) Malfunction Wiring Diagram
G02256503Courtesy of SUZUKI OF AMERICA CORP.
