System / Wiring Diagram

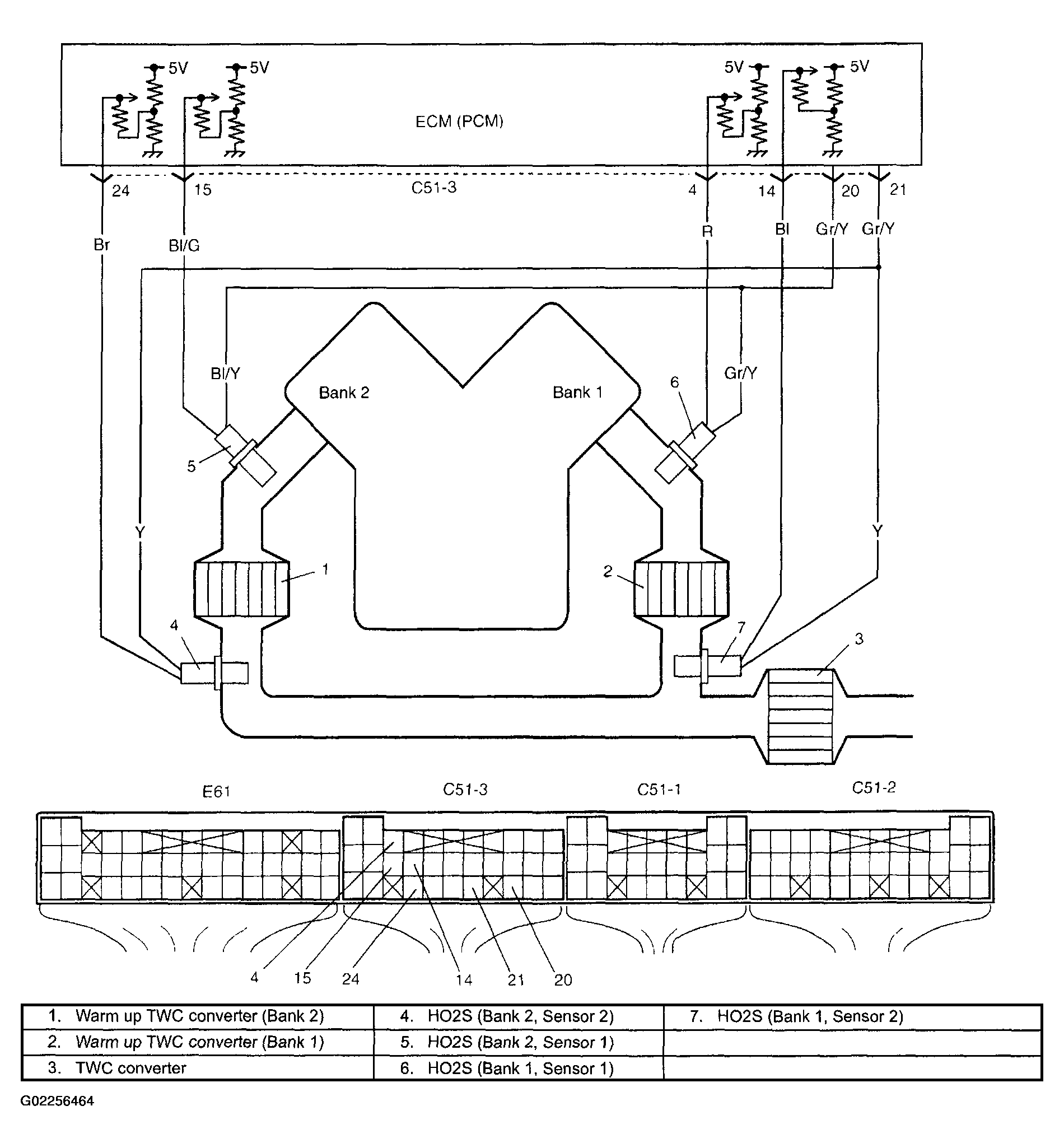

Fig 1: DTC P0420 / P0430: Catalyst System (Bank-1/-2) Efficiency Below Threshold System/Wiring Diagram
G02256464Courtesy of SUZUKI OF AMERICA CORP.
