DTC P0340: Camshaft Position (CMP) Sensor Circuit Malfunction: Wiring Diagram

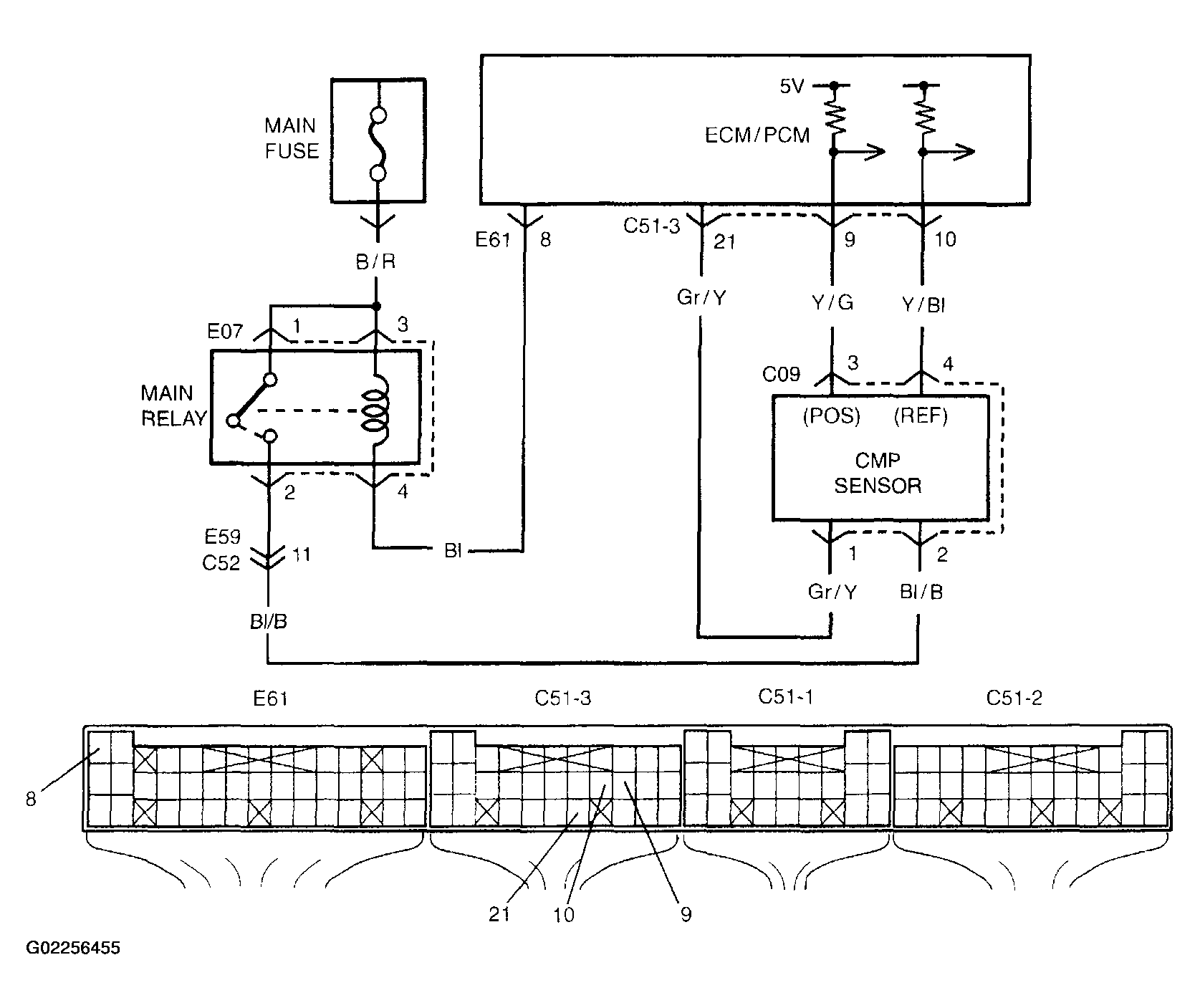

Fig 1: DTC P0340: Camshaft Position (CMP) Sensor Circuit Malfunction Wiring Diagram
G02256455Courtesy of SUZUKI OF AMERICA CORP.
