DTC P0153: HO2S (Bank-2 Sensor-1) Circuit Slow Response: Wiring Diagram

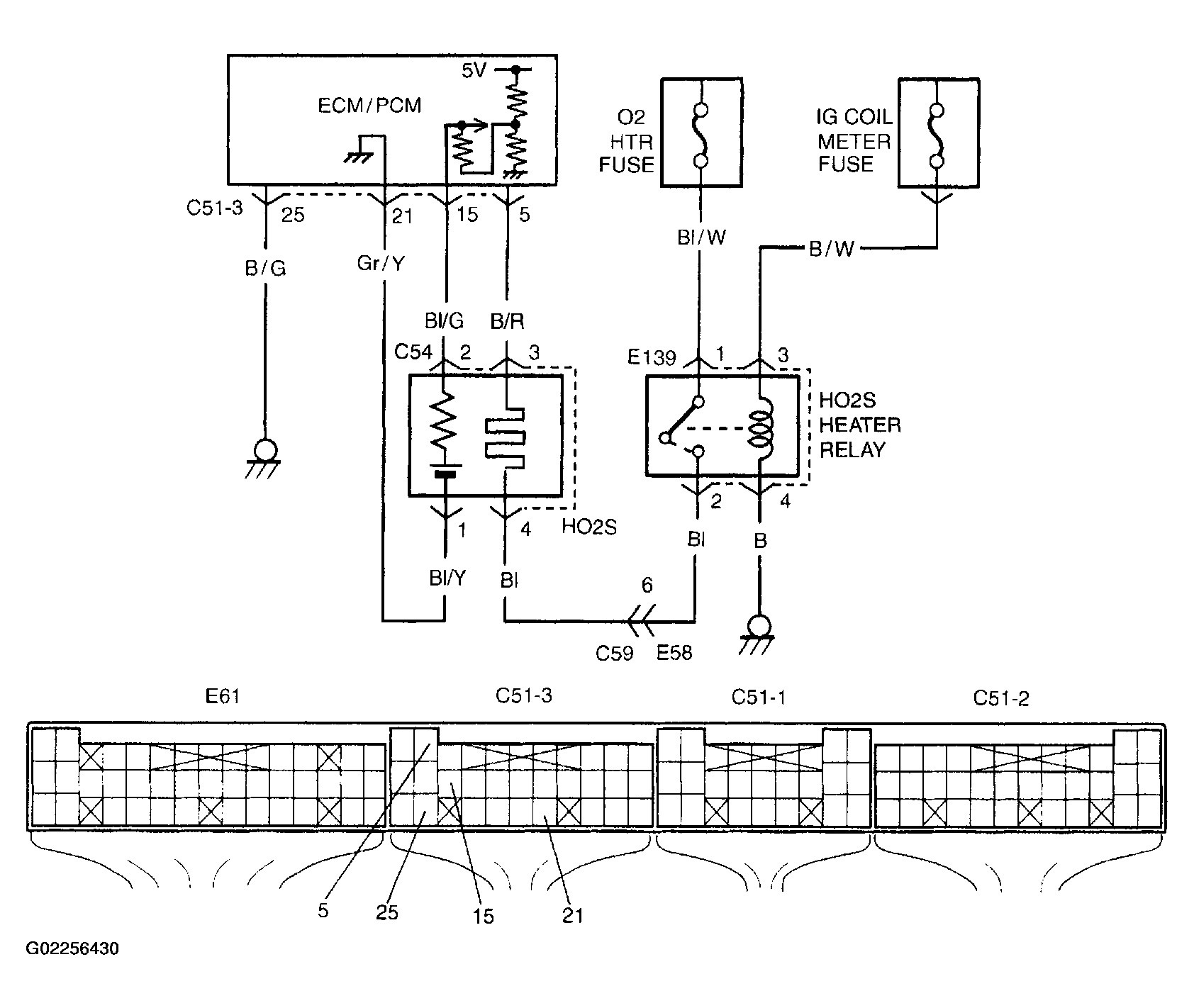

Fig 1: DTC P0153: Ho2S (Bank-2 Sensor-1) Circuit Slow Response Wiring Diagram
G02256430Courtesy of SUZUKI OF AMERICA CORP.
