DTC Troubleshooting

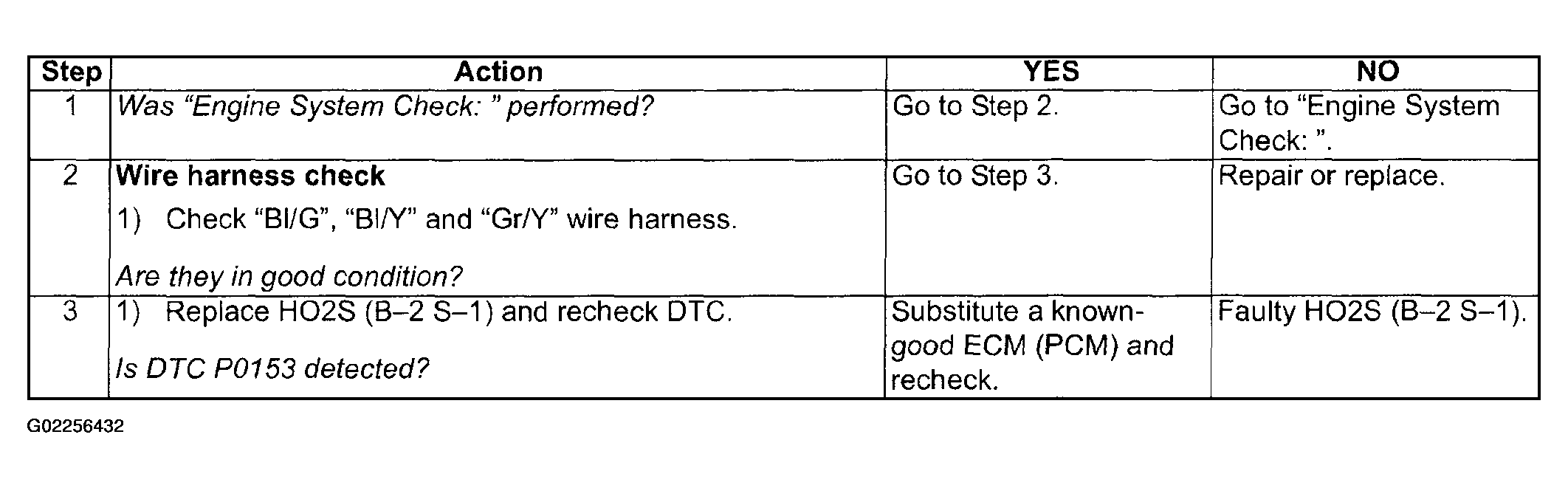

Fig 1: DTC P0153: Ho2S (Bank-2 Sensor-1) Circuit Slow Response Troubleshooting Chart
G02256432Courtesy of SUZUKI OF AMERICA CORP.
