DTC Troubleshooting

Fig 1: DTC P0141: HO2S (Bank-1 Sensor-2) Heater Circuit Malfunction Troubleshooting Chart (1 Of 2)
G02256422Courtesy of SUZUKI OF AMERICA CORP.

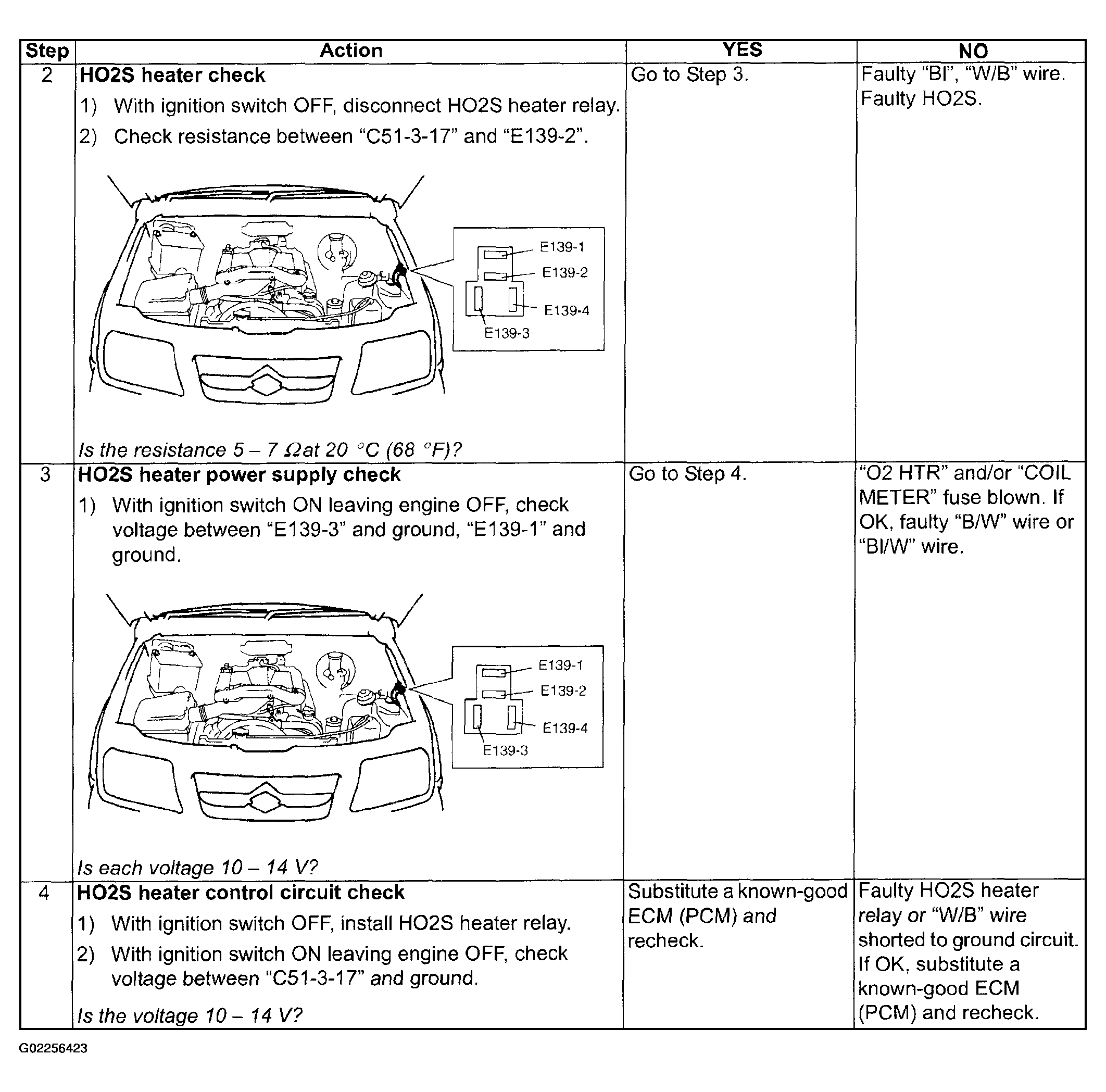

Fig 2: DTC P0141: HO2S (Bank-1 Sensor-2) Heater Circuit Malfunction Troubleshooting Chart (2 Of 2)
G02256423Courtesy of SUZUKI OF AMERICA CORP.
