Front Disc Brake Pad Removal and Installation: Installation

NOTE: See "BRAKES NOTE ".

Install pad clips (1) and pads (2).
NOTE: Install pad with sensor to body center side of caliper.

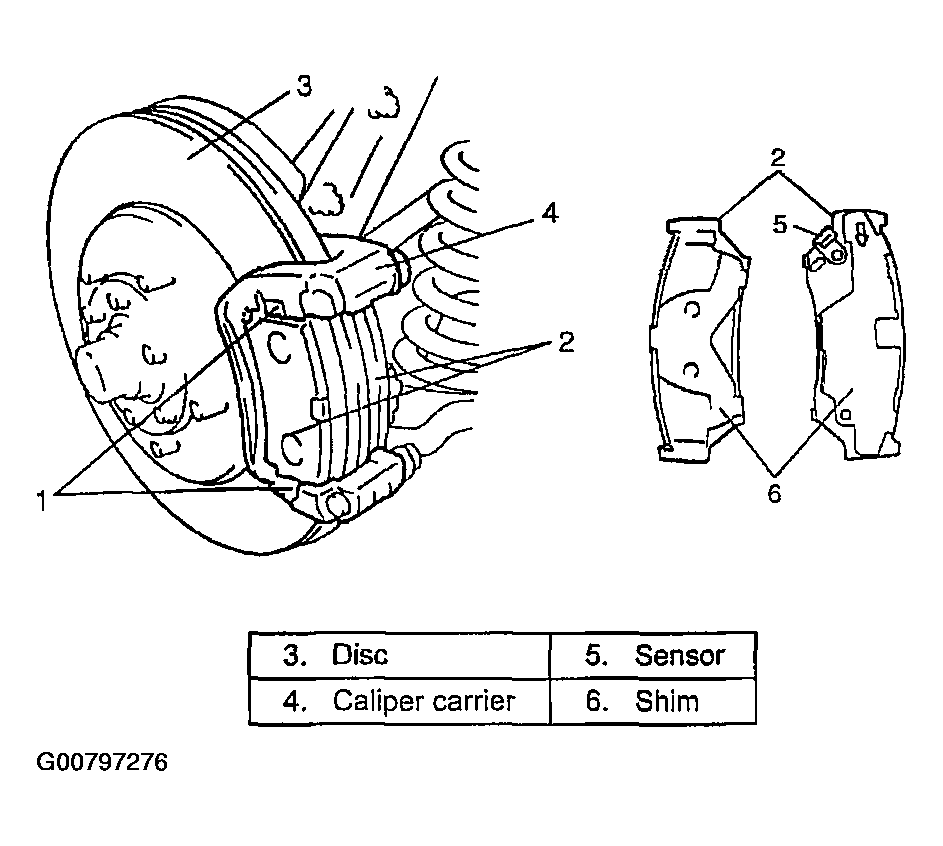

Fig 1: Installing Pad Clips And Pads
Courtesy of SUZUKI OF AMERICA CORP.
Install caliper and torque caliper (slide) pin bolts (1) to specification.
NOTE: Make sure that boots are fit into groove securely.

Tightening torque

Caliper pin bolt (c): 27 N.m (2.7 kg-m, 20.0 lb-ft)

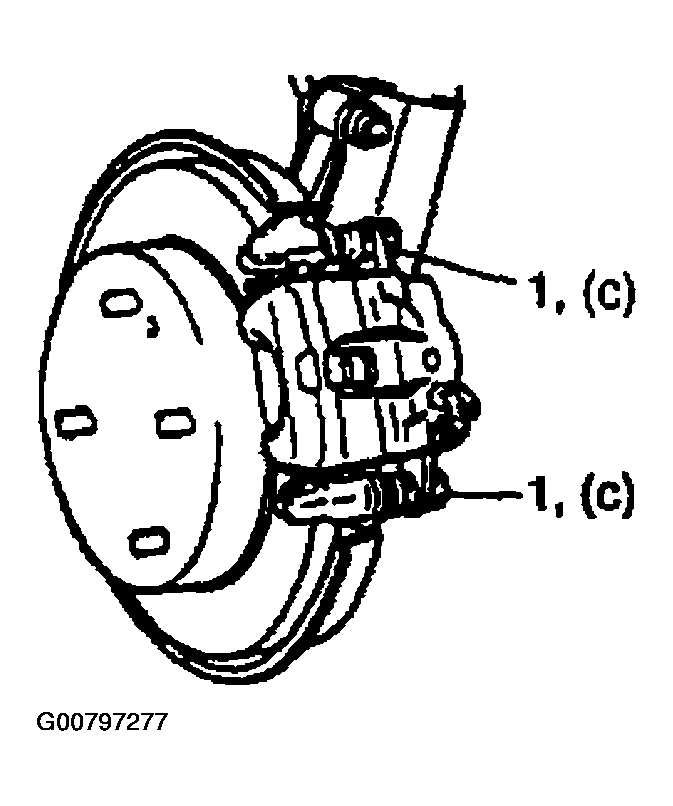

Fig 2: Tightening Caliper Pin Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Torque front wheel nuts to specification.
Tightening torque

Wheel nut (a): 100 N.m (10.0 kg-m, 72.5 lb-ft)

Fig 3: Tightening Front Wheel Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Upon completion of installation, perform brake test.
