Front Brake Disc Removal and Installation: Removal

  1. Hoist vehicle and remove wheel
  2. Remove caliper assembly (2) by loosening carrier bolts (1) (2 pcs).
    CAUTION: During removal, be careful not to damage brake flexible hose and not to depress brake pedal.

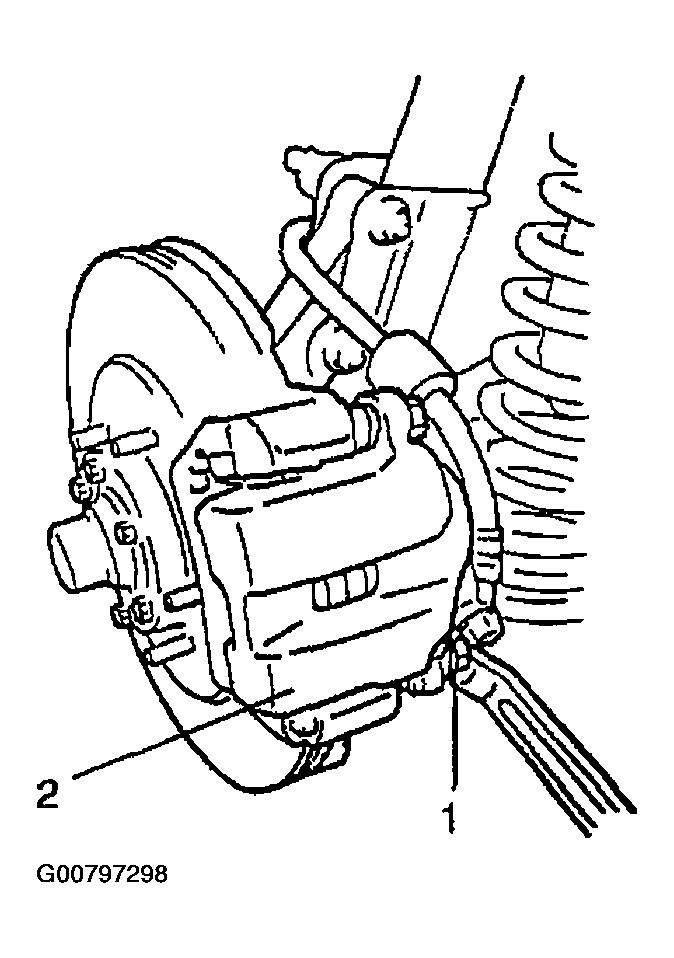

    Fig 1: Removing Caliper Assembly
    G00797298Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove disc by using 8 mm bolts (1) (2 pcs)
    Fig 2: Removing Disc Using Bolts
    G00797299Courtesy of SUZUKI OF AMERICA CORP.
