Tightening Torque Specifications

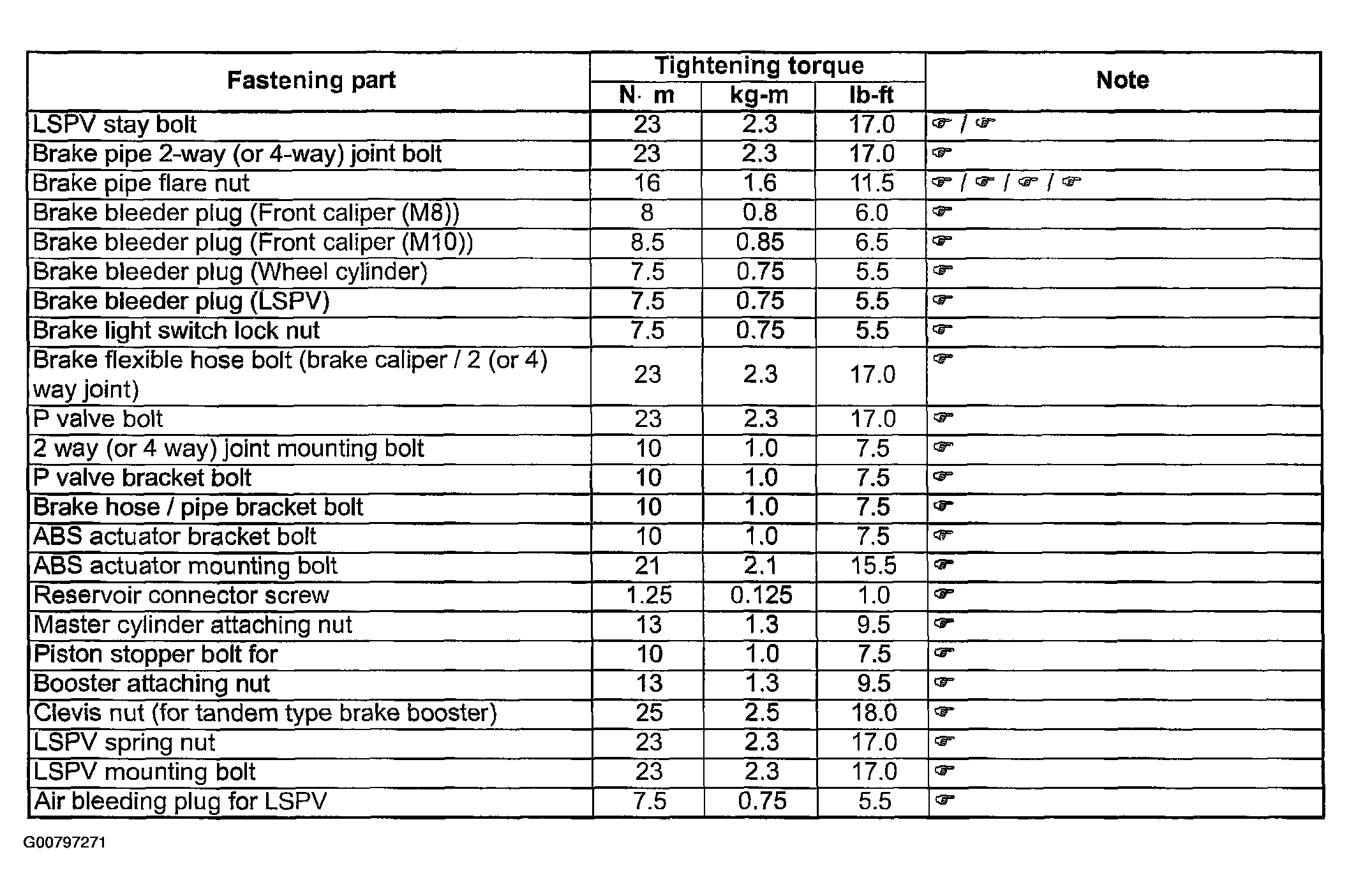

Fig 1: Tightening Torque Specifications Chart
G00797271Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The specified tightening torque is also described in the following.
Master Cylinder Assembly Components
Brake Booster Components
