Brake Pedal Free Height Adjustment
Remove foot rest and displace carpet and dash silencer(s) so as to measure brake pedal free height between pedal face and asphalt sheet installed on dash panel.
If the measurement is not within the specification, check the position of booster push rod clevis and/or brake light switch, referring to "Clearance Between Booster Piston Rod And Master Cylinder Piston Adjustment: " and Booster Push Rod Clevis Adjustment and/or Brake Light Switch Adjustment . The free height varies depending on installation position of booster push rod clevis and stop light switch.

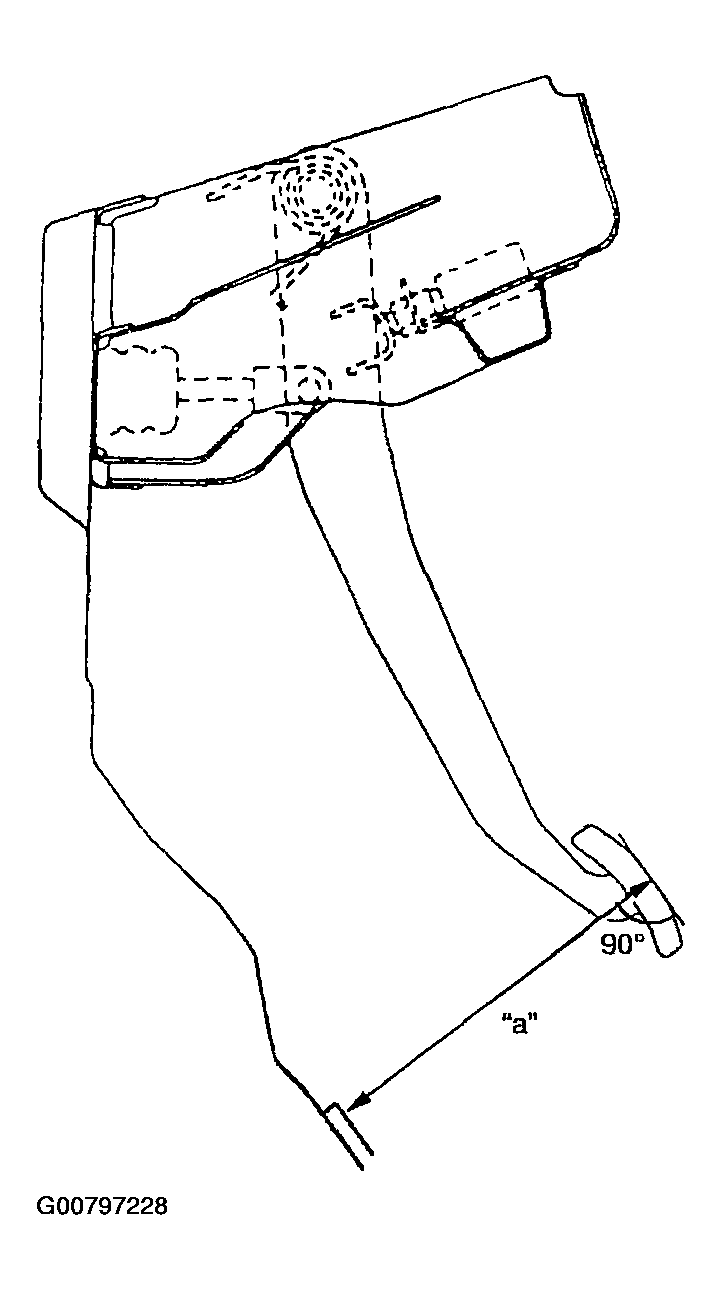

Brake pedal free height "a" from asphalt sheet
"a": 208-218 mm (8.19-8.58 in.)
