Brake Booster Removal and Installation: Installation

NOTE:

See "BRAKES NOTE ".
Check length of push rod clevis (2). Refer to "BOOSTER PUSH ROD CLEVIS ADJUSTMENT: ".
Before installing master cylinder, adjust booster piston rod. Refer to "CLEARANCE BETWEEN BOOSTER PISTON ROD AND MASTER CYLINDER PISTON ADJUSTMENT: ".
Apply silicone grease to master cylinder piston.

Install booster to dash panel as shown in the figure. Then connect booster push rod clevis (2) to pedal arm (3) with clevis pin (4) and clip (5).
Tighten booster attaching nuts (6) to the specified torque.
Tightening torque

Booster attaching nut (a): 13 N-m (1.3 kg-m, 9.5 lb-ft)

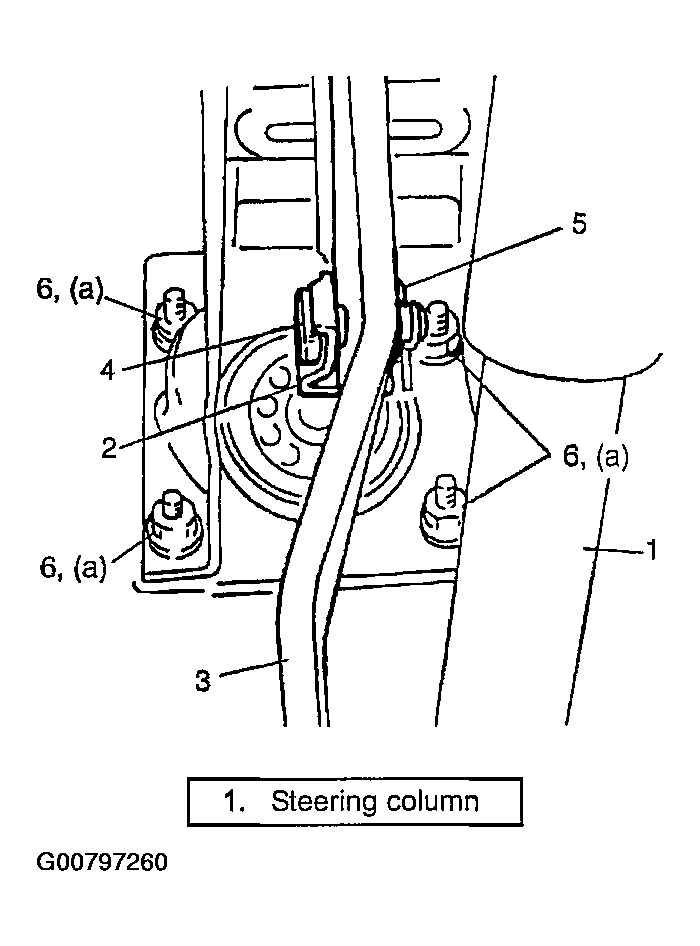

Fig 1: Tightening Booster Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Connect brake vacuum hose to brake booster.
Install master cylinder referring to "MASTER CYLINDER ASSEMBLY REMOVAL AND INSTALLATION: ".
After installing, check each part referring to "MASTER CYLINDER CHECK: ".
