Brake Symptom Diagnosis

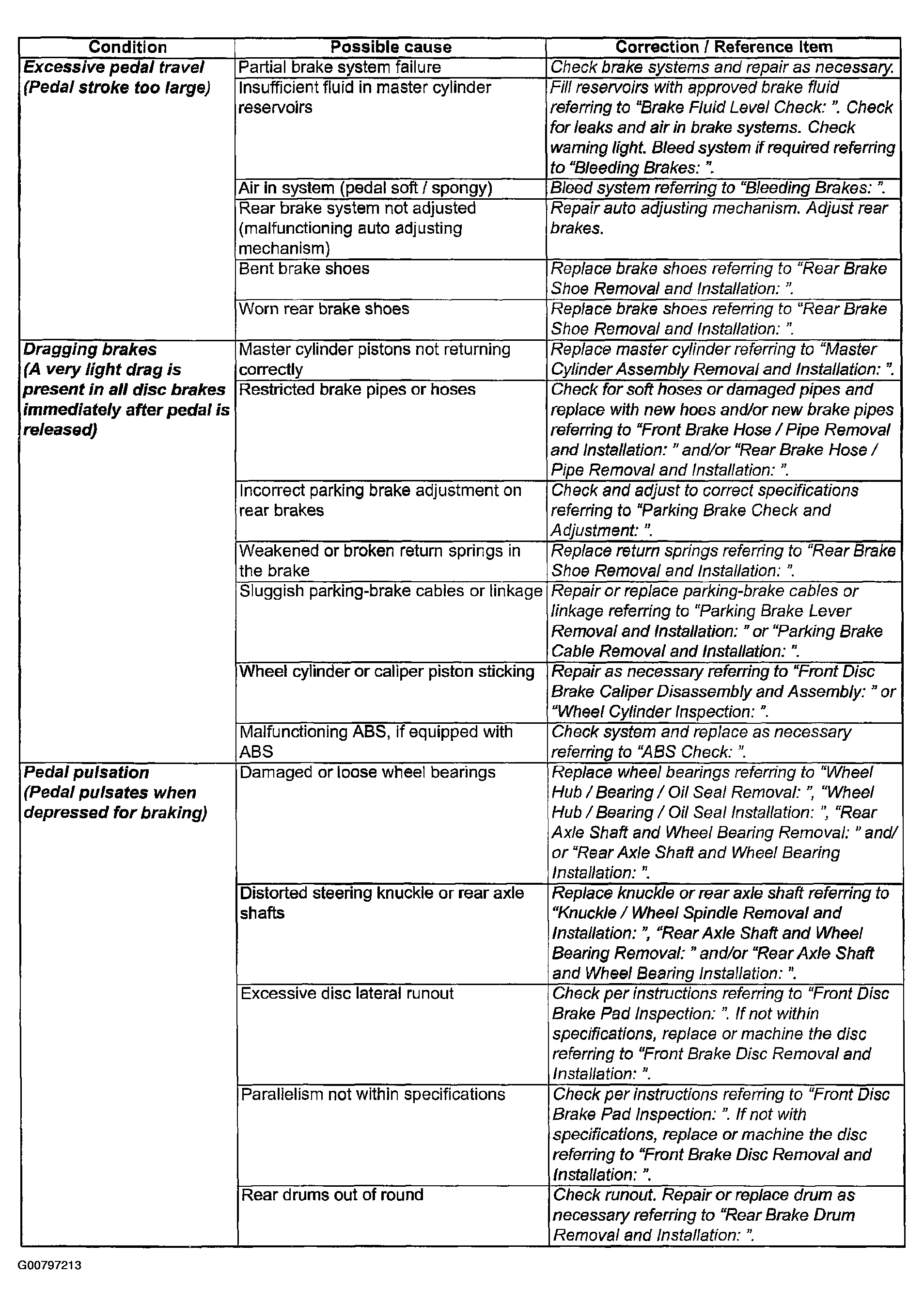

Fig 1: Brake Trouble Symptom Chart (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

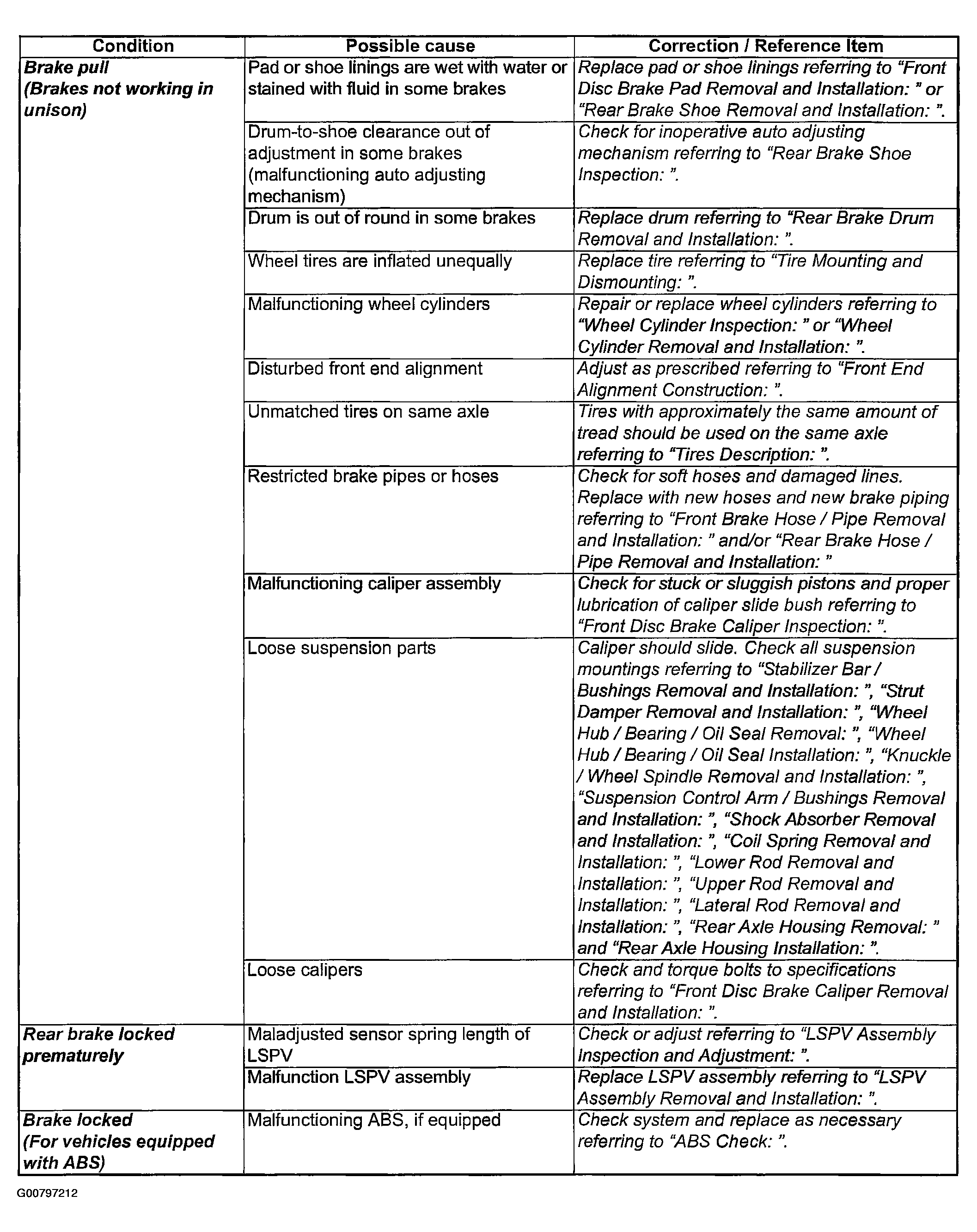

Fig 2: Brake Trouble Symptom Chart (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

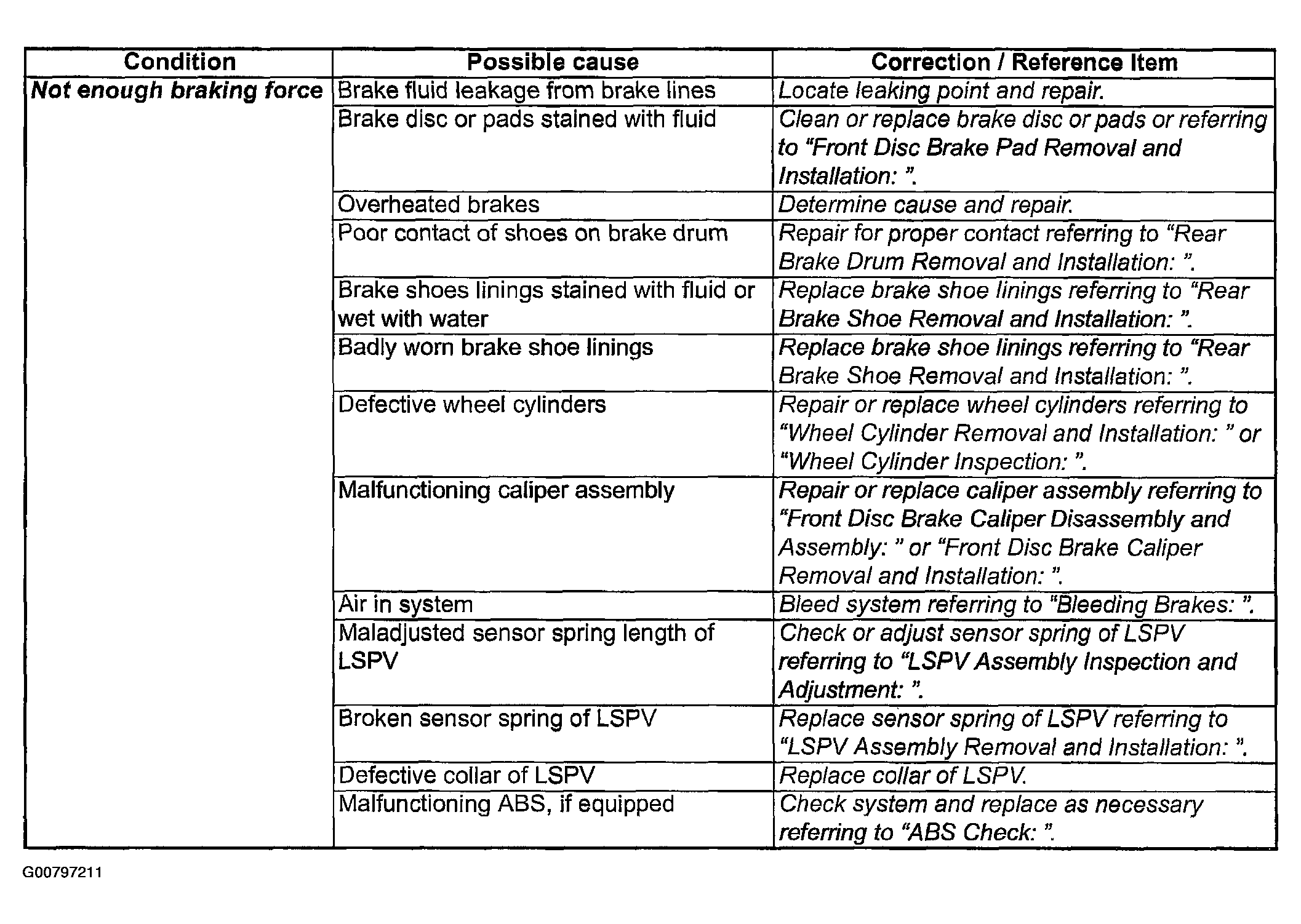

Fig 3: Brake Trouble Symptom Chart (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

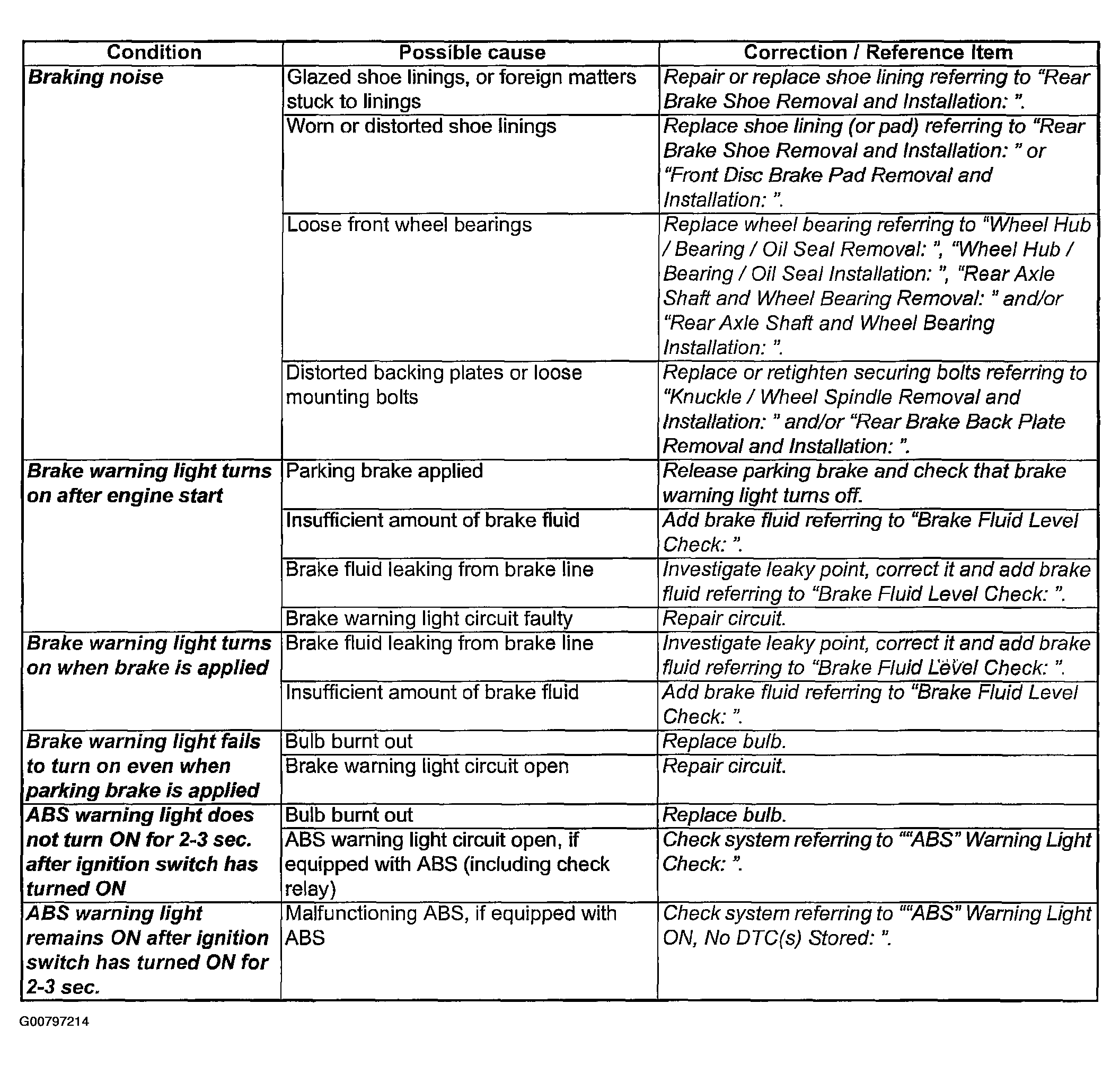

Fig 4: Brake Trouble Symptom Chart (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
