G Sensor Removal and Installation: Removal
- Turn ignition switch to OFF position and disconnect battery negative cable.
- Remove rear center console box.

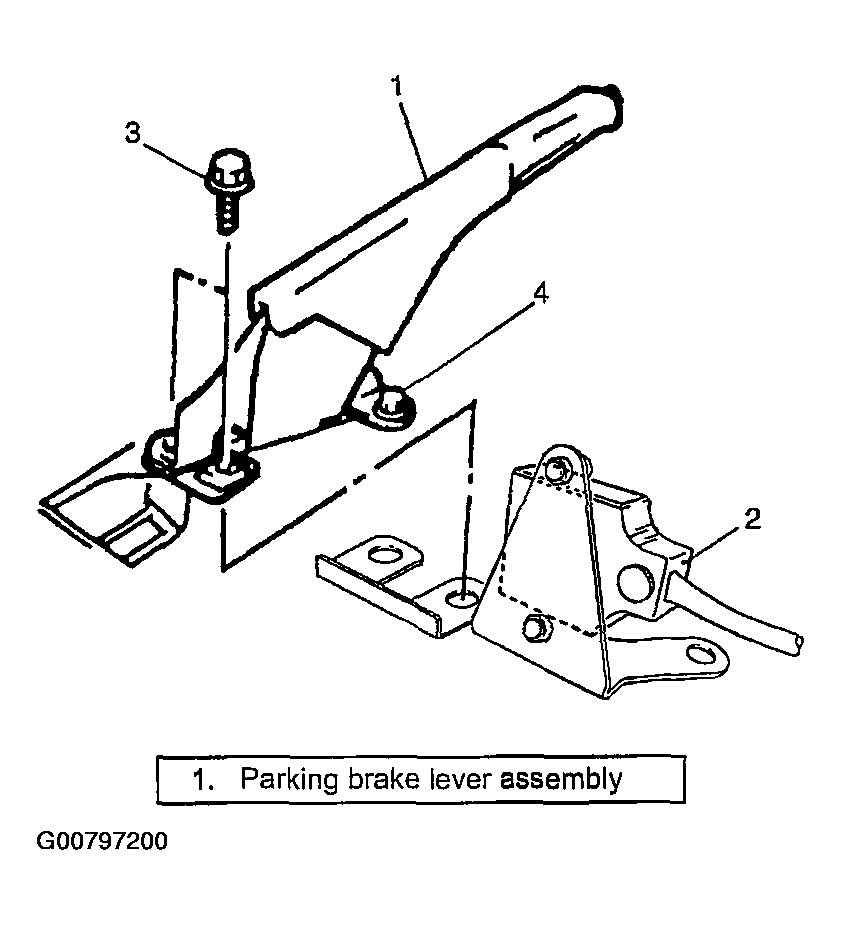

- Remove parking brake lever bolts (rear side) (3) and G sensor (2) with bracket from floor.NOTE: Loosen only bolt (front side) (4).
- Remove sensor (2) with bracket from floor.
- Disconnect connector from sensor (2).CAUTION:
- Do not separate sensor (2) and bracket. It will lead to erroneous assembly.
- Sensor must not be dropped or shocked. It will affect its original performance.
