EBCM Input / Output Signal Description

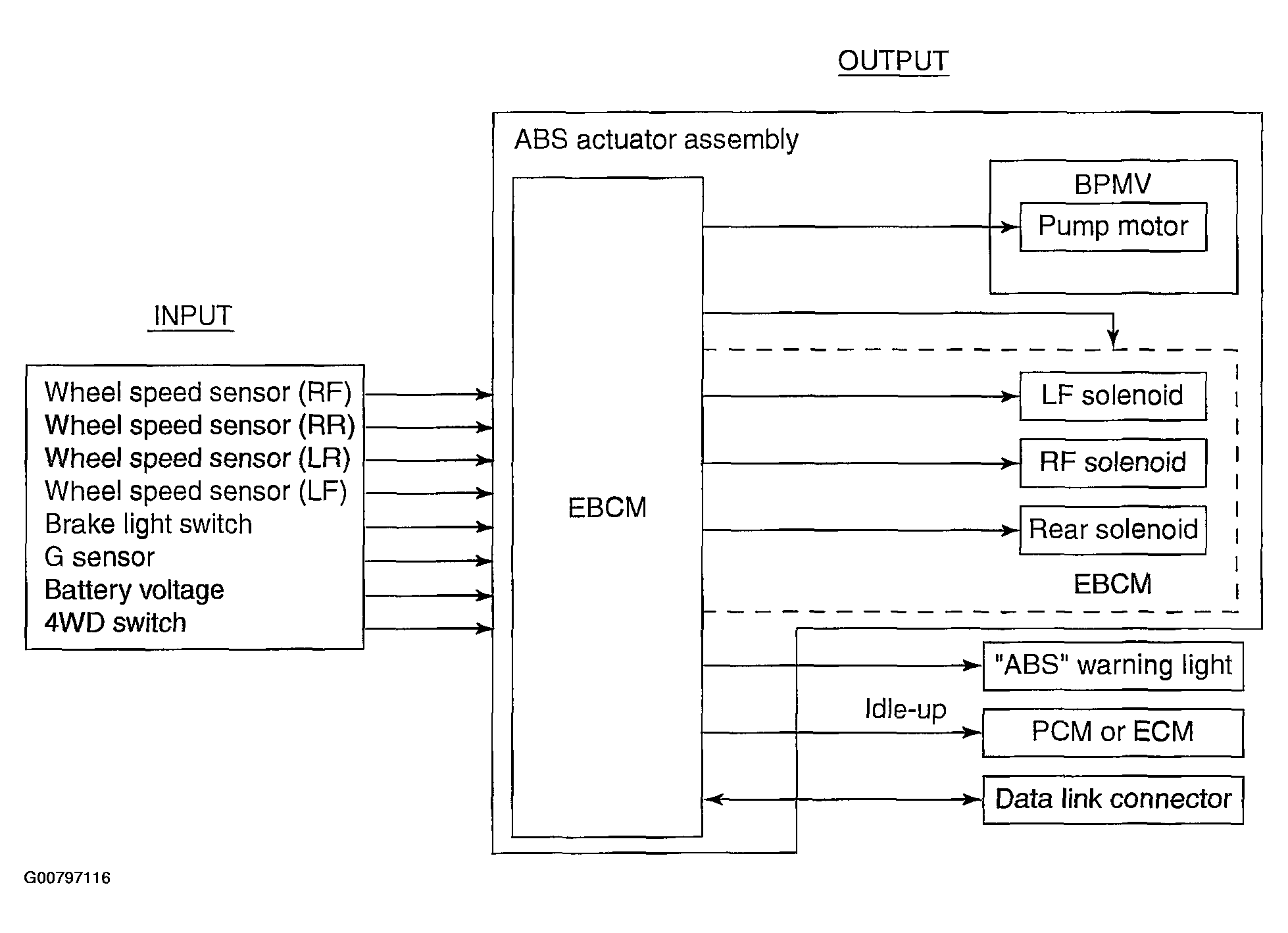

Fig 1: EBCM Input / Output Signal Description Flow Chart
G00797116Courtesy of SUZUKI OF AMERICA CORP.
