Diagnostic Trouble Codes Table

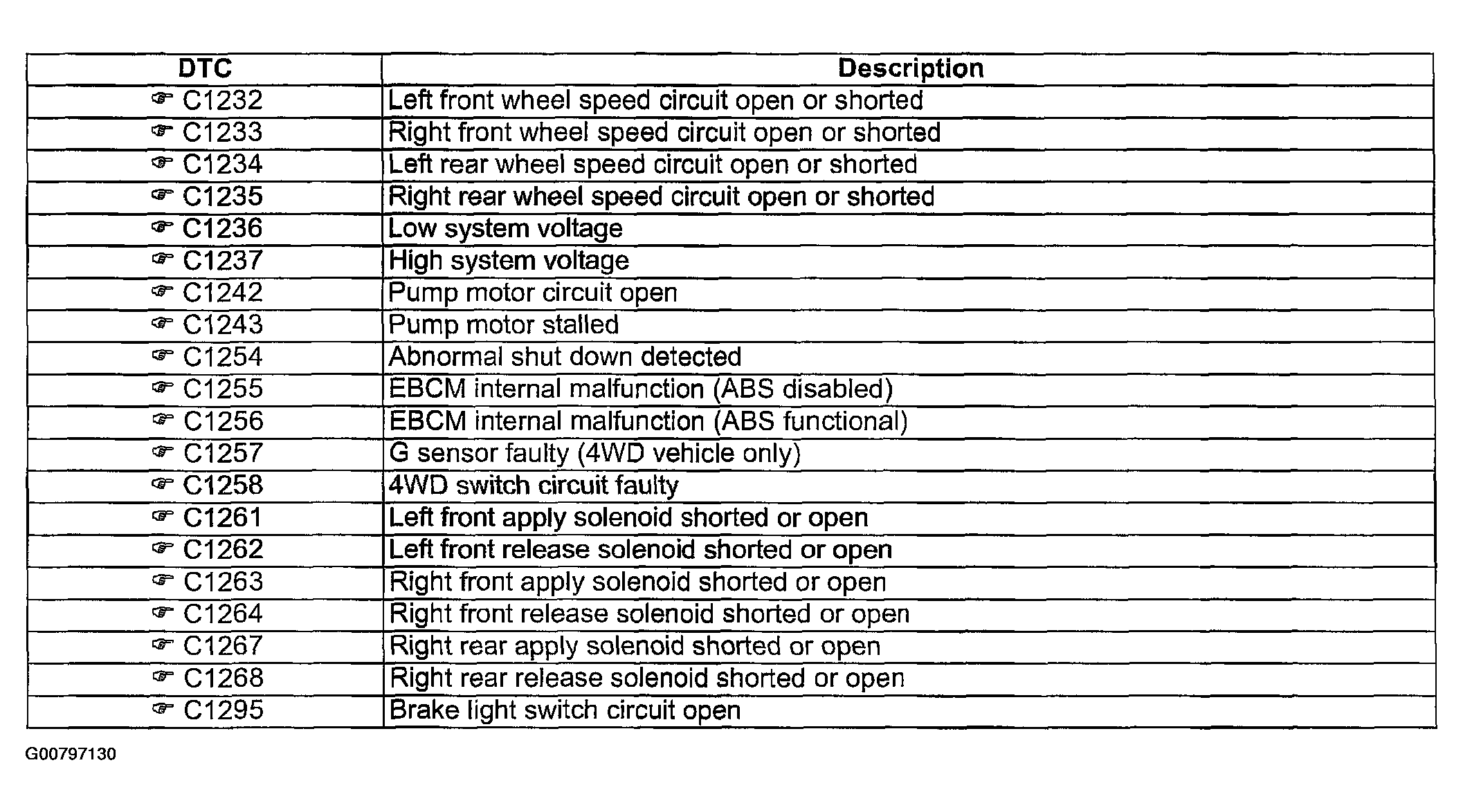

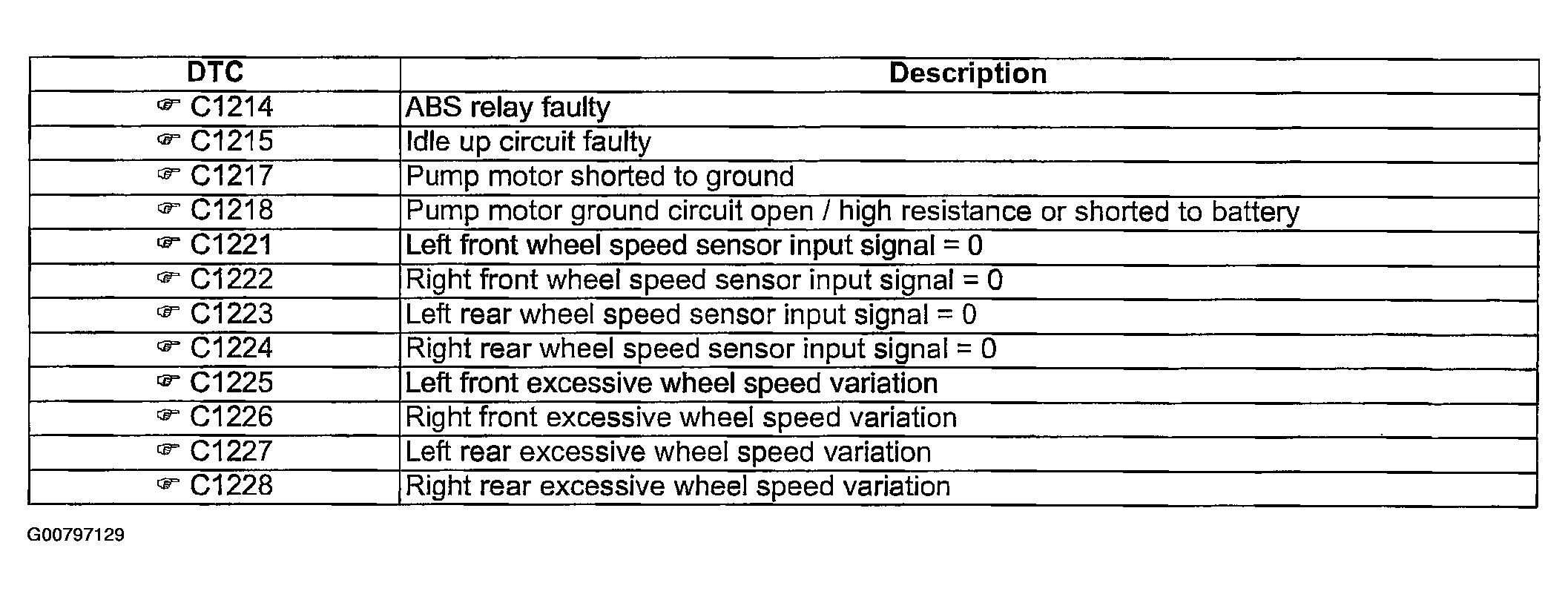

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C1214 | ABS Relay Faulty |
| DTC C1215 | Idle Up Circuit Faulty |
| DTC C1217, C1242 | Pump Motor Circuit Shorted to Ground/Open |
| DTC C1218, C1243 | Pump Motor Ground Circuit Open, High Resistance or Shorted to Battery/Pump Motor Stalled |
| DTC C1221, C1222, C1223, C1224 | Wheel Speed Sensor Input Signal = 0 |
| DTC C1225, C1226, C1227, C1228 | Excessive Wheel Speed Variation |
| DTC C1232, C1233, C1234, C1235 | Wheel Speed Sensor Circuit Open or Shorted |
| DTC C1236, C1254 | Low System Voltage & Abnormal Shutdown Detected |
| DTC C1237 | High System Voltage |
| DTC C1255, C1256 | EBCM Internal Malfunction (ABS Disabled/Functional) |
| DTC C1257 | G Sensor Faulty (For 4WD Vehicle) |
| DTC C1258 | 4WD Switch Circuit Faulty |
| DTC C1261, C1262, C1263, C1264, C1267, C1268 | Apply or Release Solenoid Shorted or Open |
| DTC C1295 | Brake Light Switch Circuit Open |
