Diagnostic Trouble Codes Check

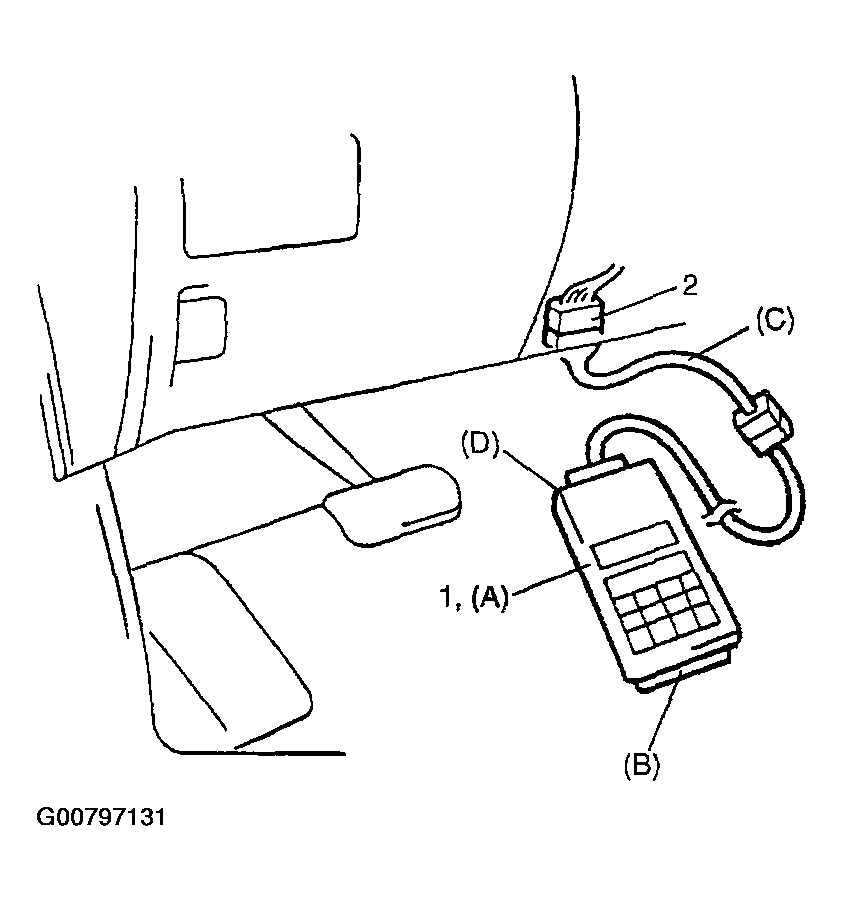

- After setting cartridge to SUZUKI scan tool (1), connect SUZUKI scan tool (1) to data link connector (2).
Special tool
(A): 09931-76011 (SUZUKI scan tool)
(B): Mass storage cartridge for Tech 1
(C): 09931-76030 (16/14 pin DLC adaptor)
(D): 09932-66530 (Interface cartridge)
- Turn ignition switch to ON position.
- Read DTC according to instructions displayed on SUZUKI scan tool and print it or write it down. Refer to SUZUKI scan tool operator's manual for further details .
- After completing the check, turn ignition switch off and disconnect SUZUKI scan tool from DLC.
