Sliding Roof Motor Inspection

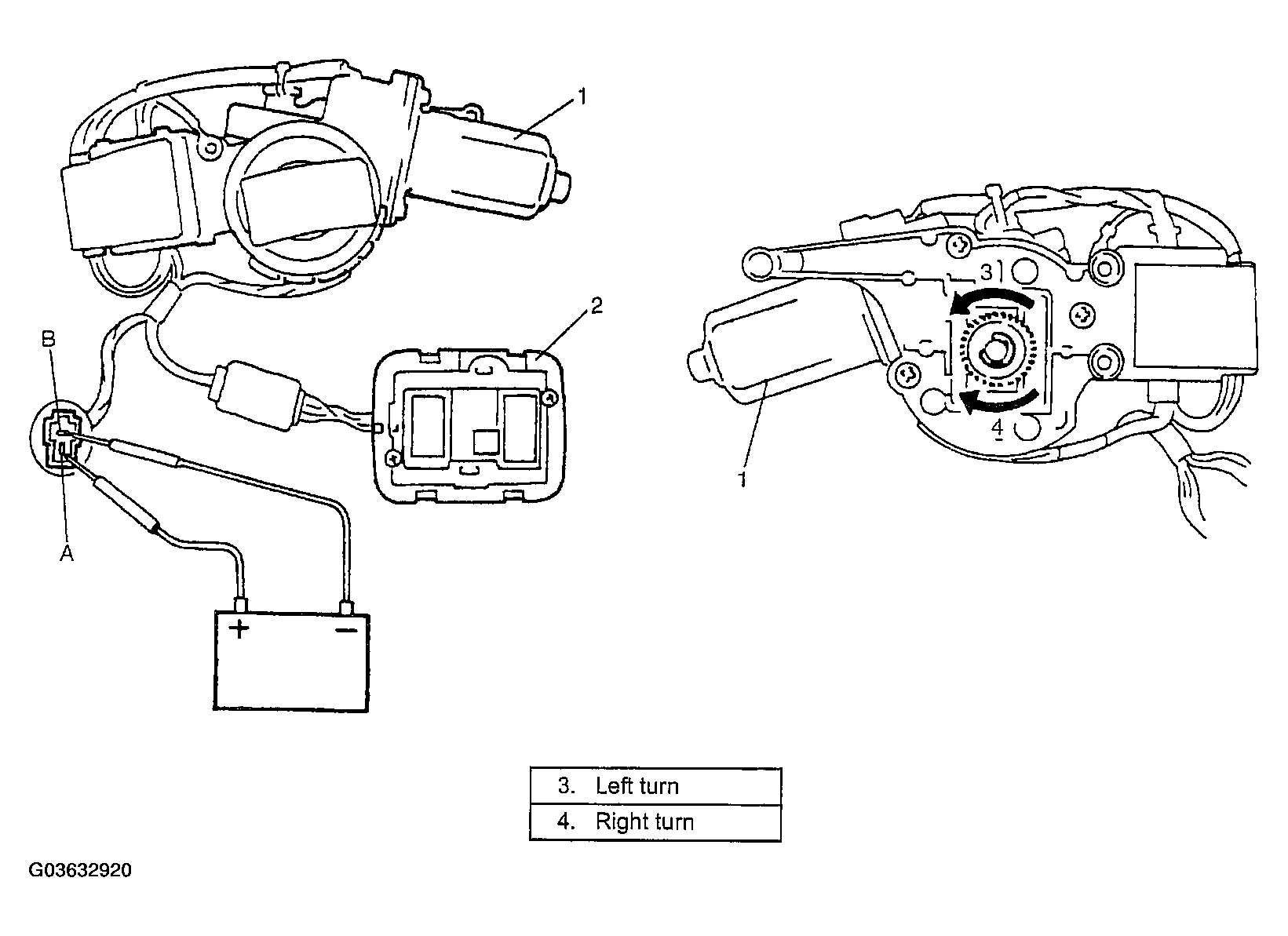

- Remove head lining. Refer to HEAD LINING REMOVAL AND INSTALLATION . Remove sliding roof motor assembly (1).
- Connect known-good sliding roof switch (2) to sliding roof motor assembly.
- Connect 12 V battery positive terminal to terminal "A" of motor assembly (1) and battery negative terminal to terminal "B" of motor assembly (1).
- Check that the sliding roof motor (1) runs according to the movement of the sliding roof switch (2). If motor does not operate as above, replace sliding roof motor assembly (1).
Sliding roof motor specification
SLIDING ROOF MOTOR SPECIFICATIONSliding roof switch Motor Tilt up turn left Tilt down turn right Slide open turn right Slide close turn left
