Front Floor Carpet Removal And Installation: Removal

Remove front seats and rear seat cushions.
Remove seat belt lower anchor bolt.
Remove dash side trims (1), front side sill scuffs (2), center pillar inner lower rims (3), rear side sill scuffs (4), and rear quarter lower trim (6).

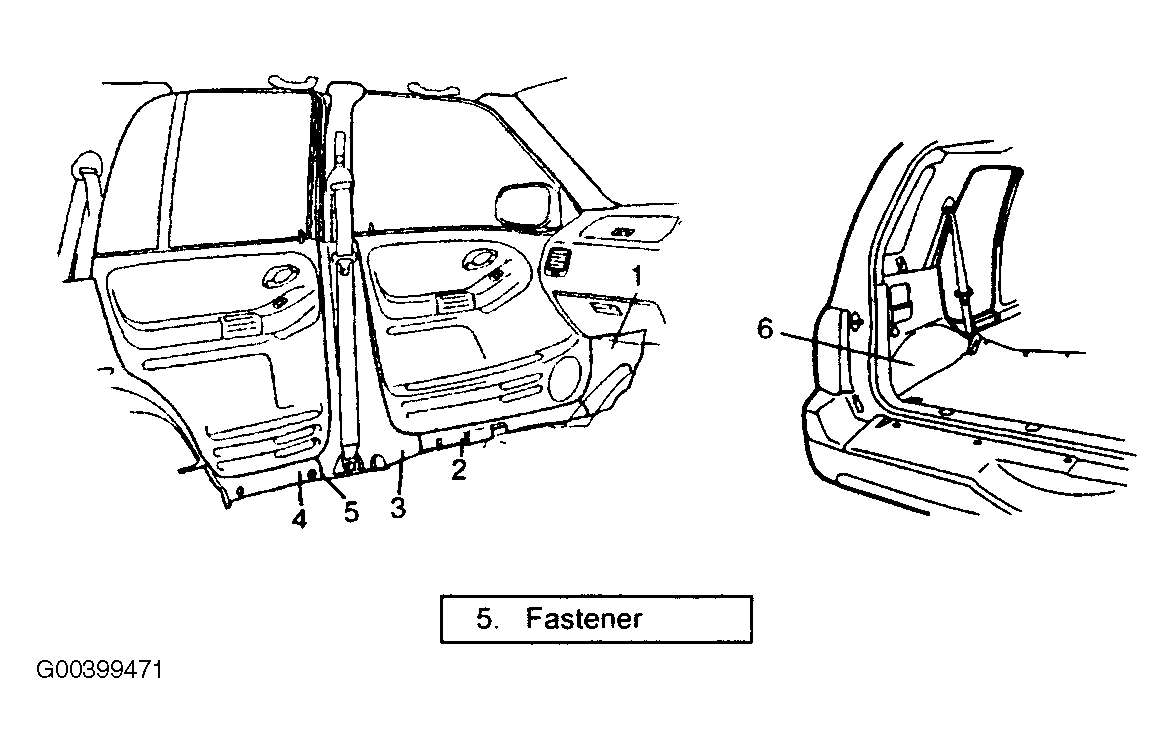

Fig 1: Removing Components To Remove Front Floor Carpet
Courtesy of SUZUKI OF AMERICA CORP.
Remove parking brake lever cover, console box and console box front extension.
Remove front floor carpet.
