Power Door Lock Switch Inspection

Inspect continuity at terminals according to the door lock switch action.

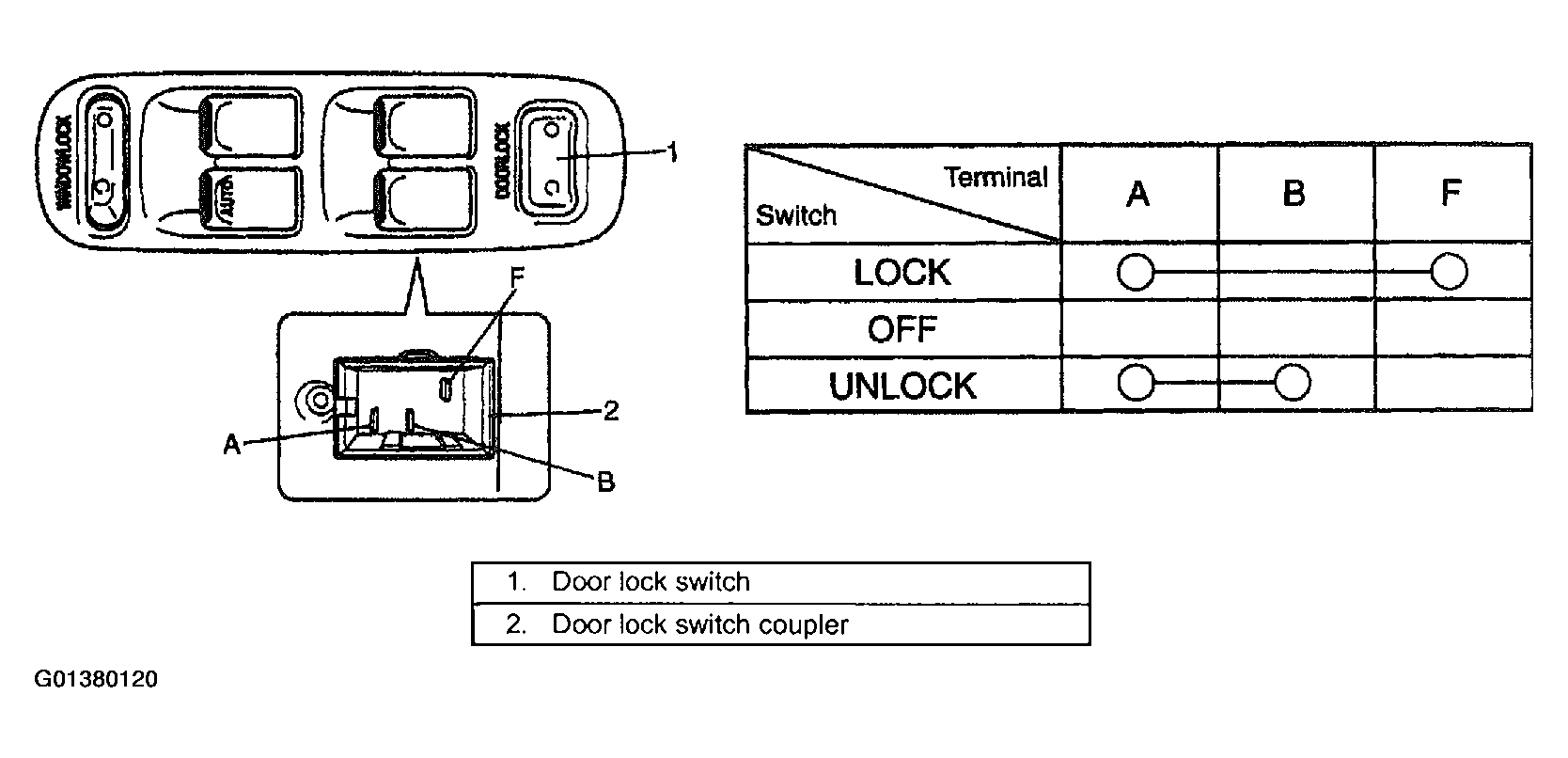

Fig 1: Checking Power Door Lock Switch
G01380120Courtesy of SUZUKI OF AMERICA CORP.
