Front Door Lock Assembly Removal And Installation: Removal

Raise window all the way up.
Remove door trim and door sealing cover referring to Steps 1) to 7) of REMOVAL in Front Door Glass Removal And Installation.
Remove door opening control rods (2). Unlock door lock rod pin retainer (1) and disconnect control rod (2).
Remove door lock control rod (3).

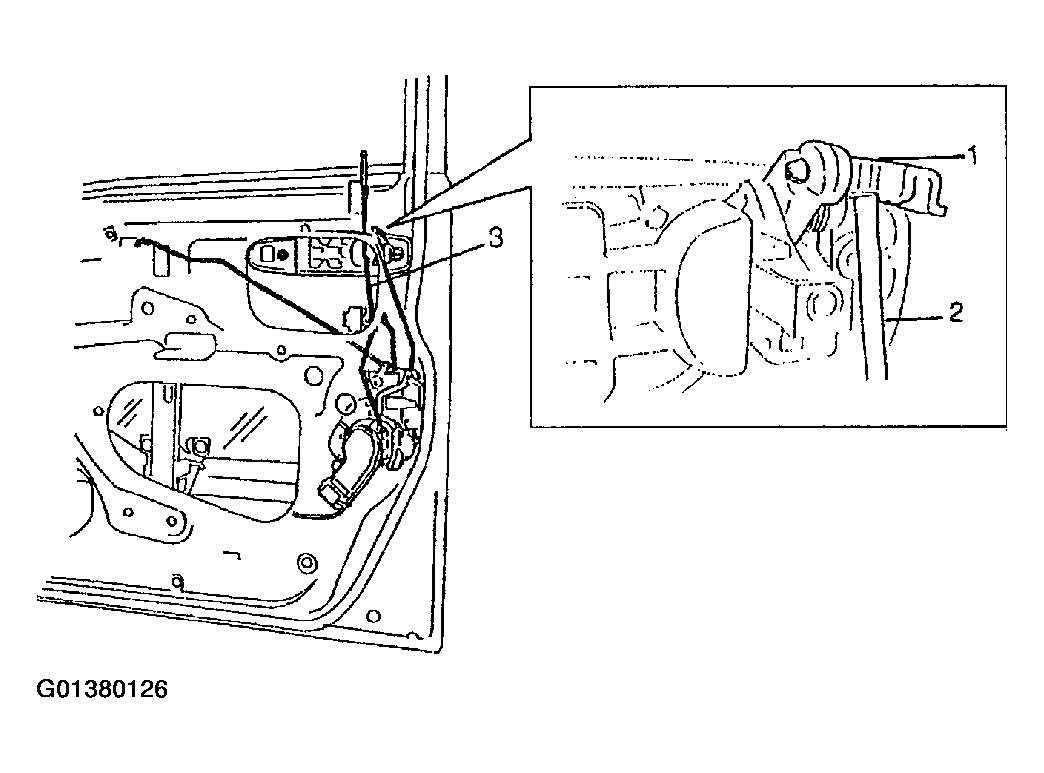

Fig 1: Removing Door Lock Control Rods
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect door lock motor lead wire (if equipped).
Remove lock assembly.
